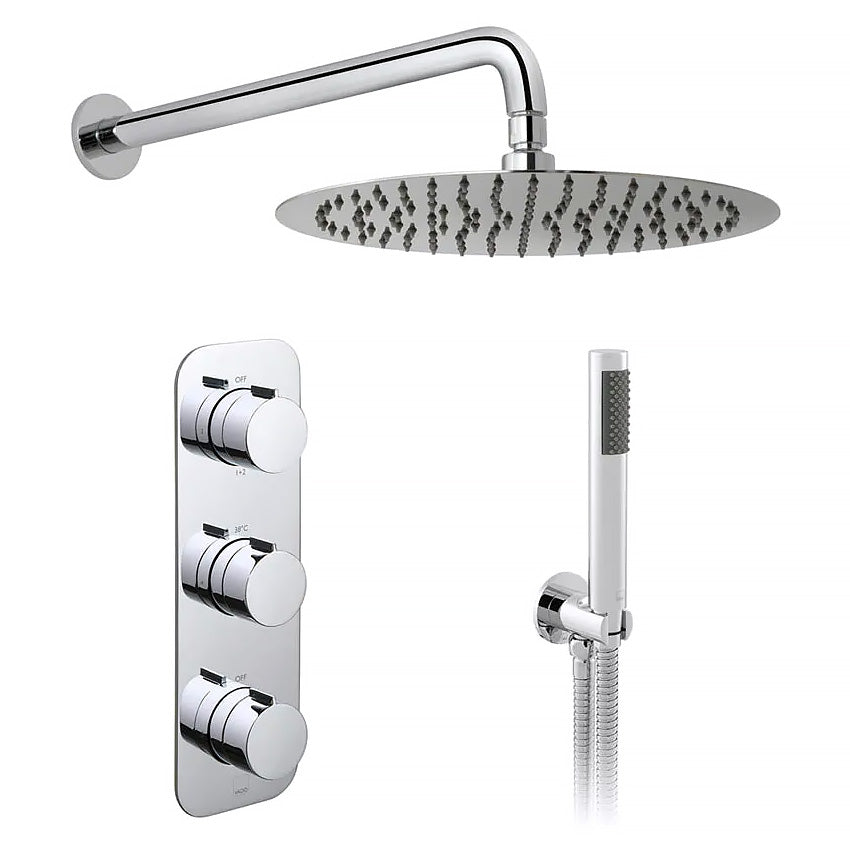

Vado Tablet Altitude Chrome Thermostatic Shower Pack - Concealed Valve with Head and Handset

The Vado Tablet Altitude Shower Package delivers a refreshing and luxurious showering experience. This complete set includes a thermostatic valve, shower head, shower arm, hose, and bracket with integrated outlet. The valve features soft-turn handles on a vertical rectangular backplate, while the slimline round showerhead enhances its modern appearance.

Suitable for both low and high-pressure systems, this unit provides excellent temperature stability and safety. It is designed for easy installation and is backed by a 15-year manufacturer guarantee.

Product Specifications

• Manufacturing Code: Tab-1743/ALT-CP
• Installation: Wall-Mounted
• Finish: Chrome
• Minimum Operating Pressure: 1.0 Bar
• Suitable for High Water Pressure Systems
• Exceptional Safety Against Temperature Fluctuations

Package Includes

• Concealed 2-Outlet 3-Handle Thermostatic Valve
  (Tab-128/2-ALT-C/P)
• Aquablade 300mm Round Slimline Shower Head and Arm
  (AQB-RO/30/SA-C/P)
• Zoo Mini Shower Kit with 1500mm Hose and Bracket
  (ZOO-SFMKWO-C/P)

Valve Specifications

• Luxurious Soft-Turn Handles
• Vertical Rectangular Backplate
• Excellent Flow Rates, Even at Low Pressure

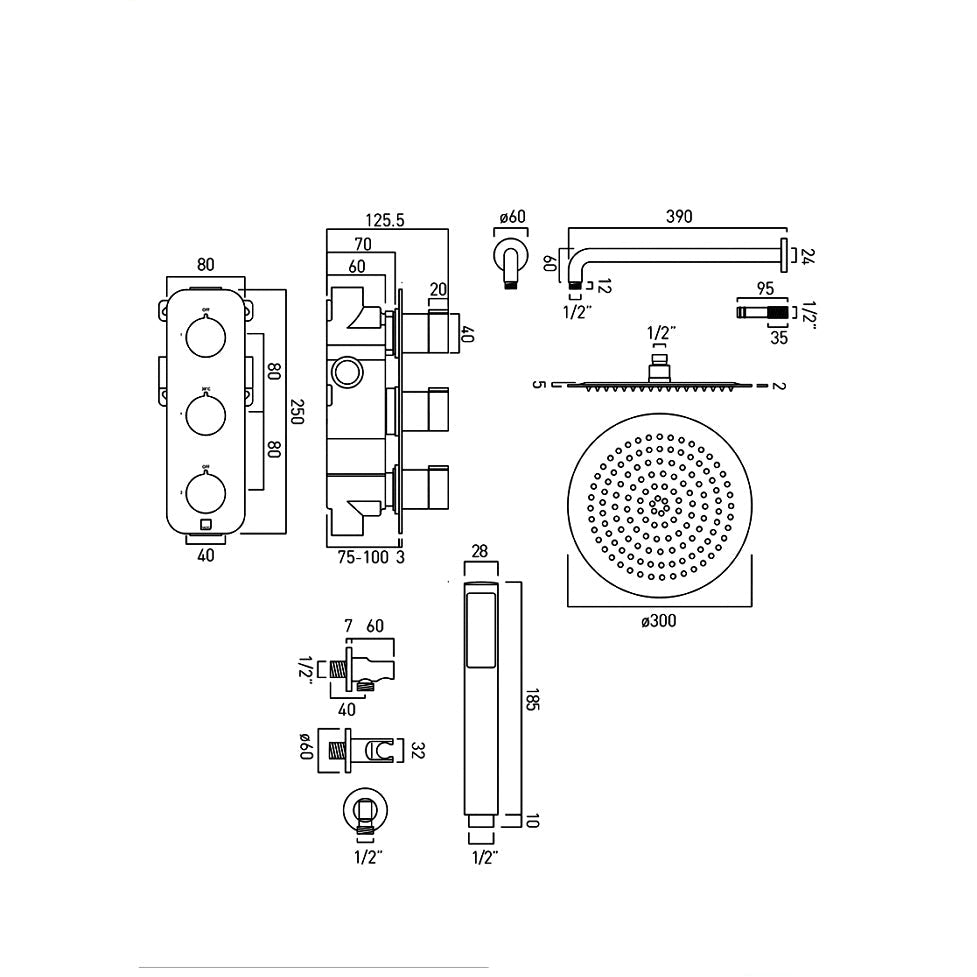

• Size (mm): 80 x 250 (Width x Height)
• Size (cm): 8 x 25 (Width x Height)
• 2 x 3/4-Inch Female Inlet and Outlet
• Includes Fittings for 1/2-Inch and 3/4-Inch Pipework
• Limescale-Resistant Polymer Thermostatic Cartridge
• Flow Rate at 3.0 Bar:
• Outlet 1: 35 L/Min
• Outlet 2: 34 L/Min

Installation Features

• Supplied with Mortar Guard with Markings
• Flat Back Valve Body for Secure Mounting
• Multiple Handle Fitting Positions
• Fitting Depth Tolerance: 75–100mm
• Compatible with 50mm Stud Wall (With Optional Bracket)
• Screw-On Shrouds and Slide-On Plates
• Easy-Access Isolation Points
• Tile-Cutting Tolerance: 10mm
• Optimum Installation Depth: 88mm

Key Features

• Comes in a Chrome Finish
• Features Thermostatic and Flow Cartridge
• Exceptional Safety from Temperature Fluctuations
• 15-Year Guarantee from the Manufacturer
