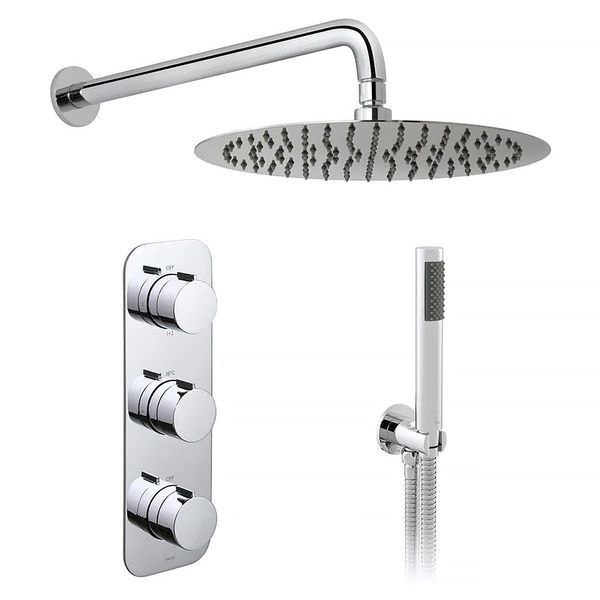

Vado Tablet Altitude Chrome Thermostatic Shower Pack - Concealed Valve with Head and Handset

Enjoy a refreshing and luxurious showering experience with the Vado Tablet Altitude Shower Package from Vado. This complete shower system includes a thermostatic valve, overhead shower, handset, hose, and bracket with an integrated outlet, delivering both style and performance.

Designed with soft-turn handles on a vertical rectangular backplate, this package ensures smooth operation and precise control. The slimline round showerhead enhances the modern appeal, while the thermostatic valve provides exceptional safety against temperature fluctuations.

Suitable for both low and high-pressure systems, this unit offers excellent flow rates and reliable performance. Supplied with a mortar guard for accurate installation, it is backed by a 15-year manufacturer’s guarantee.

Product Details

• Manufacturing Code: Tab-1743/ALT-CP
• Finish: Chrome
• Installation Type: Wall-Mounted
• Minimum Operating Pressure: 1.0 Bar
• Suitable for High Water Pressure Systems

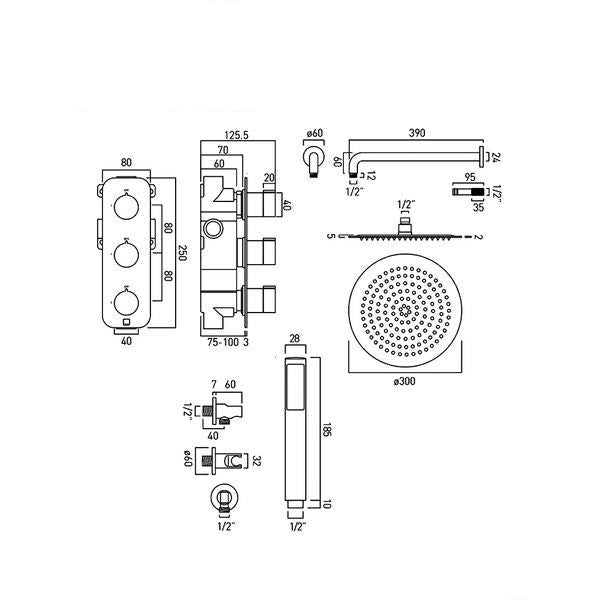

• Refer to the Technical Drawing for Size Details

Package Includes

• Concealed 2-Outlet 3-Handle Thermostatic Valve – Tab-128/2-ALT-C/P
• Aquablade 300 mm Round Slimline Shower Head and Arm – AQB-RO/30/SA-C/P
• Zoo Mini Shower Kit with 1500 mm Hose and Bracket – ZOO-SFMKWO-C/P

Valve Specifications

• Backplate: Vertical Rectangular
• Handles: Luxurious Soft-Turn
• Inlets/Outlets: 2 × 3/4-Inch Female
• Pipework Compatibility: 1/2-Inch and 3/4-Inch
• Cartridge: Polymer Thermostatic, Limescale Resistant
• Flow Rate at 3.0 Bar:

  • Outlet 1: 35 l/min

  • Outlet 2: 34 l/min

• Fitting Depth Tolerance: 75–100 mm (7.5–10 cm)
• Optimum Installation Depth: 88 mm (8.8 cm)
• Flat Back Valve Body for Secure Mounting
• Easy-Access Isolation Points
• Screw-On Shrouds and Slide-On Plates for Quick Second Fix

Size Details (Valve)

• Size (mm): 80 x 250 (Width x Height)
• Size (cm): 8 x 25 (Width x Height)

Installation Features

• Supplied with Mortar Guard and Markings
• Can Fit into 50 mm Stud Wall (with Optional Studfast Bracket)
• Plate Allows 10 mm Tile-Cutting Tolerance
• Multiple Handle Fitting Positions for Perfect Alignment

Key Features

• Comes in a Chrome Finish
• Features Thermostatic and Flow Cartridge
• Exceptional Safety from Temperature Fluctuations
• Excellent Flow Rates, Even at Low Pressure
• Limescale-Resistant Cartridge
• 15-Year Guarantee Against Manufacturing Defects
