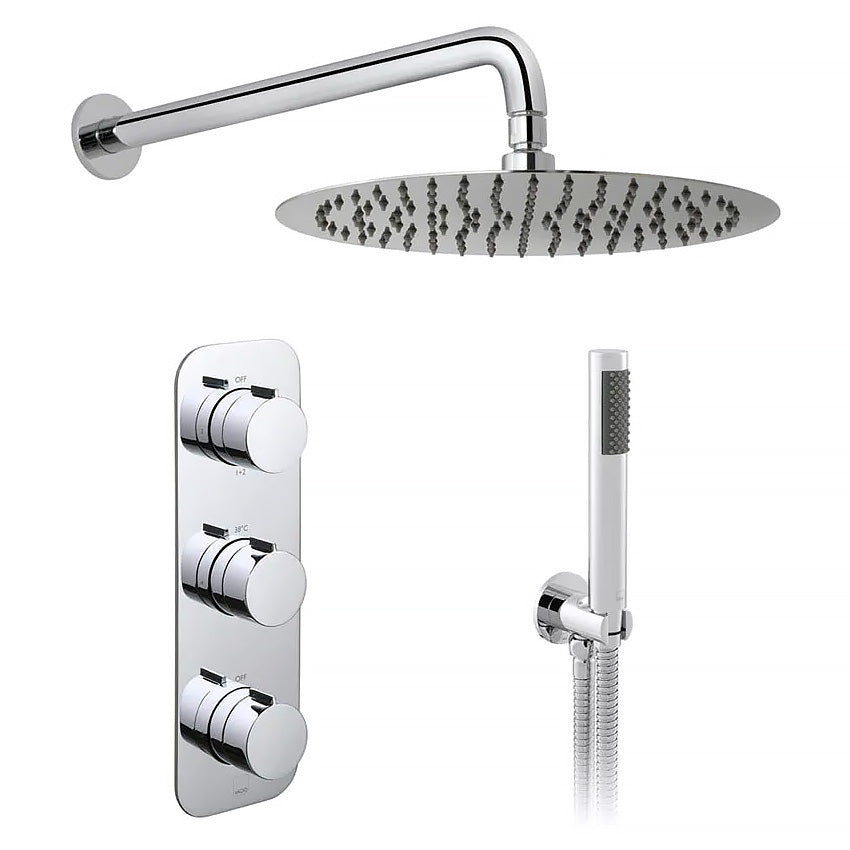

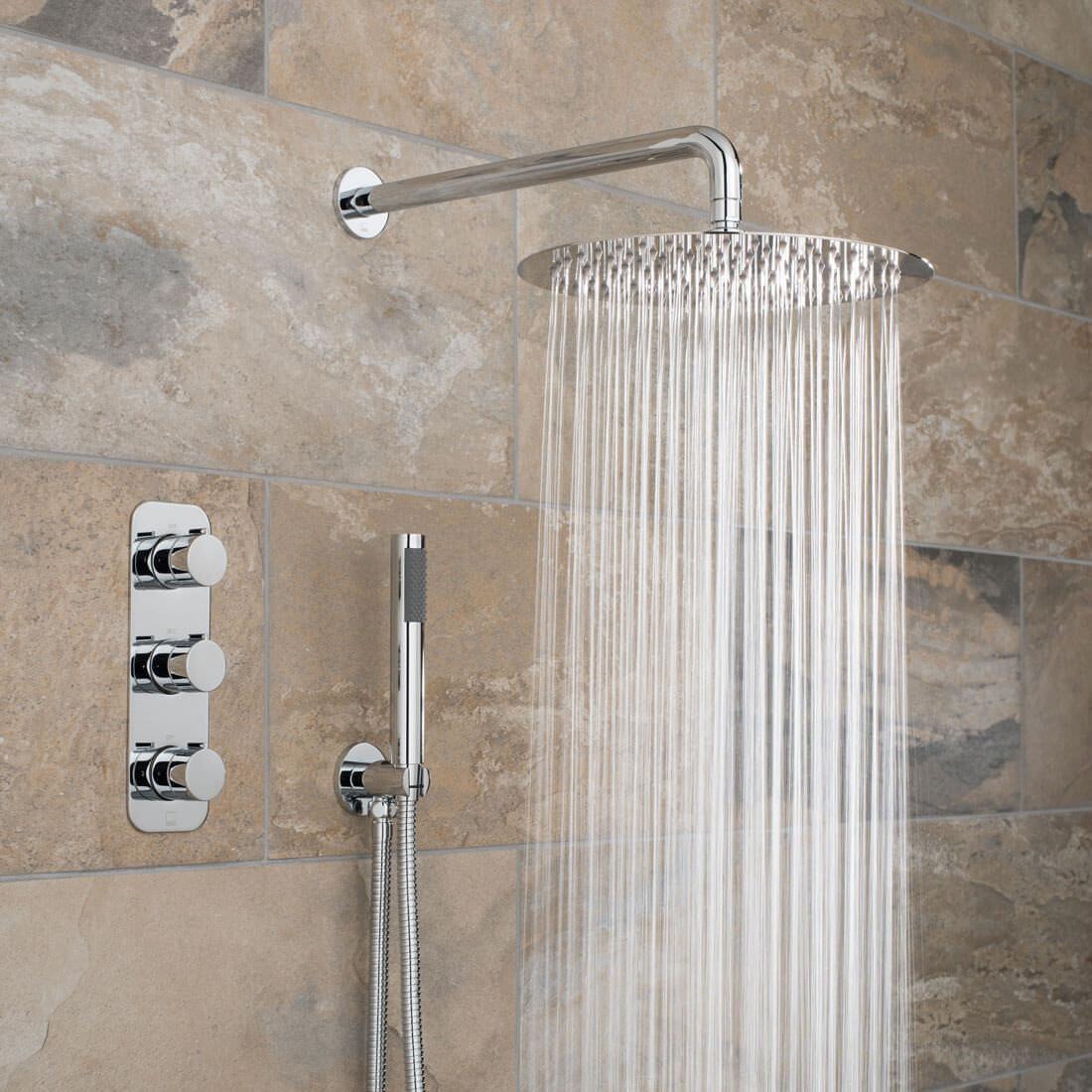

Vado Tablet Altitude Chrome Thermostatic Shower Pack - Concealed Valve with Head and Handset

A gloriously refreshing showering experience awaits you when you bring home this Vado Tablet Altitude Shower Package, including a thermostatic valve, shower head and shower arm, hose and bracket with integrated outlet. The valve features luxury soft-turn handles on a vertical rectangular backplate, while the showerhead has a round, slimline profile.

This unit is suitable for low and high pressure shower systems. The valve provides your family with exceptional safety against temperature fluctuations and comes with luxury soft-turn handles. For ensuring quick installation, the mortar guard comes complete with markings. The manufacturer fully supports this unit with a solid 15-year guarantee against any manufacturing defects.

The Manufacturing Code of this Product is Tab-1743/ALT-CP
Wall-Mounted Installation

Package Includes

• Concealed 2-Outlet 3-Handle Thermostatic Valve - Tab-128/2-ALT-C/P
• Aquablade 300mm (30cm) Round Slimline, Easy Clean Shower Head and Arm - AQB-RO/30/SA-C/P
• Zoo Single-Function Mini Shower Kit with 1500mm (150cm) Hose and Bracket with Integrated Outlet - ZOO-SFMKWO-C/P

Key Features

• It comes in a Chrome Finish
• Features Thermostatic and Flow Cartridge
• Exceptional Safety from Temperature Fluctuations
• 15-Year Guarantee from the Manufacturer

System Compatibility

• The Minimum Operating Pressure Required is 1.0 Bar
• Suitable for High Water Pressure System

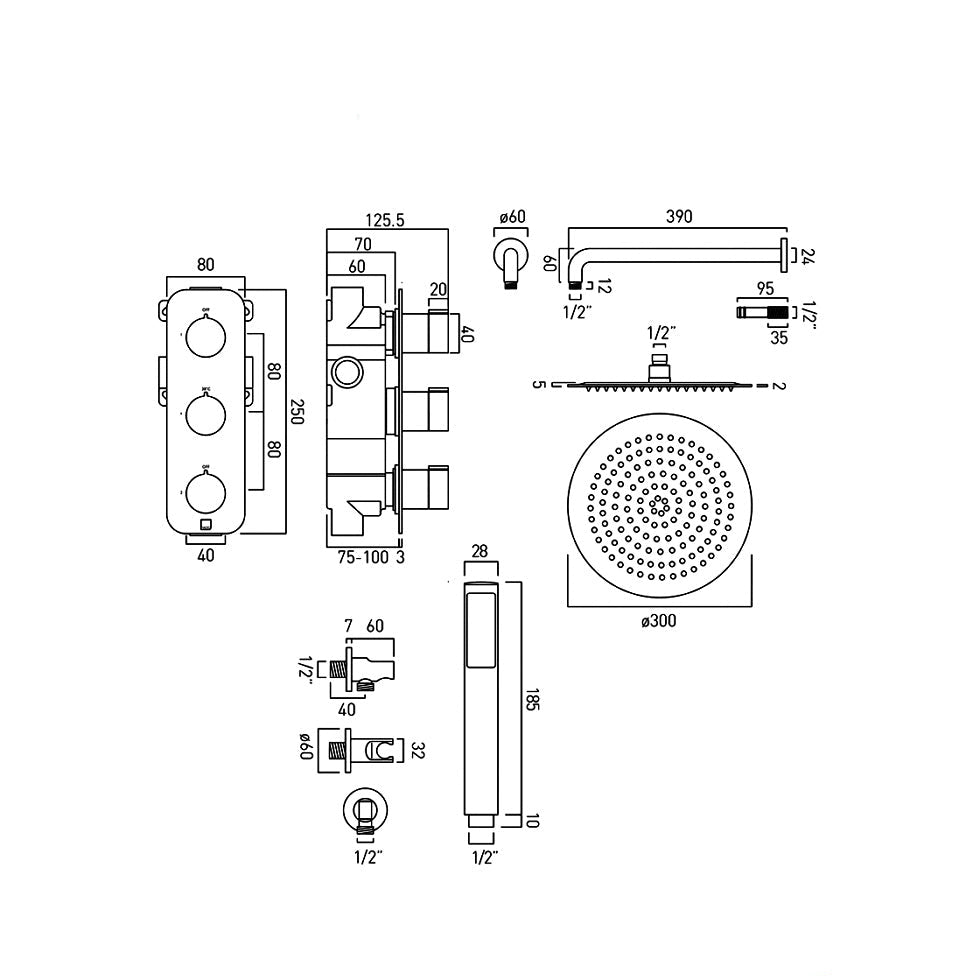

Valve Specifications

• Luxurious Soft-Turn Handles
• It comes with a Vertical Rectangular Backplate
• Excellent Flow Rates, Even at Low Pressure
• Size [mm]: 80 x 250mm [Width x Height]
• Size [cm]: 8 x 25cm [Width x Height]
• 2 x 3/4-Inch Female Inlet and Outlet
• Includes Fittings for 1/2-Inch and 3/4-Inch Pipework
• New Polymer Thermostatic Cartridge that is Resistant to Limescale
• Flow Rate at 3.0 Bar Pressure: Outlet 1: 35 l/min, Outlet 2: 34 l/min
• Supplied with Mortar Guard Complete with Markings to Aid Installation and Tiling
• A Flat Back Valve Body Allows for a Solid, Secure Mount
• Handles have Multiple Fitting Positions to Allow Perfect Alignment of the Handle and Shroud
• 25mm (2.5cm) Fitting Depth Tolerance: 75-100mm (7.5cm - 10cm) [Minimum-Maximum]
• Can Fit into a 50mm (5cm) Stud Wall when using an Optionally Available Studfast Bracket
• Screw-on Shrouds and Slide-on Plates Ensure a Rapid and Simple Second Fix
• Easy-Access Isolation Points
• Plate Size Allows for a 10mm (1cm) Tile-Cutting Tolerance
• Optimum Installation Depth: 88mm (8.8cm) for Standard Installation
