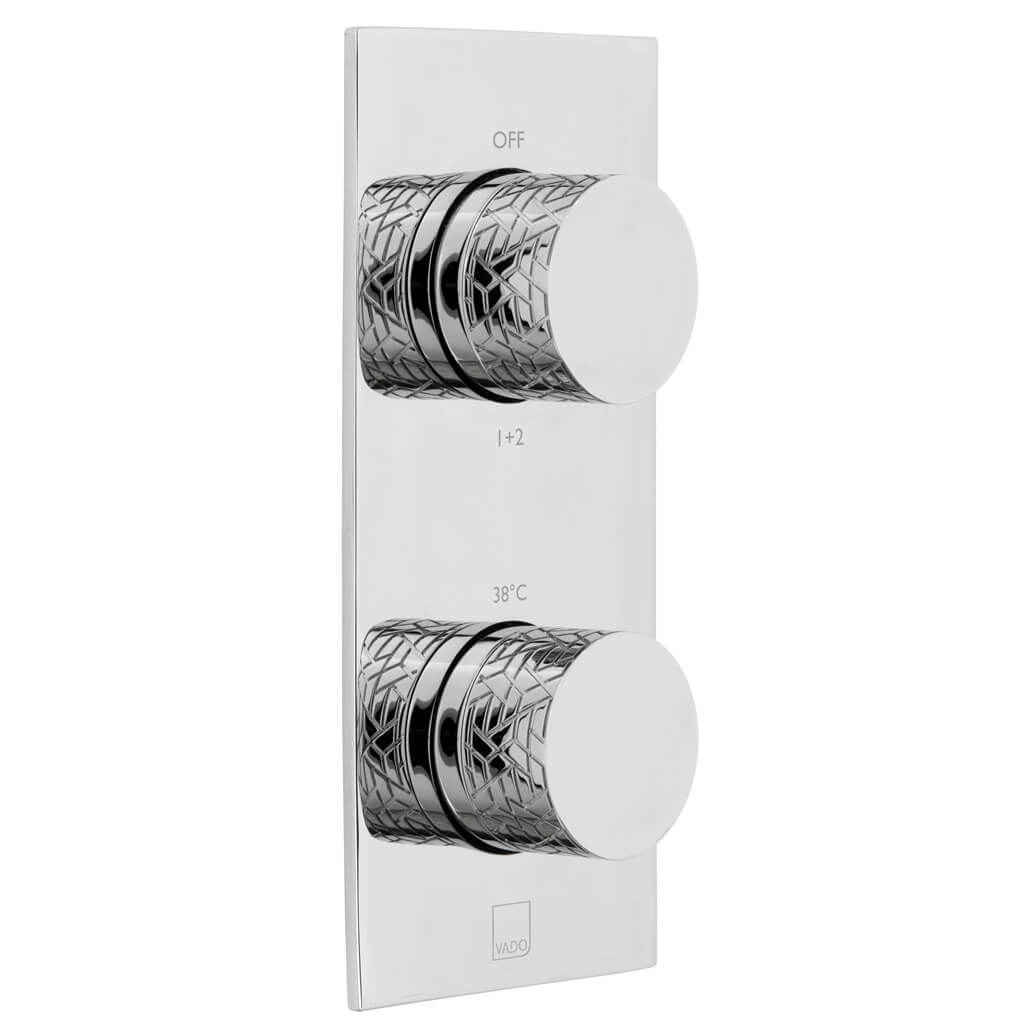

Vado Omika Chrome Concealed Thermostatic Shower Valve - Rectangular Trim - 2 Control

The Vado Omika 2 Outlet and 2 Handle Concealed Thermostatic Valve is chrome plated, wall-mounted unit that features an all-flow function that delivers water to either outlet independently or to both outlets simultaneously, whichever is needed. Supplied with a mortar/tile guide for simplified installation, this product provides a smooth flow of water with minimum operating pressures of 0.2 bar for use with a shower or 1 bar for use with a bath mixer. Also available horizontally designed if preferred, this unit also includes diverter and thermostatic cartridges.

Key Features

• Chrome-Plated Finish
• With the All-Flow Function that Delivers Water to Either Outlet Independently or all Outlets Simultaneously
• WRAS-Approved
• 15-Year Guarantee Against any Manufacturing Defect

Technical Specifications

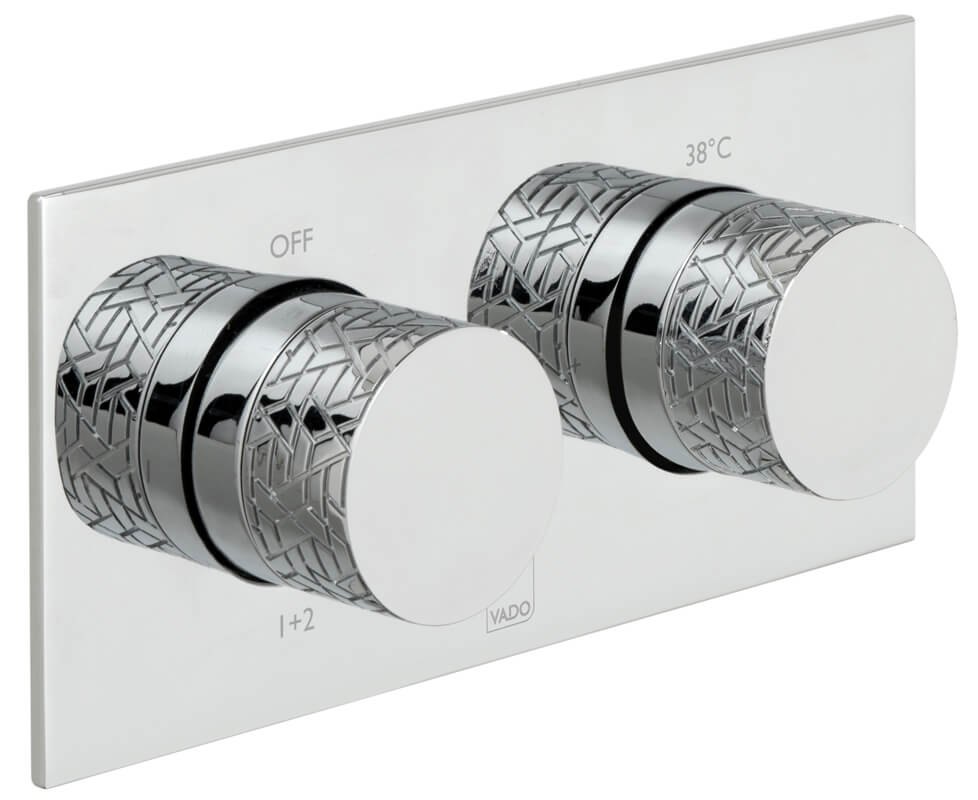

• Choice of Variations: Vertical, Horizontal
• Minimum Operating Pressure: 0.2 Bar - Low Pressure (Shower), 1.0 Bar - High Pressure (Bath)
• Wall-Mounted Installation
• Thermostatic Cartridge - V-001C-PLA
• Diverter Cartridge - Tab-001G-DIV
• 2 x 3/4-Inch Female Inlets
• 2 x 3/4-Inch Female Outlets
• Includes 3/4-Inch - 1/2-Inch Adaptors
• Supplied with Mortar/Tile Guard
• Minimum-Maximum Wall Mount: 75-100mm (7.5cm - 10cm)
• Optimum Installation Depth: 87mm (8.7cm)
• Can Fit into a 50mm (5cm) Stud Wall when using an Optionally Available Studfast Bracket
