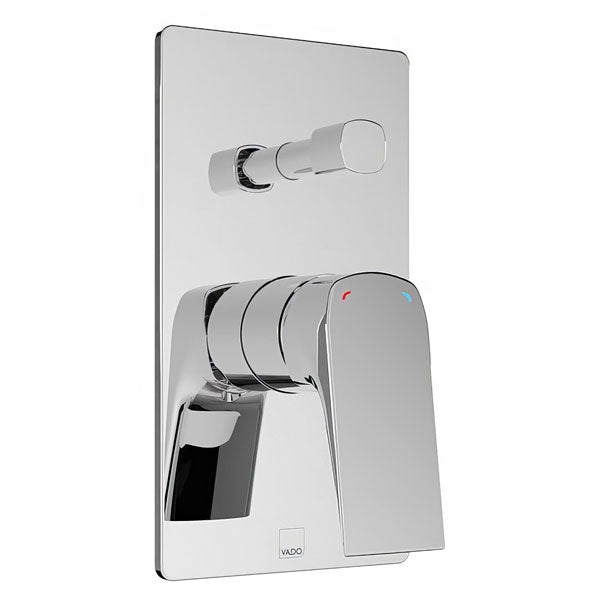

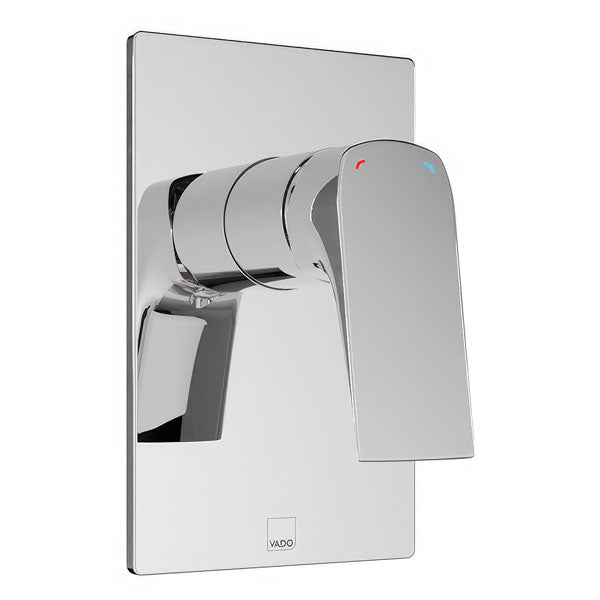

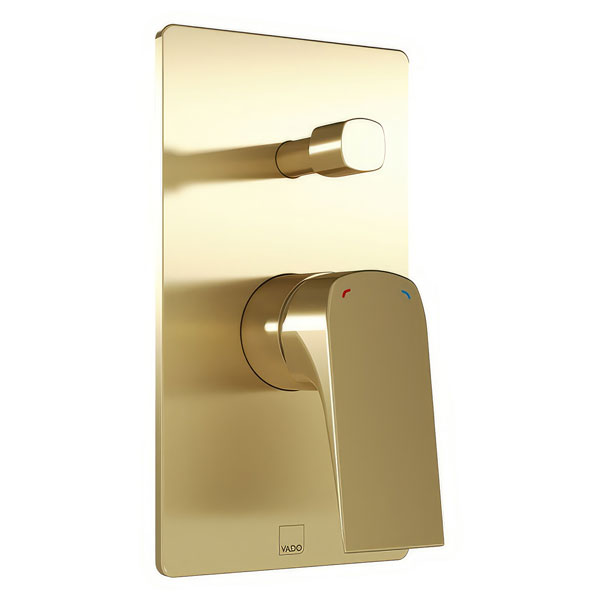

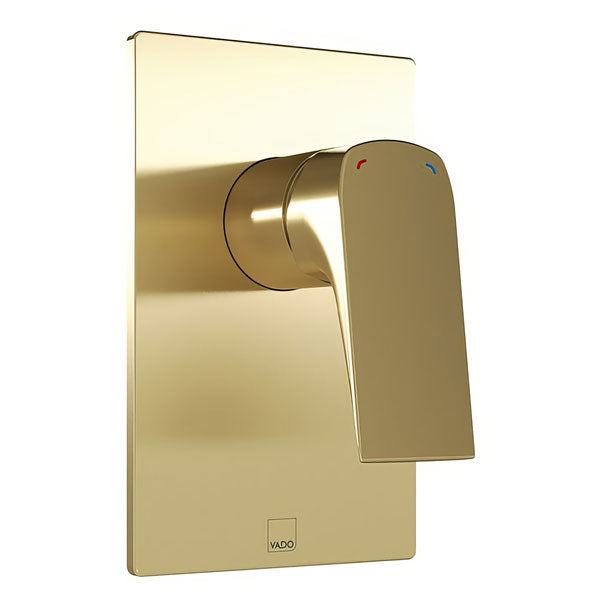

Vado Cameo Contemporary Concealed Manual Shower Valve - Rectangular Trim - 1 Control

Now, you can take your showering experience to a gloriously refreshing level by bringing home the Vado Cameo Concealed Manual Shower Valve. Made to the highest quality standards from best quality brass, this shower valve offers superb performance over many years.

This unit works with gravity-fed systems and combi-boilers and comes with a thermostatic cartridge that keeps the temperature constant and prevents scalding accidents.

Product Details

• Choice of Variants: Without Diverter, With Diverter
• Choice of Finishes: Chrome, Matt Black, Matt White, Satin Brass
• Installation: Concealed Wall-Mounted
• Orientation: Vertical
• Plumbing System Suitability: Gravity System, Combination Boiler
• Ceramic Cartridge: C-006-N35
• Refer to Technical Drawing for Complete Size Details
• 15-Year Guarantee from the Manufacturer

Size Details

• Size (mm): 100 x 160 (Width x Height)
• Size (cm): 10 x 16 (Width x Height)
• Optimum Installation Depth: 82mm
• Min-Max Wall Mount: 40–65mm

Operating Pressure

• Minimum Operating Pressure:

  • 0.2 Bar Low Pressure (Shower)

  • 1.0 Bar High Pressure (Bath)

Key Features

• Square Single-Lever Handle Design
• Plumbing System Suitability: Gravity System, Combination Boiler

Specifications (Without Diverter)

• Number of Outlets: 1
• 2 x 1/2-Inch Female Inlets
• 2 x 1/2-Inch Female Outlets (One Blanked Off)

Specifications (With Diverter)

• Number of Outlets: 2
• 2 x 1/2-Inch Female Inlets
• 2 x 1/2-Inch Female Outlets
