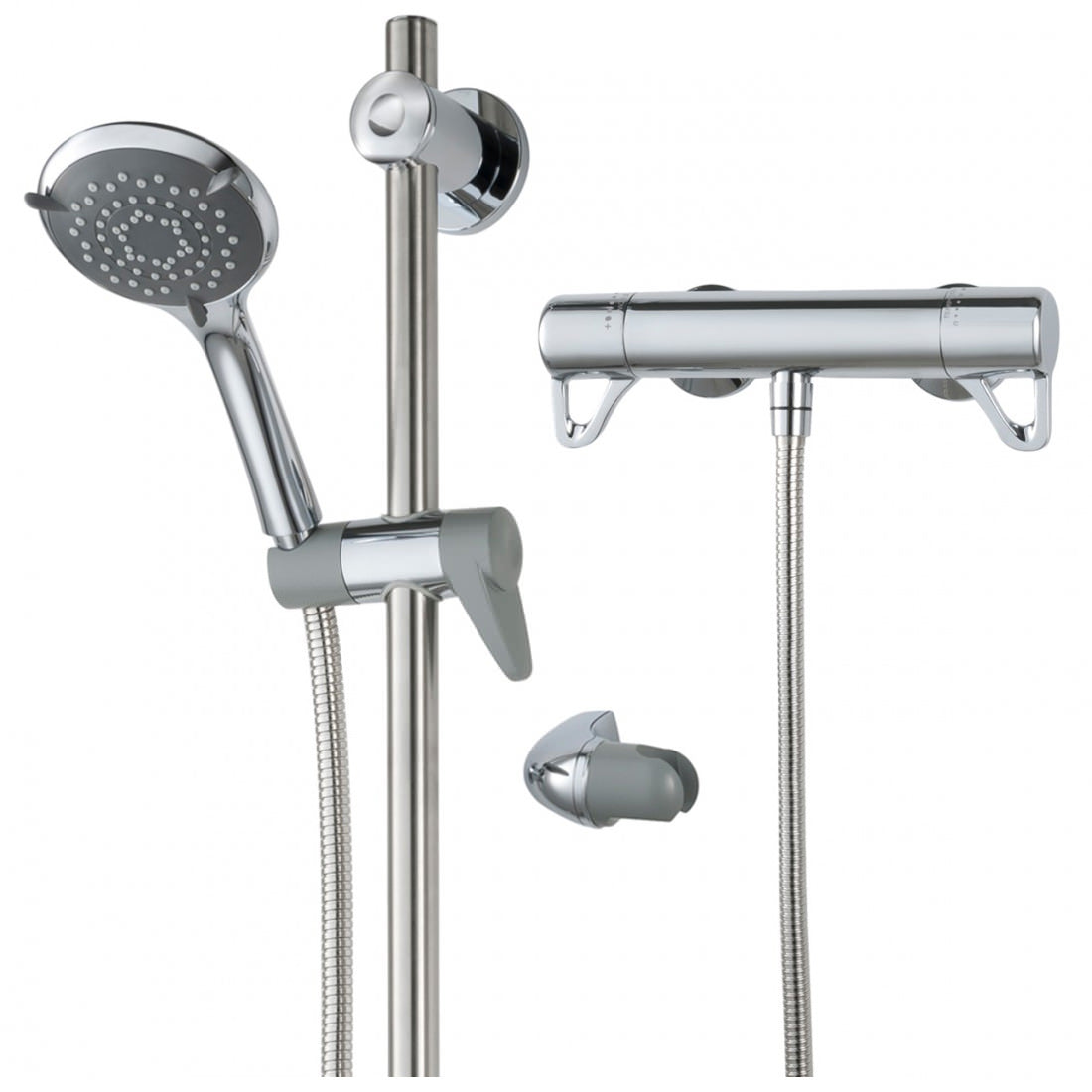

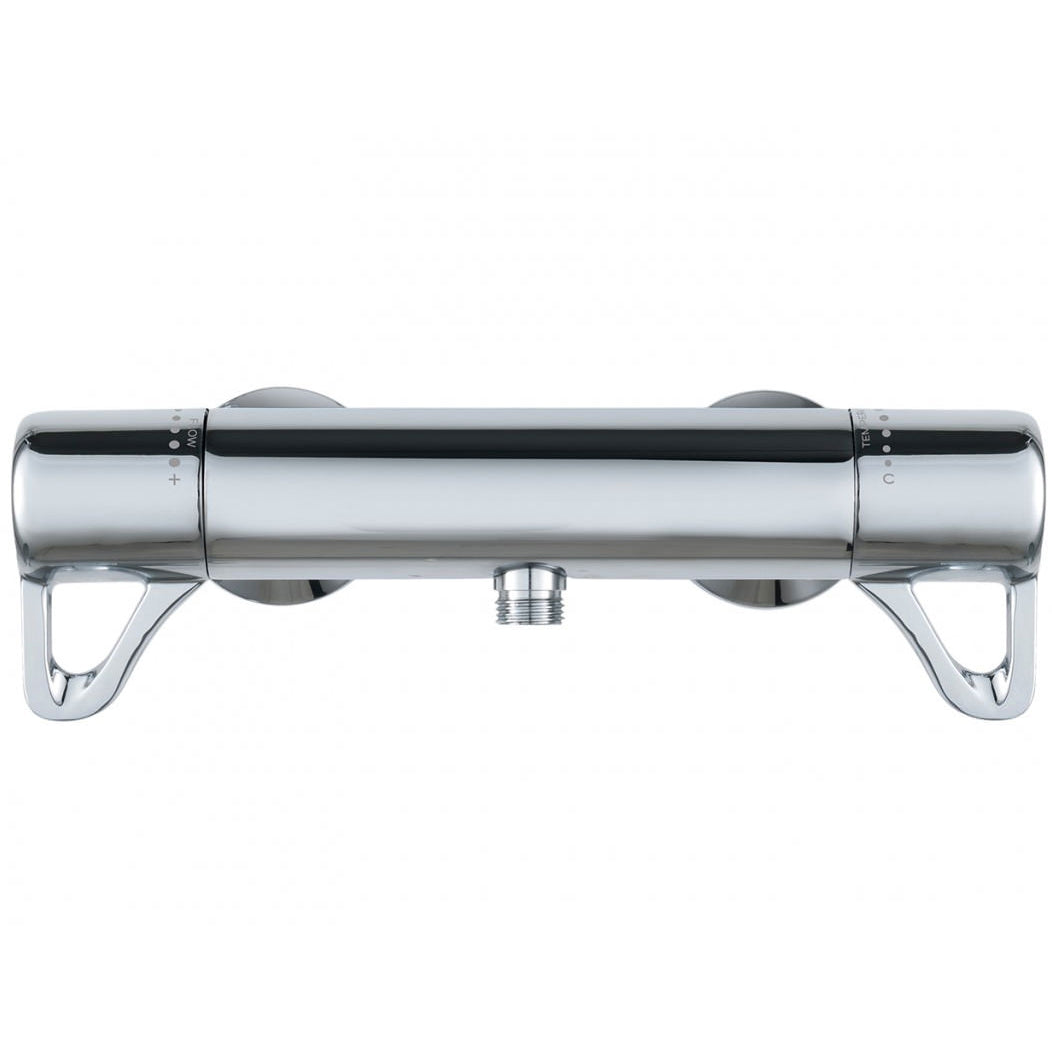

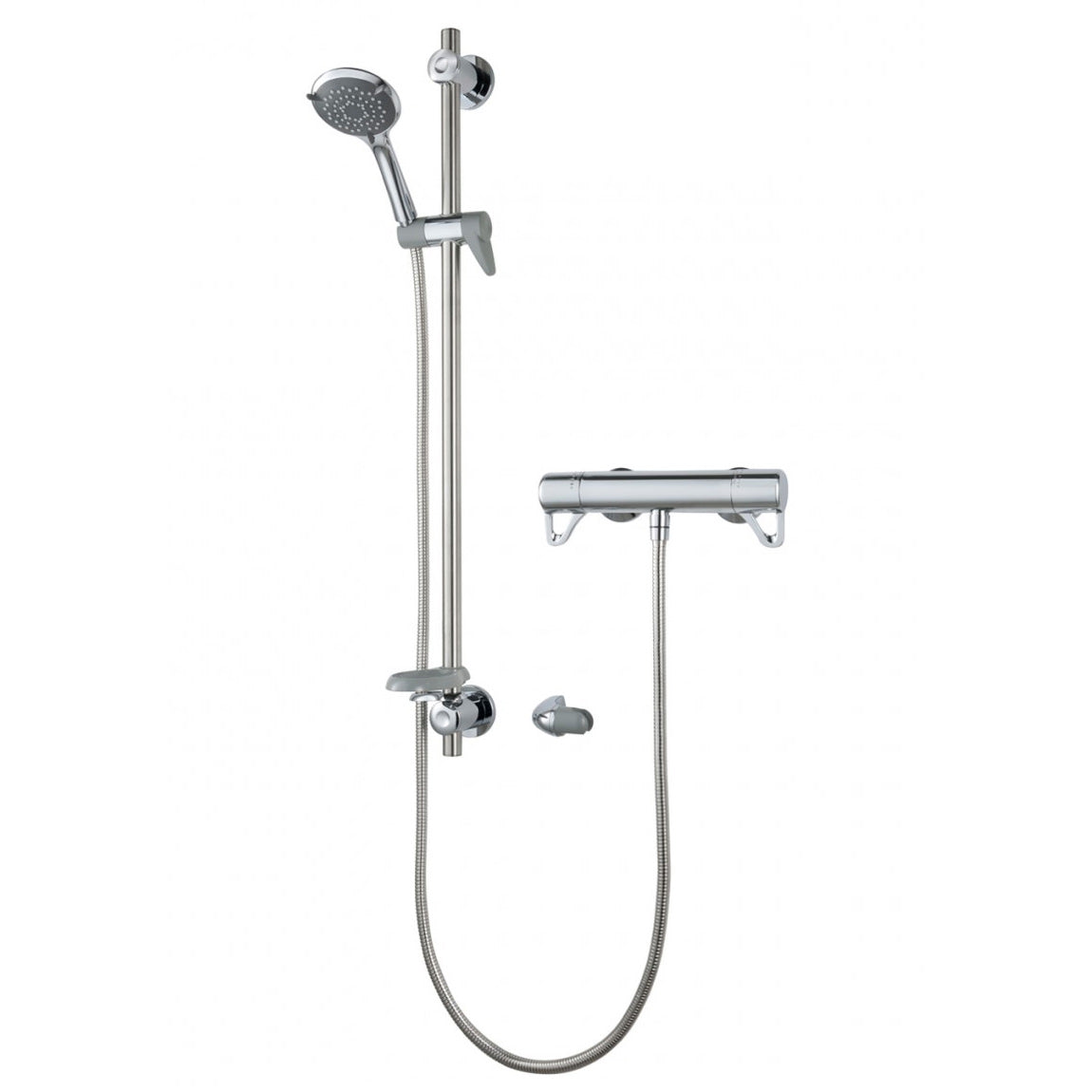

Triton Elina Exposed Chrome Thermostatic Shower - Bar Mixer Valve and Riser Rail Kit

Triton Elina Bar Mixer Exposed Thermostatic Shower Valve with Riser Rail combines luxury, safety, and durability. Manufactured from heavy-duty brass and finished in chrome, this shower system offers a strong build and streamlined design. It includes a dual-purpose grab riser rail capable of supporting up to 150kg, making it a practical addition to any shower area.

The thermostatic system ensures stable temperature control, while the automatic shutdown feature prevents scalding if hot or cold water supply fails. Suitable for all pressure systems, it is simple to install and maintain.

Product Specifications

• Manufacturing Code: ELITHBMINC3
• Finish: Chrome
• Separate Flow and Temperature Controls
• Installation Set Maximum Temperature Limit
• Open Outlet Flow Rate: 5.3 L/Min at 0.1 Bar
• Maximum Flow Rate with Flow Limiters: 12 L/Min
• Plumbing System: Suitable for All Systems
• Water Entry Points: Back

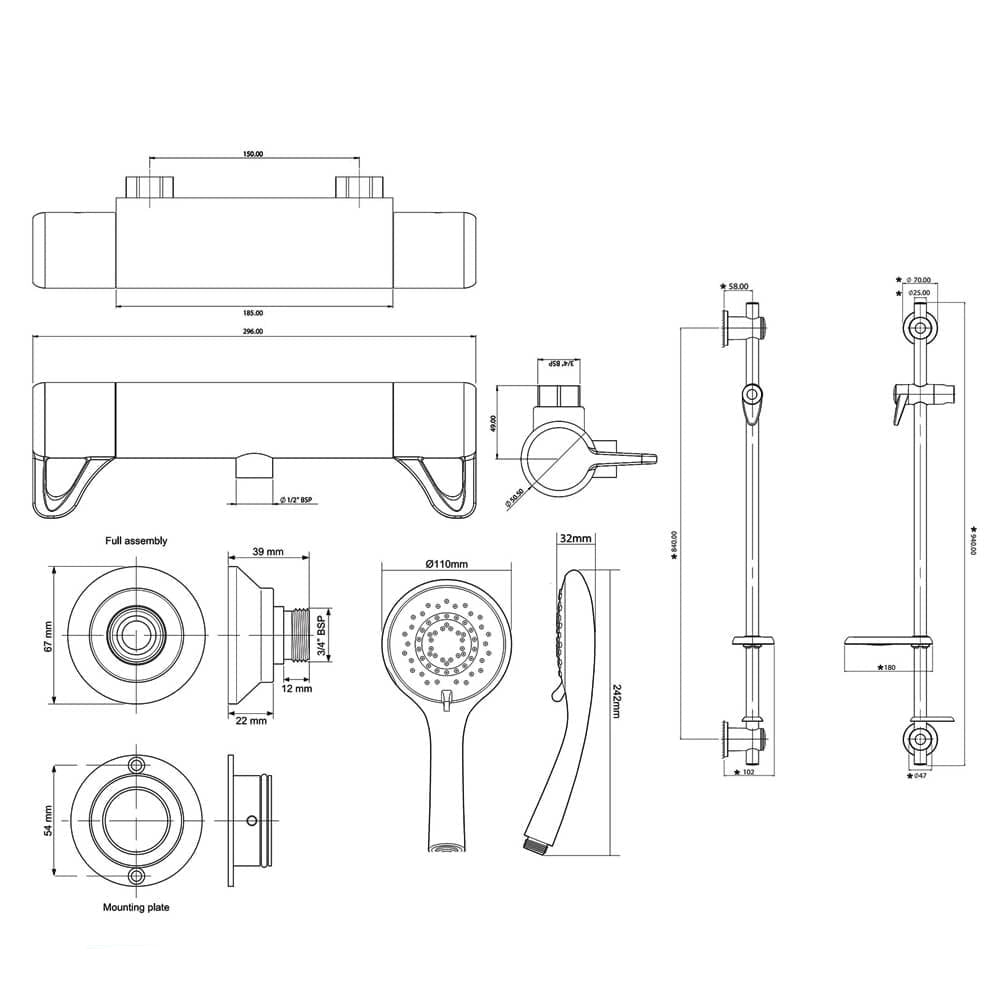

• Inlet Connections: 1/2-Inch BSP to 3/4-Inch Flat Face Union
• Pipe Centres: 150mm
• Outlet Connection: 1/2-Inch BSP Bottom
• Minimum Running Pressure: 0.1 Bar @ 8 L/Min
• Maximum Running Pressure: 5 Bar
• Maximum Static Pressure: 10 Bar
• Approvals: BS EN 1111, 1287, WRAS, TMV3

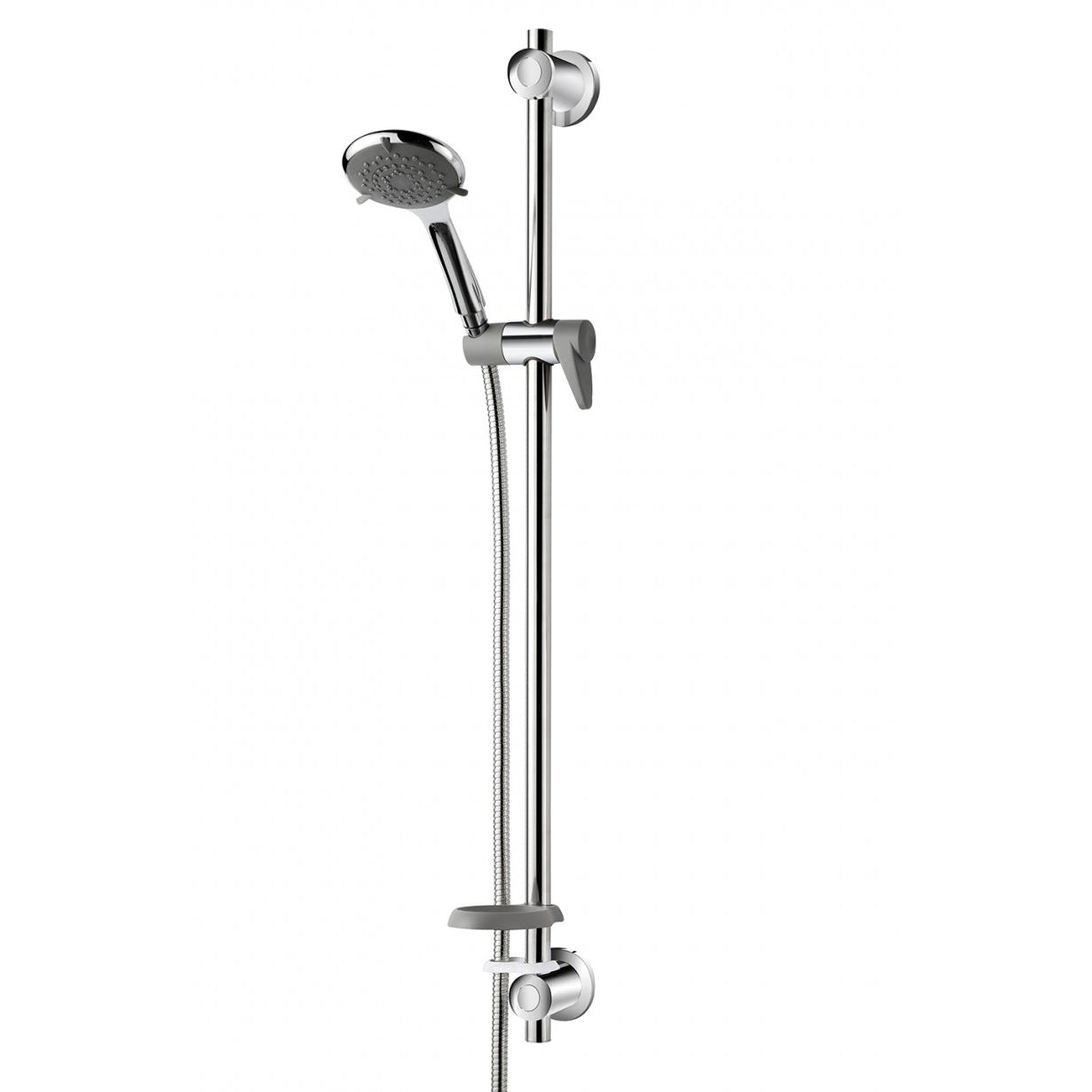

Shower Components

• 5-Spray Pattern Hand Shower
• Showerhead Diameter: Ø110mm
• Rub-Clean Nozzles
• Rail Diameter: Ø25mm
• Rail Length: 940mm
• Twist and Lock Showerhead Holder
• 2000mm Double-Interlocked Stainless Steel Hose
• Hose Retainer Included
• Soap Dish Included

Key Features

• Dual-Purpose Grab Riser Rail (Supports up to 150kg)
• Automatic Shutdown Safety Feature
• Suitable for All Pressure Systems

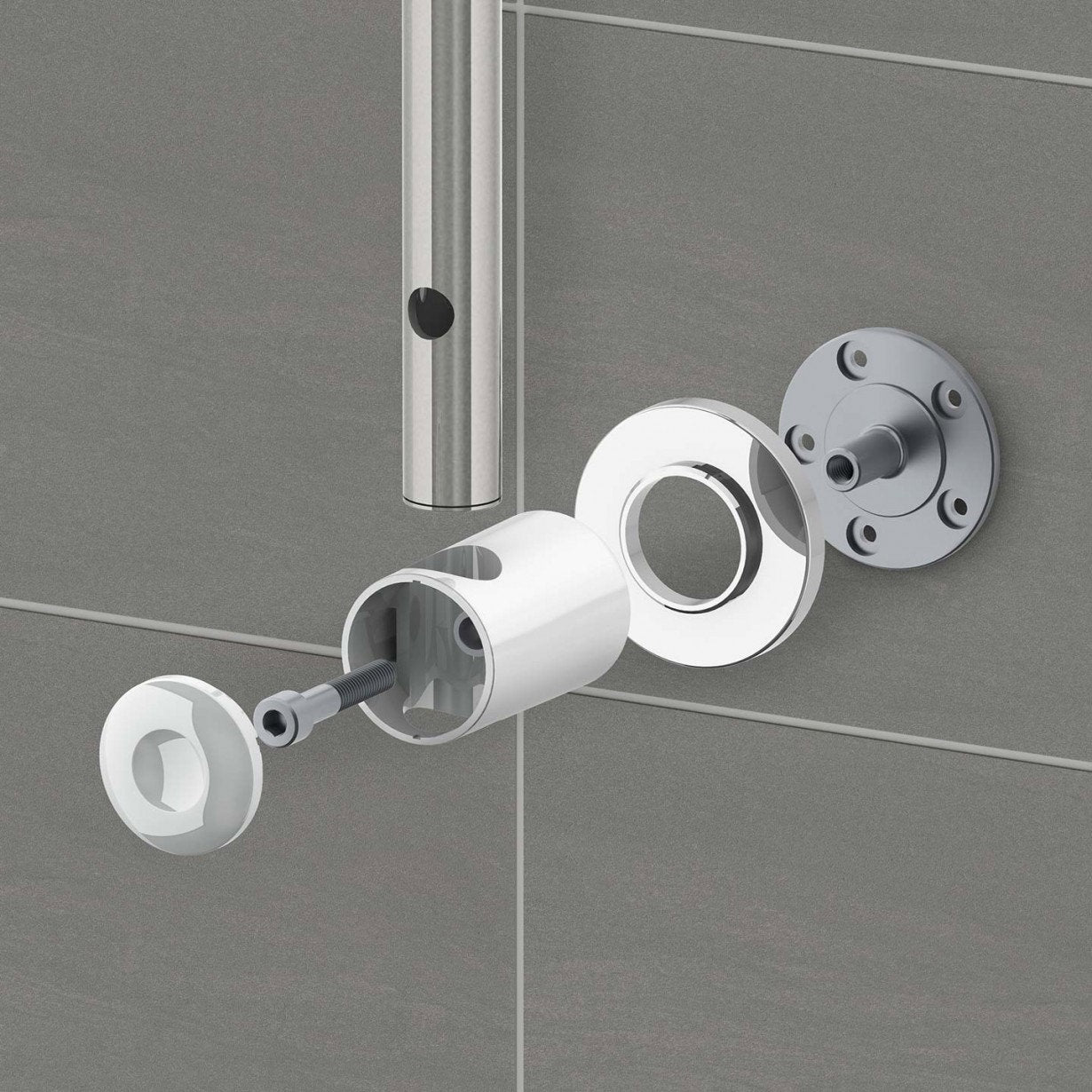

• Push-Fit Fixings for Concealed Pipework
• Simple Installation and Maintenance
• 5-Year Guarantee Against Manufacturing Defects
