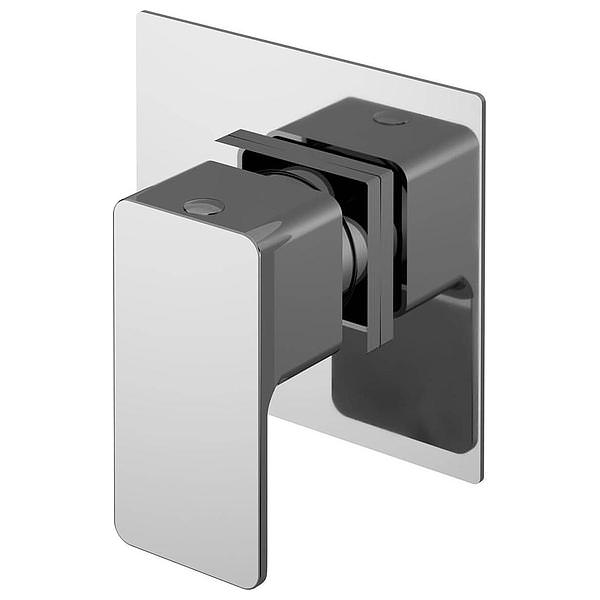

Nuie Windon Concealed Chrome Stop Valve - Half Inch Inlet or Outlet Connection

Trust Nuie to deliver precisely what you desire. As part of its popular Windon range, this stop tap is manufactured using high-quality brass material. The wall-mounted product can be installed quickly and features a square design with chrome polish.

It works with 1/4-turn ceramic disc technology for long-life smooth operation and is suitable for low-pressure water systems.

Product Details

• Manufacturing Code: WINST10
• Finish: Chrome
• Valve Handle: Lever Type
• Pipe Size: 15mm (1.5cm) (1/2-Inch BSP)
• Inlet and Outlet Connection: G 1/2-Inch
• Suitable for Low-Pressure Water System
• Requires 0.2 Bar Operating Water Pressure

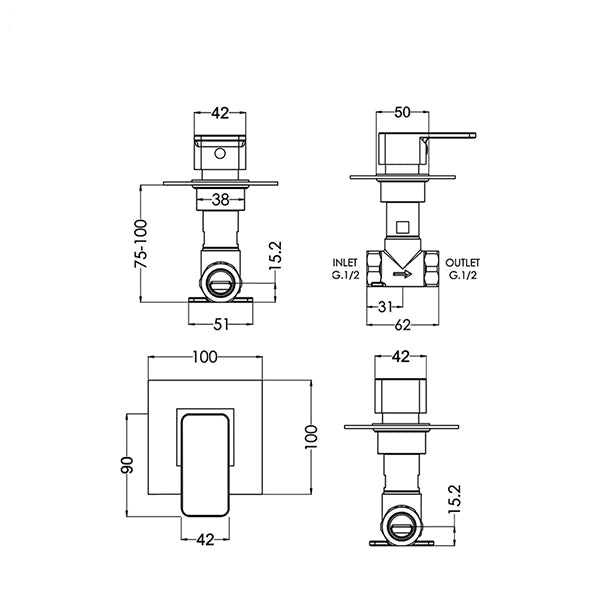

• Refer to the Technical Drawing for Size Details

Size Details

• Size (mm): 100 x 100 x 100 (Width x Depth x Height)
• Size (cm): 10 x 10 x 10 (Width x Depth x Height)

Valve Size (mm)

• Width: 100 mm
• Depth: 100 mm
• Height: 100 mm

Key Features

• Manufactured Using Brass Material
• Stain- and Rust-Resistance
• Thermostatic Temperature Control Design
• Cartridge Included: 1/4-Turn Ceramic Disc Technology for Long Life Smooth Operation
• 5-Year Guarantee from Hudson Reed Against Manufacturing Defects
