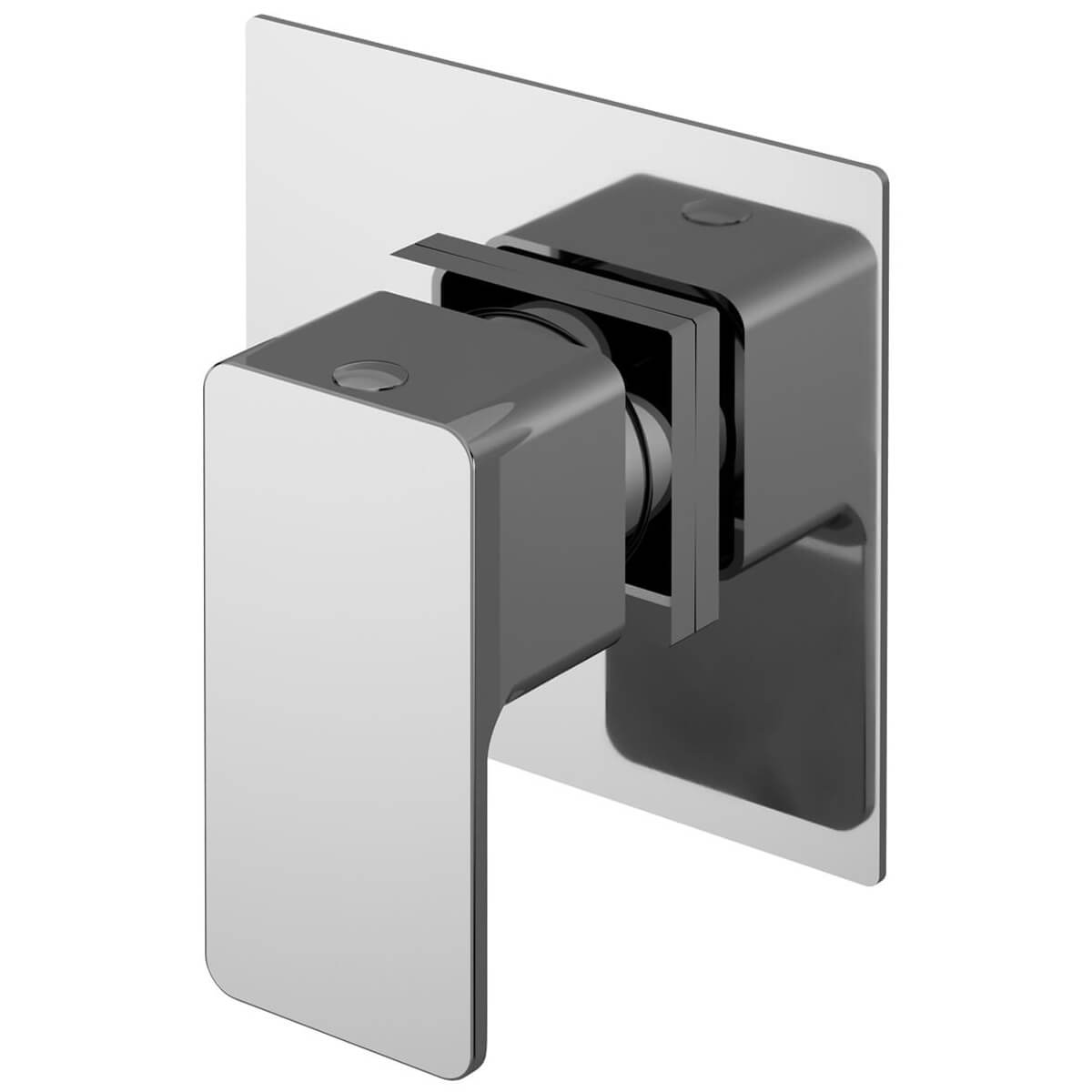

Nuie Windon Concealed 2-3-4 Way Diverter

Nuie brings the unique, compact and reliable Windon Concealed 2-3-4 Way Diverter in a simple squared profile, placed on a square back-plate. Specially designed for wall mounting, it complements a variety of decors with its stunning chrome finish. It is fitted with a patented Valquest cartridge that offers full thermal protection to effortlessly maintain constant water temperature for safe and enjoyable bathing. Designed for use with low-pressure water systems, it is compatible for use with thermostatic temperature control and concealed stop valve, which can be purchased separately.

Product Details

The Manufacturing Code of this Product is WINWD14
Size [mm]: 100 x 135 x 100mm [Width x Depth x Height]
Size [cm]: 10 x 13.5 x 10cm [Width x Depth x Height]
Wall-Mount Cavity: Min. 78mm (7.8cm) and Max. 104mm (10.4cm)
It Comes in a Chrome Finish
Made in Britain
Full Thermal Protection to Prevent Scalding
Can be Fitted Vertically or Horizontally
Fully Reversible Cartridge
Designed for Use with Thermostatic Temperature Control and Concealed Stop Tap - Sold Separately [Optional]
Flow Rate (Litres/Minute) : 0.1 Bar - 5.2, 0.2 Bar - 8.5, 0.5 Bar - 13.3, 1.0 Bar - 19.1, 2.0 Bar - 27, 3.0 Bar - 33.2
Number of Outlets: 4
Includes 1 Lever Handle
Suitable for Concealed Installation
Inlet and Outlet Connection: G 1/2-Inch
Pipe Size: 15mm (1.5cm) (1/2-Inch BSP)
Accurate Flow Control
Suitable for Low-Pressure Water System
Requires 0.20 Bar Operating Water Pressure
1/4-Turn Ceramic Disc Technology for Long Life and Smooth Operation
Valve Mount Type: Concealed Shower

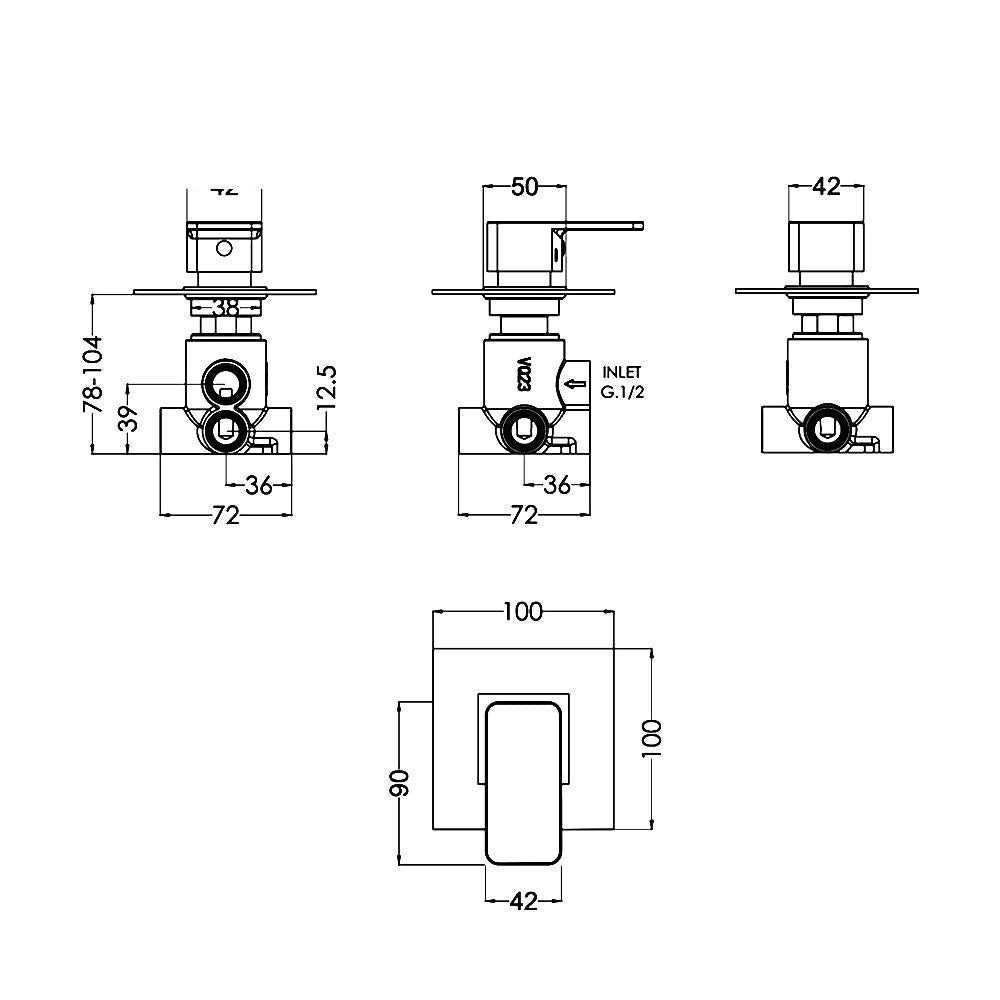

Refer to the Technical Drawing for Size Details
5-Year Guarantee from Nuie Against Manufacturing Defects

Info / Size (mm)

Valve
Width: 100 mm
Depth: 135 mm
Height: 100 mm

Key Features

• Square-Shaped Back-Plate Included
• Constructed Using High-Quality Material Brass
• Patented Valquest Cartridge
• Stain- and Rust-Resistant Valve
