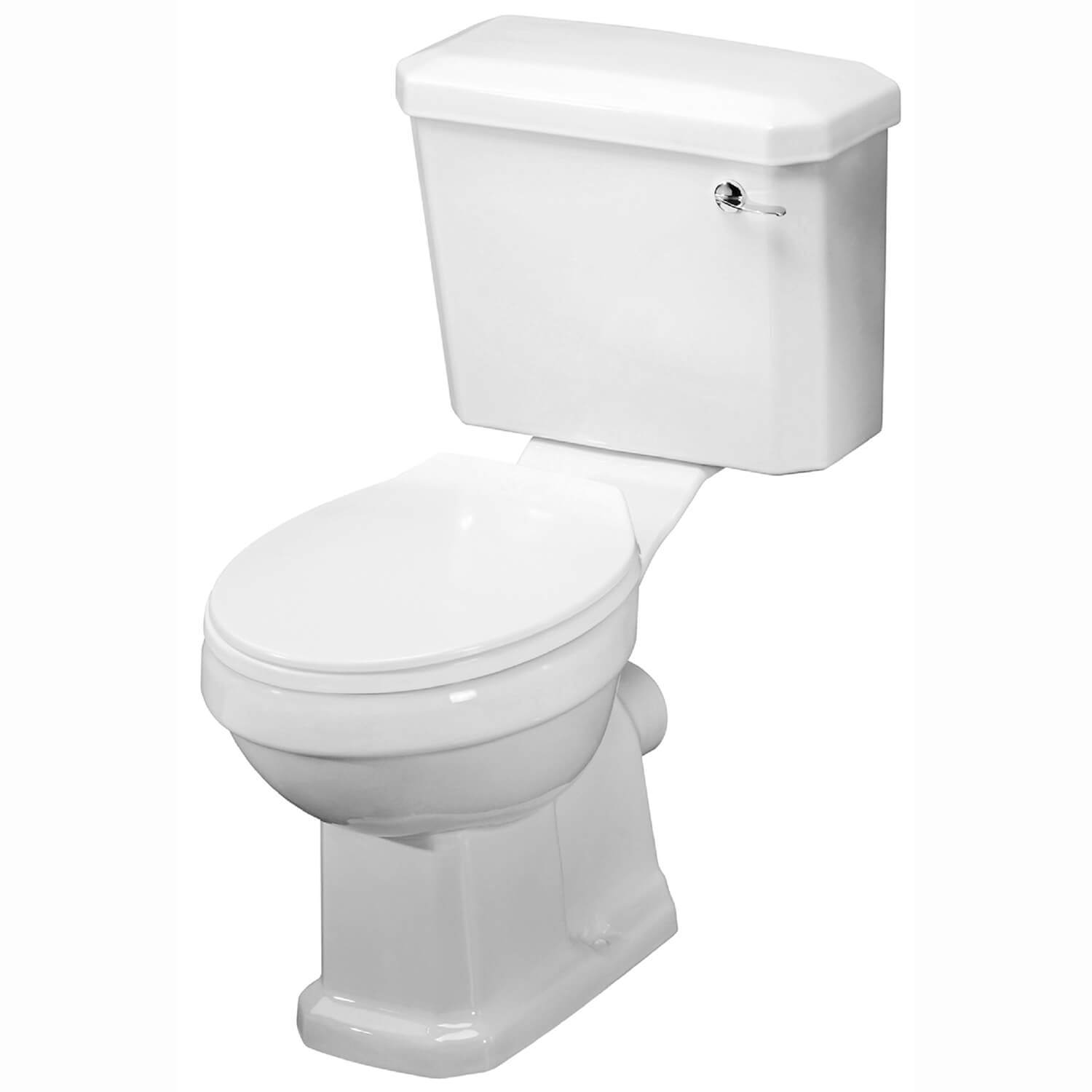

Nuie Carlton Traditional Close Coupled Toilet with Cistern and Soft Close Seat - 470 x 690mm

The Nuie Carlton Close Coupled Pan, Cistern, and Seat is designed to bring classic elegance and traditional charm to your bathroom. Featuring a timeless design, this complete WC set includes a pan, lever-operated cistern, and soft-close seat, all crafted from high-quality vitreous china for durability and long-lasting performance.

Finished in white, it blends perfectly with traditional bathroom interiors while ensuring comfort and hygienic use.

Product Information

• Product Type: Close Coupled WC Set
• Includes: Pan, Cistern, and Seat
• Finish: White
• Installation Type: Floor-Mounted
• Pan Trap Style: P-Trap
• Operating Type: Lever Flush
• Warranty: 5 Years (Manufacturer)

Overall Dimensions

• Size [mm]: 470 x 690 x 820mm (Width x Projection x Height)
• Size [cm]: 47 x 69 x 82cm (Width x Projection x Height)

WC Pan Details (NCS880)

• Size [mm]: 353 x 450mm (Width x Height)
• Size [cm]: 35.3 x 45cm (Width x Height)
• Projection from Wall: 684mm (68.4cm)
• Trap Style: P-Trap
• Weight: 20.42kg

Cistern Details (NCS881A)

• Operating Type: Lever
• Lever Type: Standard Chrome-Plated
• Cistern Fittings: Loose Single 6L
• WRAS-Approved Cistern
• Size [mm]: 470 x 180 x 362mm (Width x Depth x Height)
• Size [cm]: 47 x 18 x 36.2cm (Width x Depth x Height)

Seat Details (NTS010)

• Type: Soft-Close, Round Seat
• Material: Polypropylene
• Fixing Method: Bottom Fixing
• Hinge Centres: 120–180mm (Min–Max)
• Size [mm]: 350 x 429 x 48mm (Width x Depth x Height)
• Size [cm]: 35 x 42.9 x 4.8cm (Width x Depth x Height)

Manufacturing Details

• Manufacturing Code: CCT003
• Download Customer Datasheet: Available

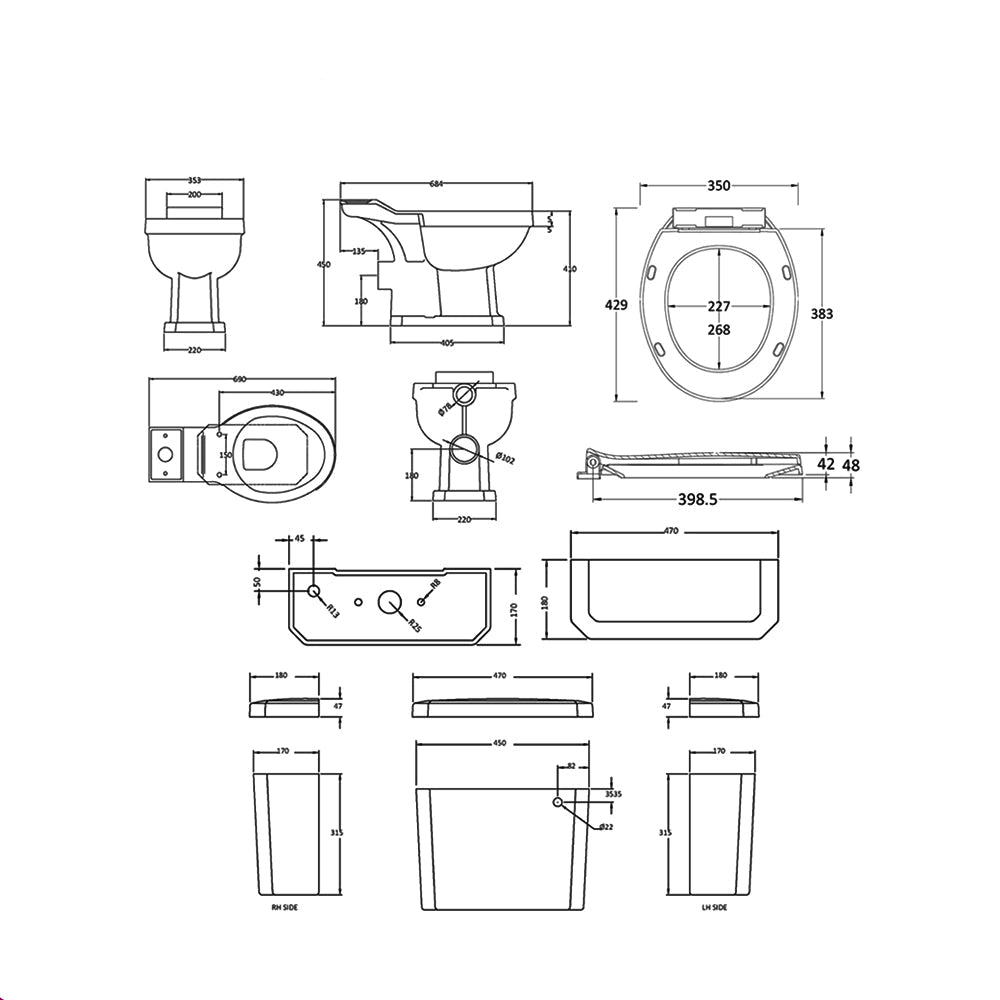

• Refer to Technical Drawing for Size Details

Key Features

✔ Pack Includes: Pan, Cistern, and Seat
✔ Traditional Classic Design
✔ Manufactured from High-Quality Vitreous China
✔ Lever-Operated WRAS-Approved Cistern
✔ Soft-Close Polypropylene Seat
✔ P-Trap Pan for Easy Installation
✔ 5-Year Guarantee from Nuie
