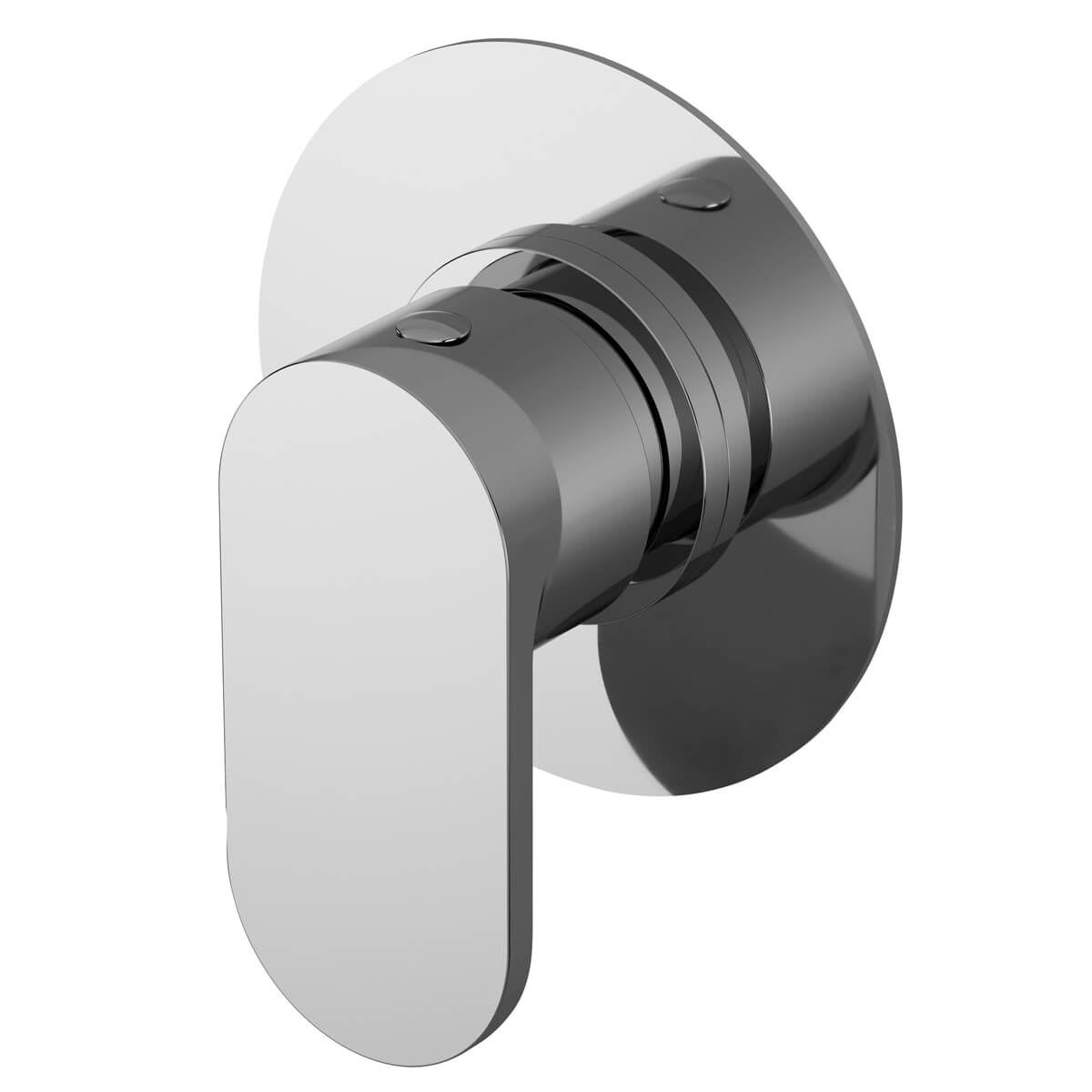

Nuie Binsey 2-3-4 Way Concealed Diverter

Nuie Binsey 2-3-4 Way Concealed Diverter is made in Britain and manufactured using high-quality brass material. It is suitable for low-pressure water systems and can be installed vertically or horizontally.

It comes with a patented Valquest cartridge and offers accurate flow control and full thermal protection to prevent scalding.

Product Details

• Manufacturing Code: BINWD14
• Size (mm): 100 x 135 x 100 (Width x Depth x Height)
• Size (cm): 10 x 13.5 x 10 (Width x Depth x Height)
• Wall-Mount Cavity: Min.78mm (7.8cm) and Max.104mm (10.4cm)
• Finish: Chrome
• Made in Britain
• Round Shape Back-Plate
• Includes 1 Lever Handle
• Installation Type: Recessed and Wall
• Suitable for Concealed Installation
• Supplied with Valve and Cartridge
• Number of Outlets: 4
• Inlet and Outlet Connection: G.1/2
• Pipe Size: 15mm (1.5cm) (1/2-Inch BSP)
• Suitable for Low-Pressure Water System
• Requires 0.2 Bar Operating Water Pressure
• 1/4-Turn Ceramic Cartridge Disc Technology for Long Life and Smooth Operation
• Designed for Use with Thermostatic Temperature Control and Concealed Stop Tap – Sold Separately

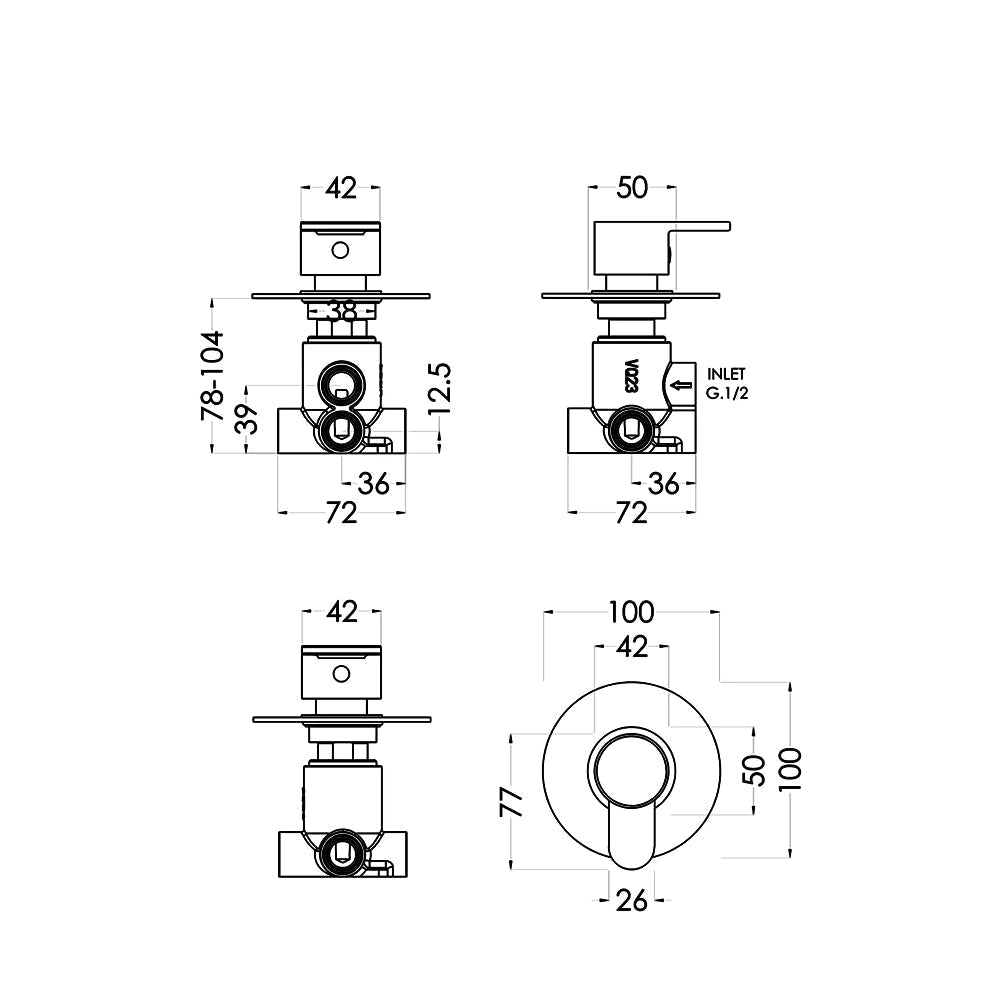

• Refer to the Technical Drawing for Size Details
• 5-Year Guarantee from Nuie against Manufacturing Defects

Size (mm)

• Width: 100mm
• Depth: 135mm
• Height: 100mm

Key Features

• Constructed using High-Quality Brass Material
• Patented Valquest Cartridge
• Full Thermal Protection to Prevent Scalding
• Stain- and Rust-Resistant Valve
