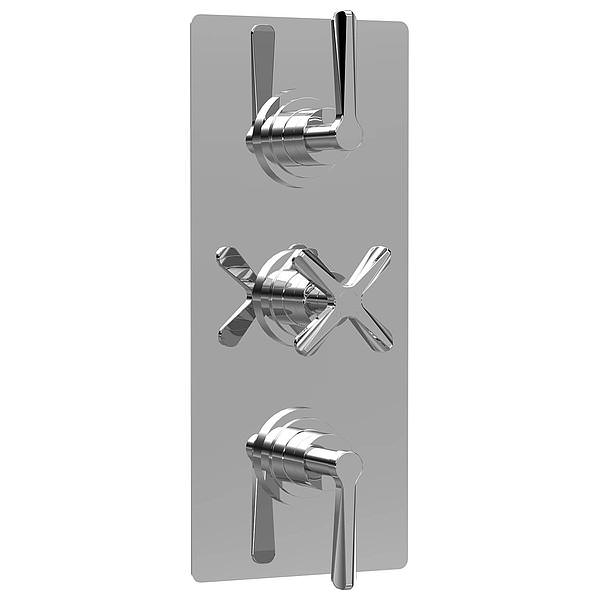

Nuie Aztec Concealed Thermostatic Shower Valve - Rectangular Trim - 2 or 3 Control

Functional, fashionable, and purely efficacious, this is the Nuie Aztec Concealed Triple Shower Valve. It is a WRAS-approved product made from high-grade material and finished in stunning chrome. It features a striking contemporary design with thermostatically controlled safe flow temperature and an open design with triple control.

Manufactured using premium-grade materials, this versatile brassware is suitable for use with all plumbing systems and low-water pressure systems. It is supplied with a rectangular-shaped backplate and can be installed vertically or horizontally in a shower enclosure.

Product Details

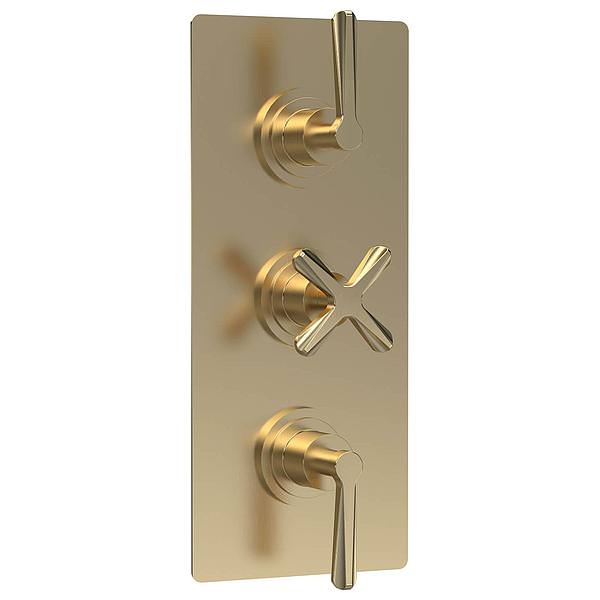

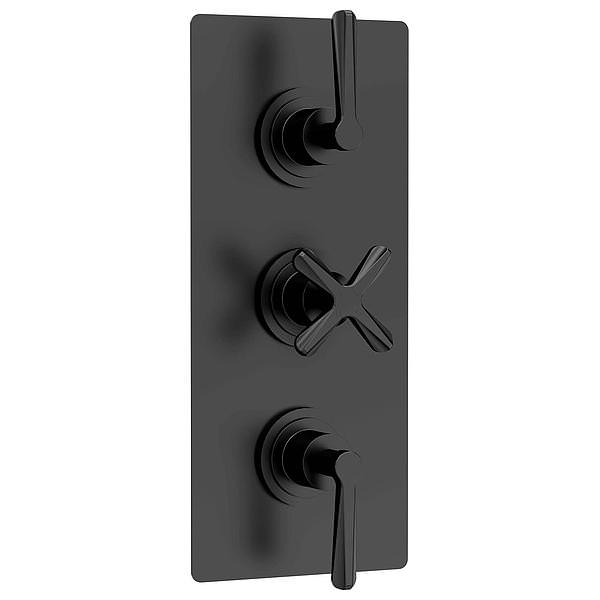

• Choice of Finishes: Chrome, Brushed Brass, Matt Black (Optional)
• Comes Without or With a Diverter (Optional)
• Suitable for Vertical or Horizontal Installation
• Minimalist Sleek Design
• Suitable for Low-Pressure Water System
• Wall-Mount Cavity Required: 72–85mm (7.2–8.5cm)
• Download the Customer Data Sheet PDF File from the Additional Info Section
• Refer to the Technical Drawing for Size Details
• Guarantee: Chrome: 5-Year, Other Finishes: 3-Year

Backplate Size

• Backplate Size (mm): 120 x 280 (Width x Height)
• Backplate Size (cm): 12 x 28 (Width x Height)

Key Features

• Features Accurate Flow Control
• Excellent Flow Rates Even at Low Pressure
• Manufactured from High-Quality Brass and ABS
• Valve/Cartridge Type: 1/4-Turn Ceramic Disc
• Quarter Turn Ceramic Disc Cartridge
• Thermostatic Control to +/- 2 to 3°C Even if Water Pressure Fluctuates
• In the Event of Hot or Cold Water Failure, Valve Shuts Down Water Supply
• Provides Full Thermal Protection and Prevents Scalding
• Patented Cartridge Highly Resistant to Calcium Build-Up
• Suitable for Use with All Systems
• Cartridge Fully Reversible
• Remove the Cartridge, Turn 180°, and Replace

Valve Only

• Pipe Size: 15mm (1/2-Inch BSP)
• Number of Outlets: 2
• Suitable for Low-Pressure Water System
• Requires 0.1 Bar Operating Water Pressure
• WRAS-Approved

Valve With Diverter

• Number of Outlets: 3
• Pipe Size: 15mm and 22mm
• Suitable for Medium-Pressure Water System
• Requires 0.5 Bar Operating Water Pressure
