Nuie Aztec Concealed Thermostatic Shower Valve - Rectangular Trim - 1 or 2 Control

Nuie Aztec 120 x 215mm Concealed Twin Shower Valve is a perfect blend of performance and innovation. The product is compatible with low-pressure water systems, so you do not need to worry about water pressure. Fitted with a lever, a crosshead handle, and a high-quality ceramic cartridge, it is thermostatically enabled to prevent scalding accidents.

The model comes in a range of metallic finishes, including chrome. It is made using top-grade materials and is strong, durable, and easy to install. Its concealed fit gives a seamless finish.

Product Details

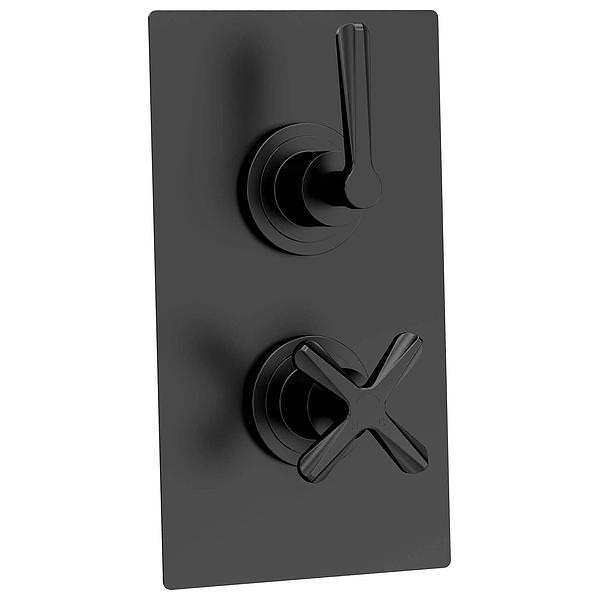

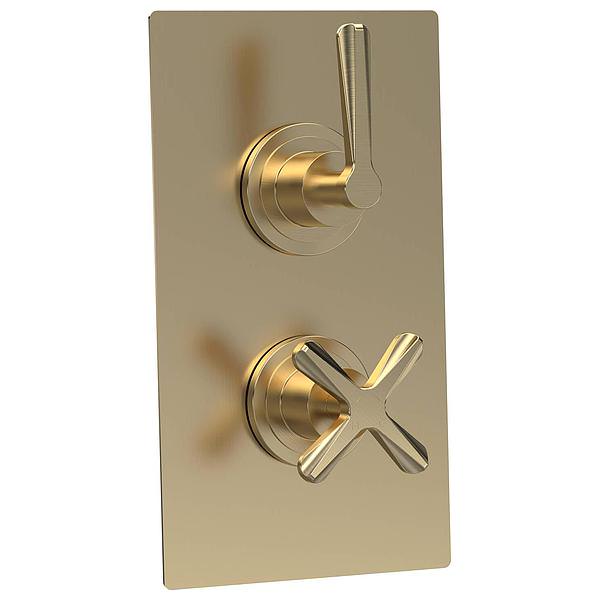

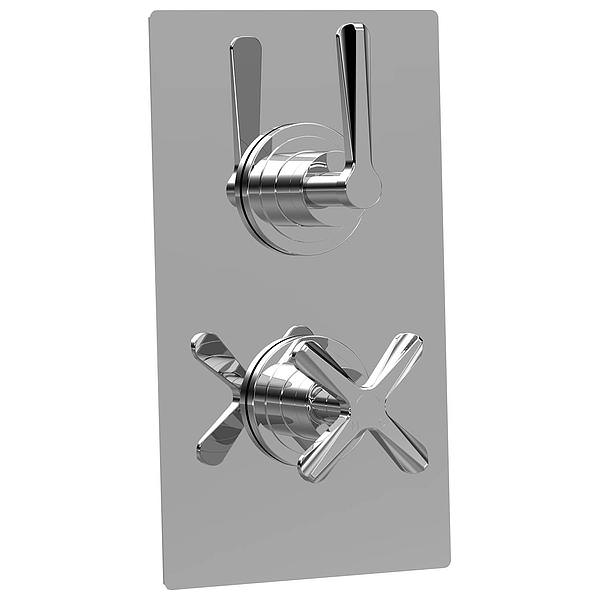

• Choice of Finishes: Chrome, Brushed Brass, Matt Black
• Comes Without or With Diverter (Optional)
• Minimalist Sleek Design
• Suitable for Vertical or Horizontal Installation
• Suitable for Low-Pressure Water System
• Wall Mount Cavity Required: 72–85mm (7.2–8.5cm)
• Download the Customer Data Sheet and Installation Instruction PDF File from the Additional Info Section
• Refer to the Technical Drawing for More Detail
• Guarantee: Chrome: 5-Year, Other Finishes: 3-Year

Backplate Size

• Backplate Size (mm): 120 x 142 x 215 (Width x Depth x Height)
• Backplate Size (cm): 12 x 14.2 x 21.5 (Width x Depth x Height)

Key Features

• Features Accurate Flow Control
• Excellent Flow Rates Even at Low Pressure
• Manufactured from High-Quality Brass and ABS
• Quarter-Turn Ceramic Disc Cartridge
• Thermostatic Control to +/- 2 to 3°C Even if Water Pressure Fluctuates
• Full Thermal Protection to Prevent Scalding
• In the Event of Hot or Cold Water Failure, Valve Shuts Down
• Patented Cartridge Highly Resistant to Calcium Build-Up
• Suitable for Use with All Systems
• Cartridge Fully Reversible
• Remove the Cartridge, Turn 180°, and Replace

Valves Without Diverter

• Pipe Size: 15mm (1/2-Inch BSP)
• Number of Outlets: 1
• Suitable for Low-Pressure Water System
• Requires 0.1 Bar Operating Water Pressure
• WRAS Approved

Valves With Diverter

• Number of Outlets: 2
• Pipe Size: 15mm and 22mm
• Suitable for Medium-Pressure Water System
• Requires 0.5 Bar Operating Water Pressure
