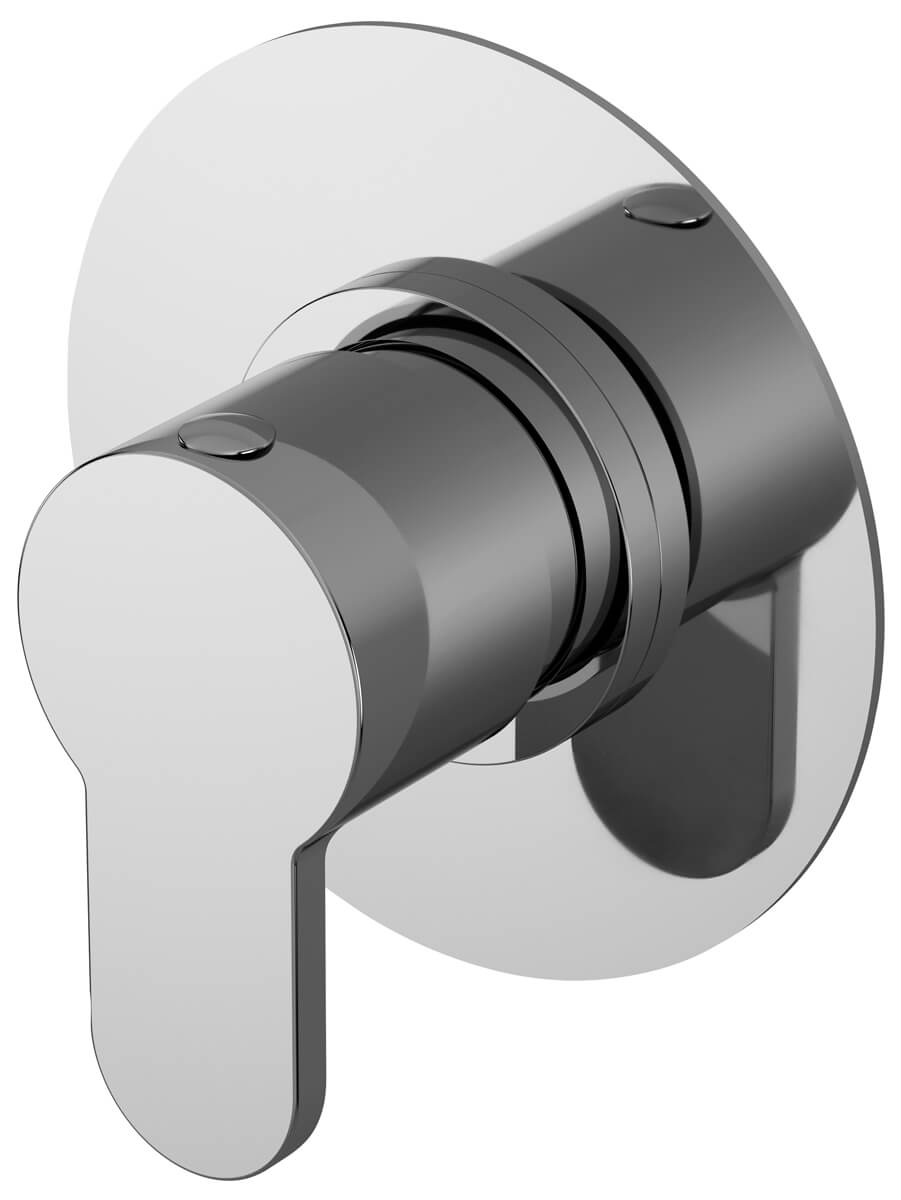

Nuie Arvan Round Concealed 2-3-4 Diverter Way Chrome

Nuie Arvan Round Concealed 2-3-4 Way Diverter is suitable for low-pressure water systems and requires 0.2 bar operating water pressure. Manufactured from brass, it comes in a chrome finish with concealed installation.

It features a round back-plate, single round lever handle and 1/4 turn ceramic cartridge disc technology.

Product Details

• Manufacturing Code: ARVWD14
• Size (mm): 100 x 135 x 100 (Width x Depth x Height)
• Size (cm): 10 x 13.5 x 10 (Width x Depth x Height)
• Wall-Mount Cavity: Min.75mm (7.5cm) and Max.100mm (10cm)
• Installation Type: Concealed
• Finish: Chrome
• Round Shape Back-Plate
• Number of Outlets: 4
• Single-Round Lever Handle
• Inlet and Outlet Connection: G.1/2
• Pipe Size: 15mm (1.5cm) (1/2-Inch BSP)
• Suitable for Low-Pressure Water System
• Requires 0.2 Bar Operating Water Pressure

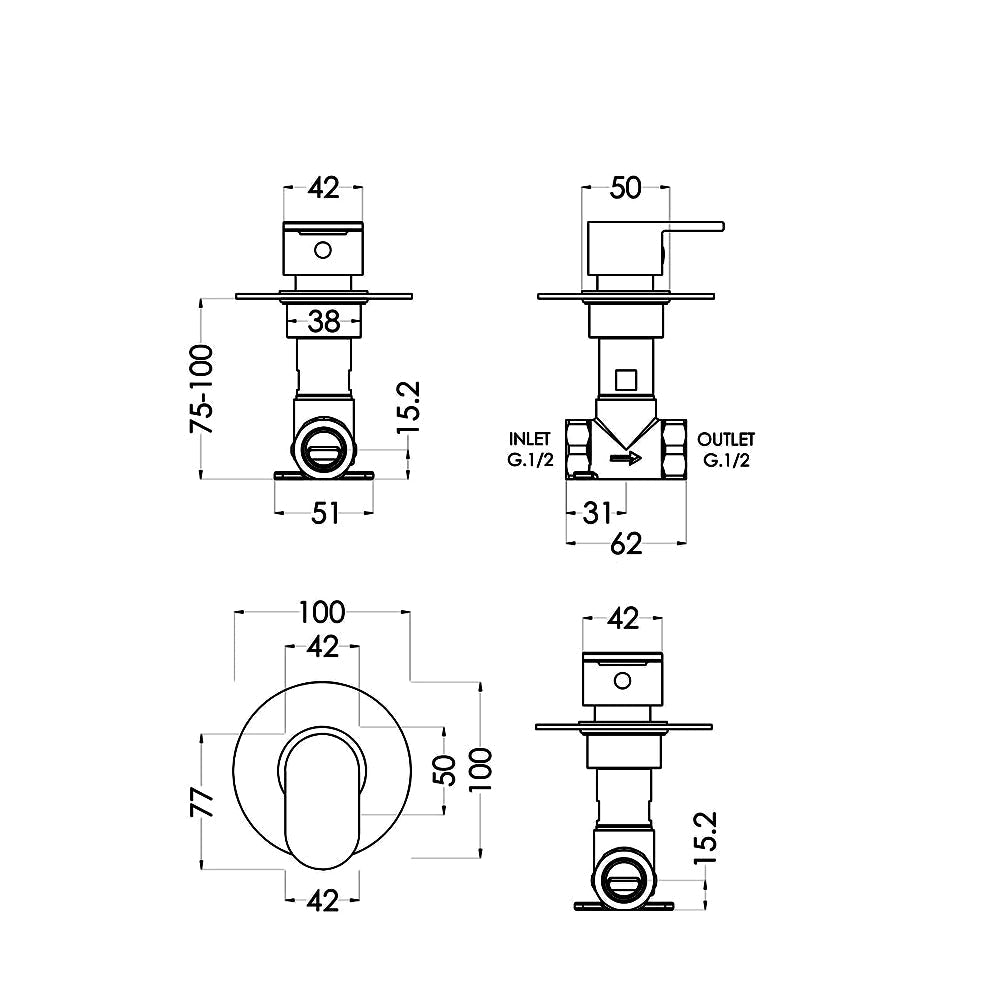

• Refer to the Technical Drawing for Size Details
• 5-Year Guarantee from Nuie Against Manufacturing Defects

Size (mm)

• Width: 100mm
• Depth: 135mm
• Height: 100mm

Key Features

• Supplied with Valve and Cartridge
• Manufactured Using High-Quality Brass Material
• Stain- and Rust-Resistant Valve
• 1/4-Turn Ceramic Cartridge Disc Technology for Long Life and Smooth Operation
