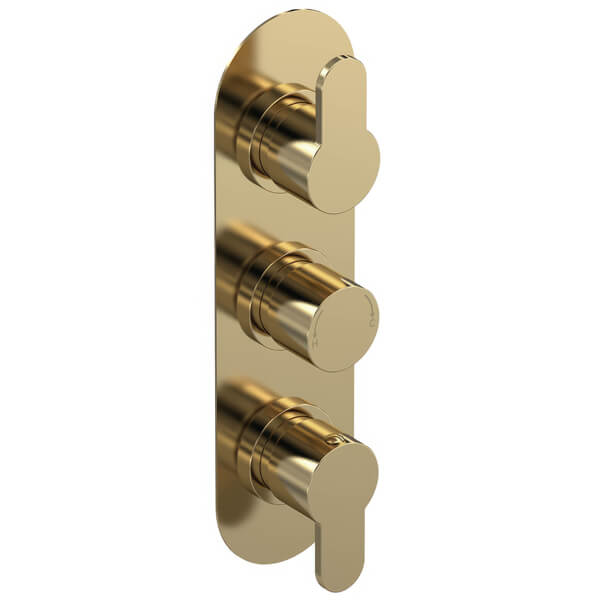

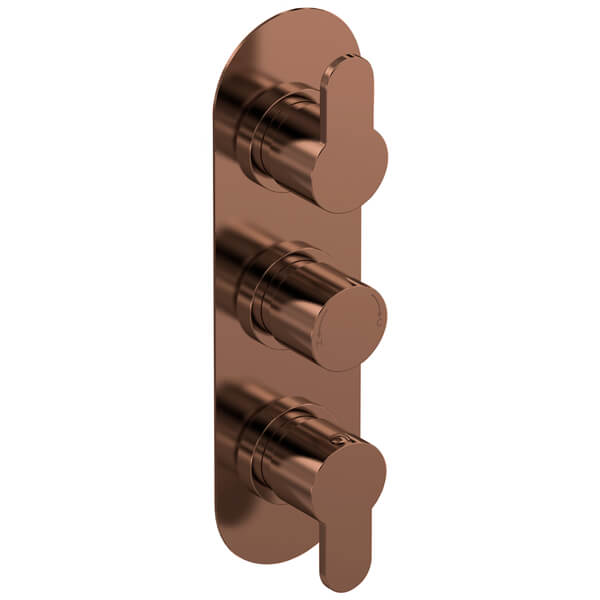

Nuie Arvan Contemporary Concealed Thermostatic Shower Valve - Oval Trim - 3 Control

Nuie Arvan Concealed Round Thermostatic Triple Shower Valve is a compact and modern bathroom fitting with smart control. It comes with three shower valve handles to give full control of water rate and heat. It is fitted with a thermostatic cartridge that provides safe showering and accurate flow control.

Made from solid brass and ABS, it has a width of 80mm, depth of 136mm, and height of 280mm. It comes with a five-year guarantee on chrome and three-year on other finishes from Nuie against manufacturing defects.

Product Details

• Choice of Finishes: Chrome, Matt Black, Brushed Brass, Brushed Pewter, Brushed Bronze (Optional)
• Choice of Variants: Without Diverter or With Diverter (Optional)
• Installation: Recessed and Wall
• Wall-Mount Cavity: Min. 72mm (7.2cm) and Max. 85mm (8.5cm)
• Valve Handle Shape: Lever and Round
• Number of Handles: 3 (Lever and Square Handle Style)
• Can Be Fitted Vertically or Horizontally
• Download the Customer Data Sheet and Installation Instruction PDF Files from the Additional Info Section
• Refer to the Technical Drawing for Size Details
• Guarantee: 5-Year on Chrome and 3-Year on Other Finishes

Size Details

• Size (mm): 80 x 135 x 280 (Width x Depth x Height)
• Size (cm): 8 x 13.5 x 28 (Width x Depth x Height)
• Valve Size (mm):

• • Width: 80

  • Depth: 136

  • Height: 280

Key Features

• Supplied with Valve and Cartridge
• Stain- and Rust-Resistant Valve
• Accurate Flow Control Thermostatic Valve
• Manufactured Using High-Quality Brass and ABS Material
• Includes 3 Shower Valve Handles
• Full Thermal Protection to Prevent Scalding
• Thermostatic Control to +/- 2° Even if Water Pressure Fluctuates
• 1/4-Turn Ceramic Disc Cartridge Valve
• Patented Cartridge Highly Resistant to Calcium Build-Up
• Suitable for Use with All Systems
• Cartridge Fully Reversible
• Remove the Cartridge, Turn 180°, and Replace
• Excellent Flow Rates

Valves Without Diverter

• Inlet and Outlet Connection: G1/2-Inch
• Pipe Size: 15mm (1.5cm) and 22mm (2.2cm)
• Number of Outlets: 2
• Suitable for Low-Pressure Water System
• Requires 0.1 Bar Operating Water Pressure
• WRAS-Approved

Valves With Diverter

• Inlet and Outlet Connection: G3/4-Inch
• Number of Outlets: 3
• Pipe Size: 22mm (2.2cm) (3/4-Inch BSP)
• Suitable for Medium-Pressure Water System
• Requires 0.5 Bar Operating Water Pressure
