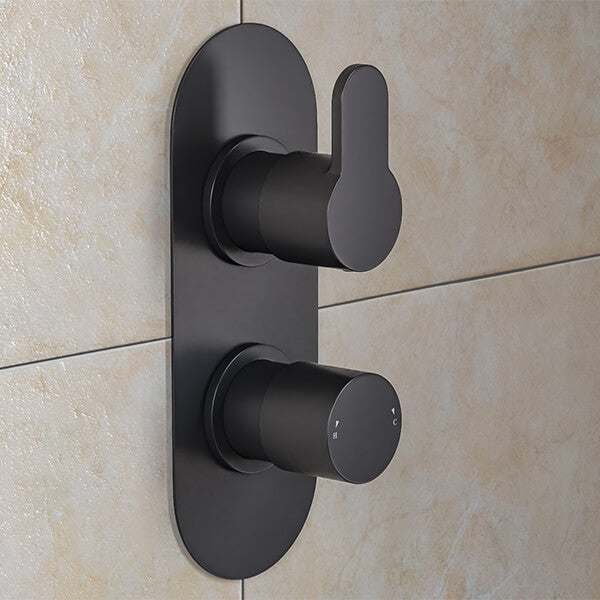

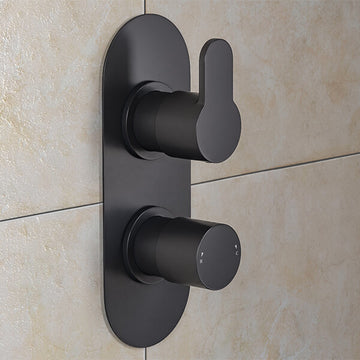

Nuie Arvan Contemporary Concealed Thermostatic Shower Valve - Oval Trim - 2 Control

Nuie Arvan Twin Thermostatic Concealed Shower Valve has a striking, futuristic design and doubles your convenience. It can be purchased without or with a diverter and comes with an overall width of 80mm, depth of 136mm, and height of 215mm. It is supplied with a valve and cartridge and has a minimalist sleek design.

Designed for convenience, the concealed valve has high-quality brass and ABS construction and can be installed on the wall or recessed. Accurate flow control thermostatic valve offers full thermal protection to prevent scalding in the event of hot or cold water shut off.

Product Details

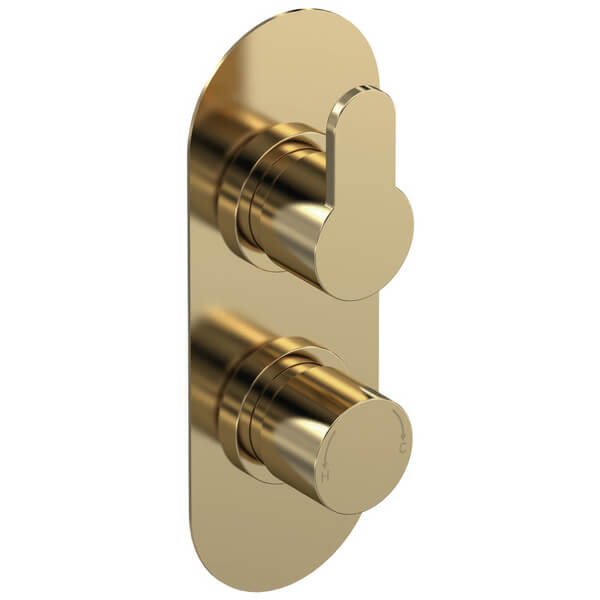

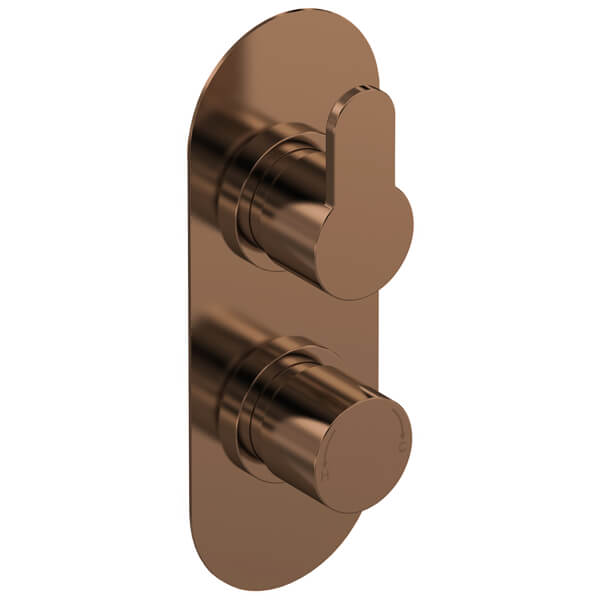

• Choice of Finishes: Chrome, Matt Black, Brushed Brass, Brushed Pewter, Brushed Bronze (Optional)
• Choice of Variants: With Diverter or Without Diverter (Optional)
• Installation Type: Recessed and Wall
• Number of Handles: 2
• Wall-Mount Cavity: Min. 72mm (7.2cm) and Max. 85mm (8.5cm)
• Can Be Fitted Vertically or Horizontally
• Refer to the Technical Drawing for Size Details

• Guarantee: 5-Year on Chrome and 3-Year on Other Finishes

Size Details

• Overall Size (mm): 80 x 136 x 215 (Width x Depth x Height)
• Overall Size (cm): 8 x 13.6 x 21.5 (Width x Depth x Height)
• Valve Size (mm):

• • Width: 80

  • Depth: 136

  • Height: 215

Key Features

• Stain- and Rust-Resistant Valve
• Supplied with Valve and Cartridge
• Accurate Flow Control Thermostatic Valve
• Manufactured Using Brass and ABS Material
• Thermostatic Control to +/- 2° Even if the Water Pressure Fluctuates
• 1/4-Turn Ceramic Cartridge Disc
• Suitable to Use in Combination with Concealed Shower
• Patented Cartridge Highly Resistant to Calcium Buildup
• Suitable for Use with All Systems
• Full Thermal Protection to Prevent Scalding
• Cartridge Fully Reversible
• Remove the Cartridge, Turn 180°, and Replace

Valve Without Diverter

• Inlet and Outlet Connection: G1/2-Inch
• Number of Outlets: 1
• Pipe Size: 15mm (1.5cm) (1/2-Inch BSP)
• Excellent Flow Rates at Low Pressure
• Suitable for Low-Pressure Water System
• Requires 0.1 Bar Operating Water Pressure
• WRAS-Approved

Valve With Diverter

• Number of Outlets: 2
• Inlet and Outlet Connection: G3/4-Inch
• Pipe Size: 22mm (2.2cm) (3/4-Inch BSP)
• Suitable for High-Pressure Water System
• Requires 0.5 Bar Operating Water Pressure
