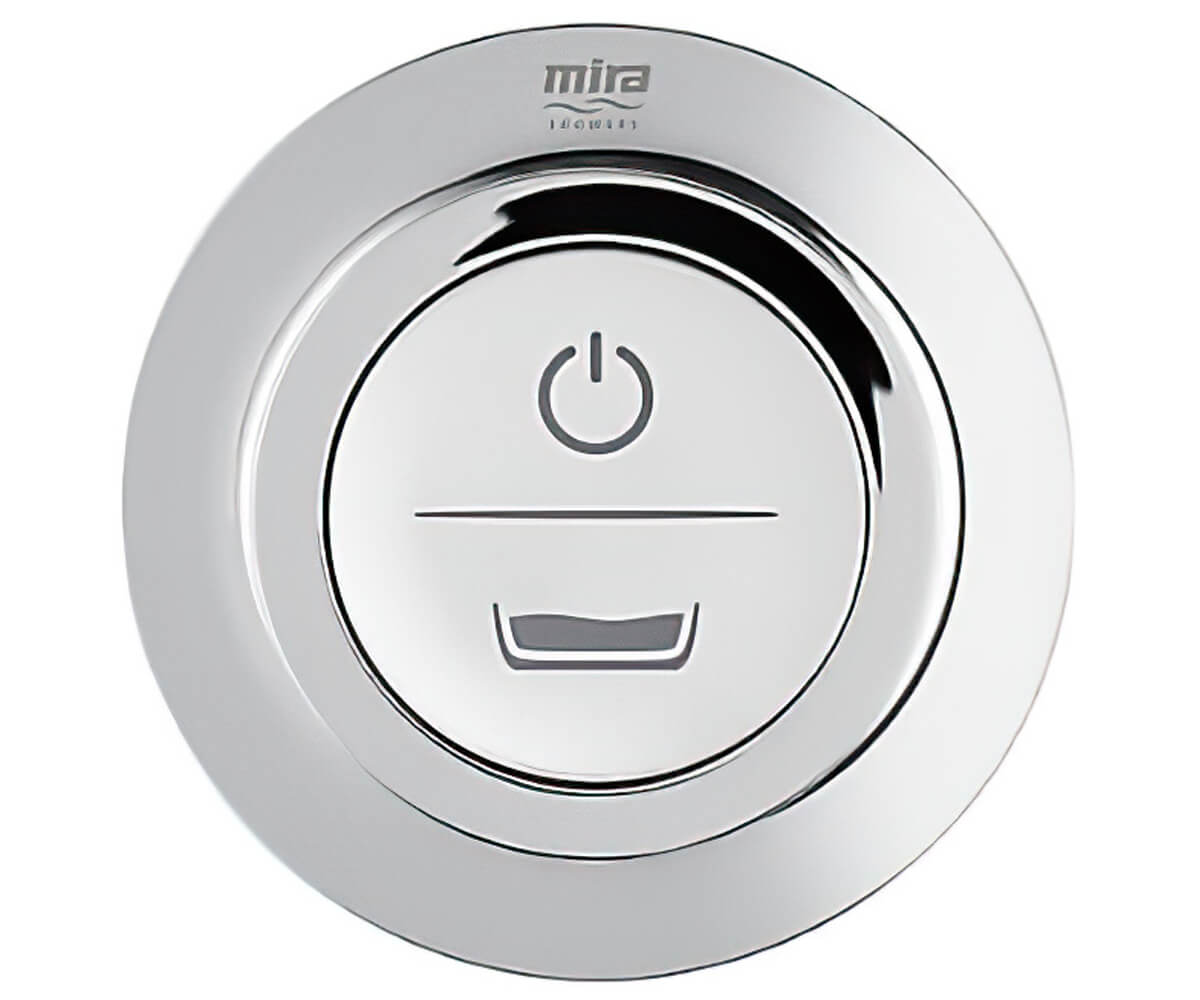

Mira Mode Chrome Digital Bath Filler

The Mira Mode Digital Bath Filler combines striking design with high performance. Manufactured from high-quality materials, it features contemporary styling and a chrome finish. It is suitable for high- and low-pressure systems and provides thermostatic temperature stability with digital intelligence and indicator signals.

This bath filler includes a maximum temperature setting for safety, replaceable check valves and filters, push-fit isolators, and a rotary temperature control dial. Bath fill options can be personalised using the Mira Mode app and it can be paired with reinforced or standard bathtubs.

Key Features

• Thermostatic Temperature Stability with Digital Intelligence
• Indicator Light Signals for Reached Temperature
• Push-Fit Isolators Supplied
• Replaceable Check-Valve and Filters
• WRAS and KIWA UK Approved
• 5-Year Warranty from Mira
• Choice of Pressure Types: High Pressure / Pumped (Gravity)
• Finish: Chrome
• Suitable for All Systems
• Maximum Temperature Setting for Safety
• Rotary Temperature Control Dial
• Personalised Bath Fill via Mira Mode App

Technical Specifications

• Water Entry Points: Overflow Bath Filler
• Inlet Connections: 15mm Push Fit (Supplied) / 15mm Compression
• Outlet Connection: 15mm Push Fit (Supplied)
• Data Connection: Low Voltage Data Cable
• Supply Voltage: 230V (+10%)
• Supply Rating: 3 Amp Plug
• Factory Set Maximum Temperature: 45°C

Pressure Requirements

Minimum Maintained Pressure

• Pumped: 0.01 Bar (10cm Head)
• High Pressure: 0.5 Bar (5m Head)

Maximum Maintained Pressure

• Pumped: 1.0 Bar (10m Head)
• High Pressure: 5.0 Bar (50m Head)

Maximum Static Pressure

• Pumped: 1.0 Bar (10m Head)
• High Pressure: 10.0 Bar (100m Head)

High Pressure System Details

• Controller Size (mm): 306 x 76 x 286 (Width x Depth x Height)
• Controller Size (cm): 30.6 x 7.6 x 28.6 (Width x Depth x Height)
• Minimum Adjustable Flow Rate: 4 L/Min
• Maximum Flow: 16 L/Min at 1 Bar

Pumped (Gravity) System Details

• Controller Size (mm): 306 x 92 x 286 (Width x Depth x Height)
• Controller Size (cm): 30.6 x 9.2 x 28.6 (Width x Depth x Height)
• Minimum Adjustable Flow Rate: 6 L/Min
• Maximum Flow: 12 L/Min at 0.1 Bar
