Mira Evoco Chrome Thermostatic Dual Outlet Mixer Shower Set

The Evoco Chrome Dual Outlet Thermostatic Shower Mixer is a contemporary shower solution from Mira, designed to deliver safety, style, and performance. Supplied with a handset, fixed deluge head, and flexible hose, this chrome-finished unit is suitable for all plumbing systems, including low-pressure systems.

Its thermostatic mechanism ensures stable water temperature, while push-button controls allow easy selection between handset, overhead shower, or both. Designed for simple and secure installation, it provides reliable long-term performance.

Product Specifications

• Manufacturing Code: 1.1967.001
• Finish: Chrome
• Control Type: Thermostatic
• Flow Actuation: Push-Button
• Separate Flow and Temperature Controls
• Maximum Temperature Stop with Override
• Factory Set to Safe Maximum Temperature
• Automatic Shutdown within 2 Seconds
• Works on All Systems, Including Low Pressure
• Integrated Push-Fit Connections
• Spanner-Free Installation
• Suitable for Rear Wall and Noggin Installations

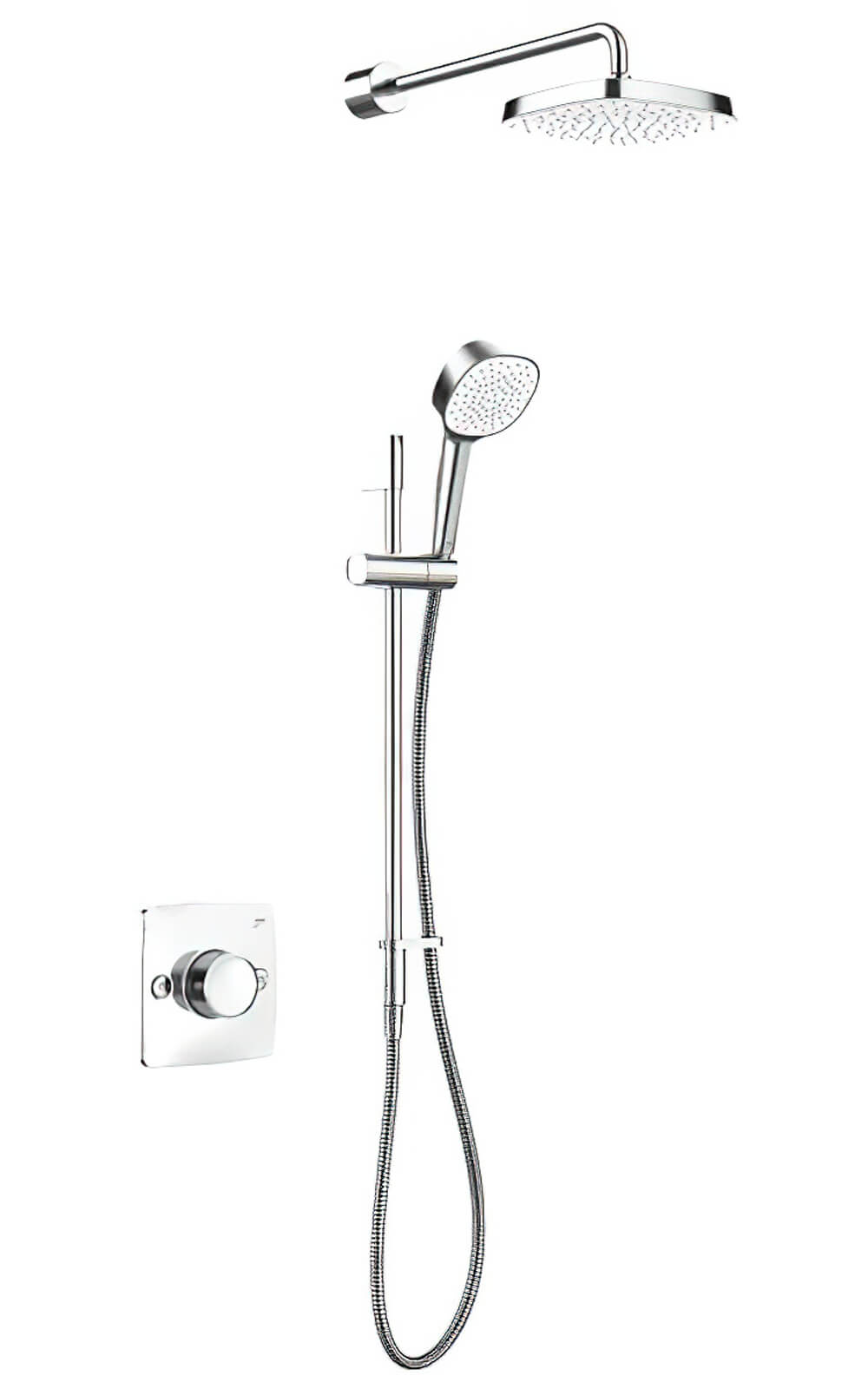

Shower Components

• 110mm Hand Shower with Rub-Clean Nozzles
• 200mm Deluge Shower Head with Rub-Clean Nozzles
• 1250mm Flexible Shower Hose
• Rail Height: 550mm
• Arm Length: 420mm

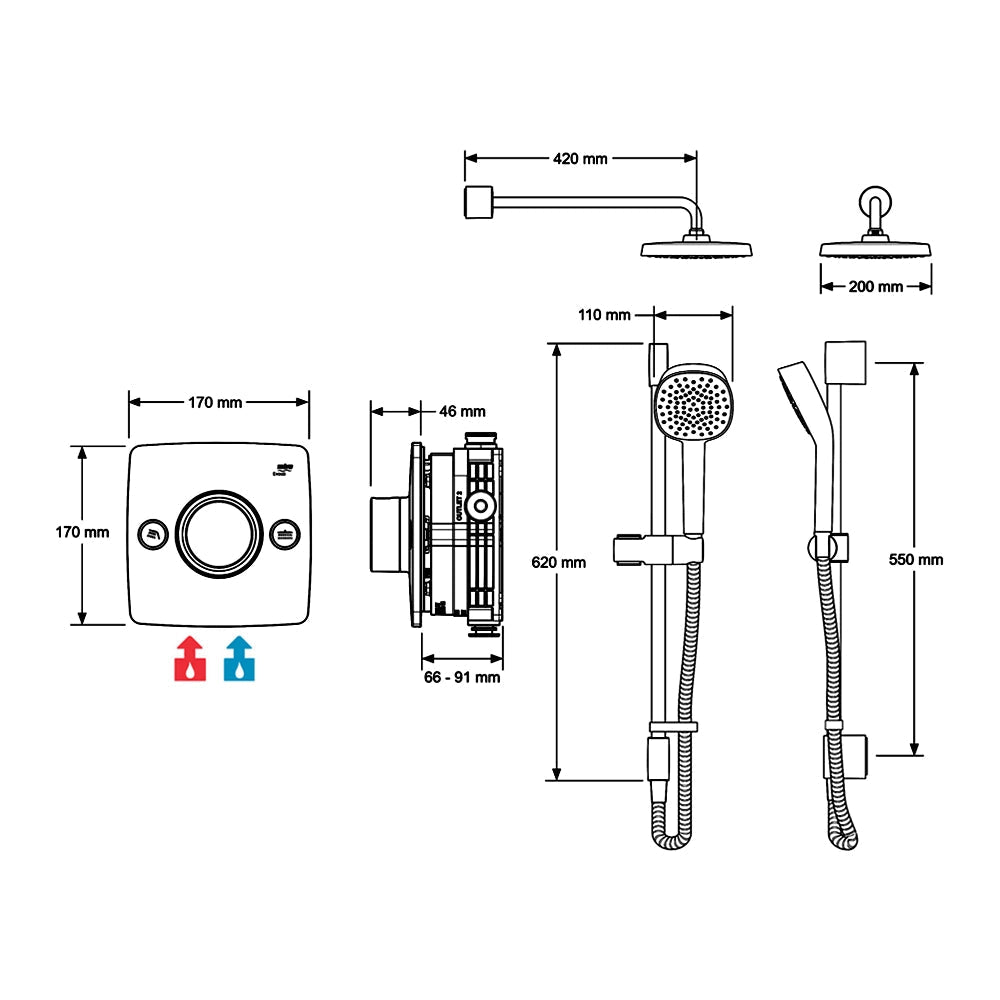

Valve Dimensions

• Size (mm): 170 x 46 x 170 (Width x Depth x Height)
• Size (cm): 17 x 4.6 x 17 (Width x Depth x Height)

Technical Specifications

• Water Entry Points: Bottom Only
• Inlet Connections: 15mm Push-Fit
• Outlet Connections: 15mm Copper Pipework
• Reversed Inlets: Not Supported (Hot Left / Cold Right)
• Flow Regulator: 9 L/Min (x2 Supplied)
• Temperature Stability: ±2°C
• Cold Water Range: 1°C to 25°C
• Hot Water Range: Min 55°C / Recommended 60°C–65°C

Pressure & Performance

• Flow at 0.5 Bar:
• Handset: 8.24 L/Min
• Deluge: 9.78 L/Min
• Minimum Pressure:
• Gas Heater: 1 Bar
• Gravity System: 0.1 Bar
• Maximum Maintained Pressure: 5.0 Bar
• Maximum Static Pressure: 10.0 Bar

Key Features

• Mira Cool Shield™ Technology
• Mira Magni-Flo™ Technology (Up to 3x More Flow)
• KIWA UK, WRAS, TMV2, CE, and UKCA Approved
• 5-Year Warranty from Mira Against Manufacturing Defects
