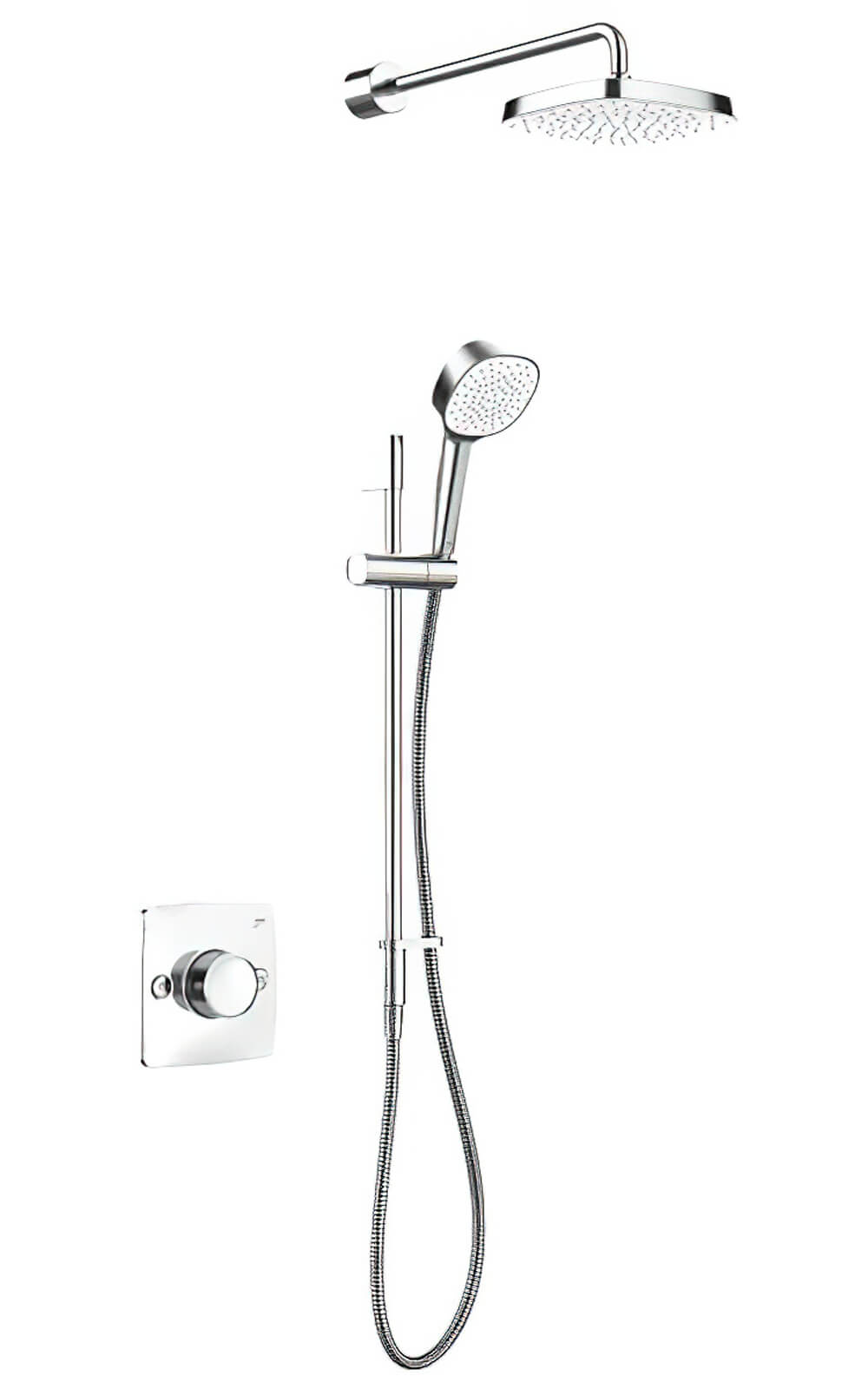

Mira Evoco Chrome Thermostatic Dual Outlet Mixer Shower Set

The Evoco Chrome Dual Outlet Thermostatic Shower Mixer is yet another impressive offering from Mira. The brands latest shower kit, which comprises a long shower hose handset and fixed head, is superbly attractive in its chrome finish. The best part is this high-quality brassware is suitable for all plumbing systems, even at low pressure. Designed in a contemporary style.

Its thermostatic mechanism makes it extremely safe to use. High in utility value, this product is ideal for those who like it simple and classy. For under £300, this unit covers all the essentials and then some that you would normally only find on more expensive models. It's a great, serviceable product.

The Manufacturing Code of this Product is 1.1967.001
It Comes in a Chrome Finish
Thermostatic Temperature Stability

Key Features

• Mira Cool Shield™ to Ensure the Valve doesn’t Get Hot During Showering
• Mira Magni-Flo™ Technology Delivers up to 3x More Flow, Even at Low Pressure
• KIWA UK, WRAS, TMV2, CE and UKCA Approved Product
• 5-Year Warranty from Mira Against Manufacturing Defects

Product Details

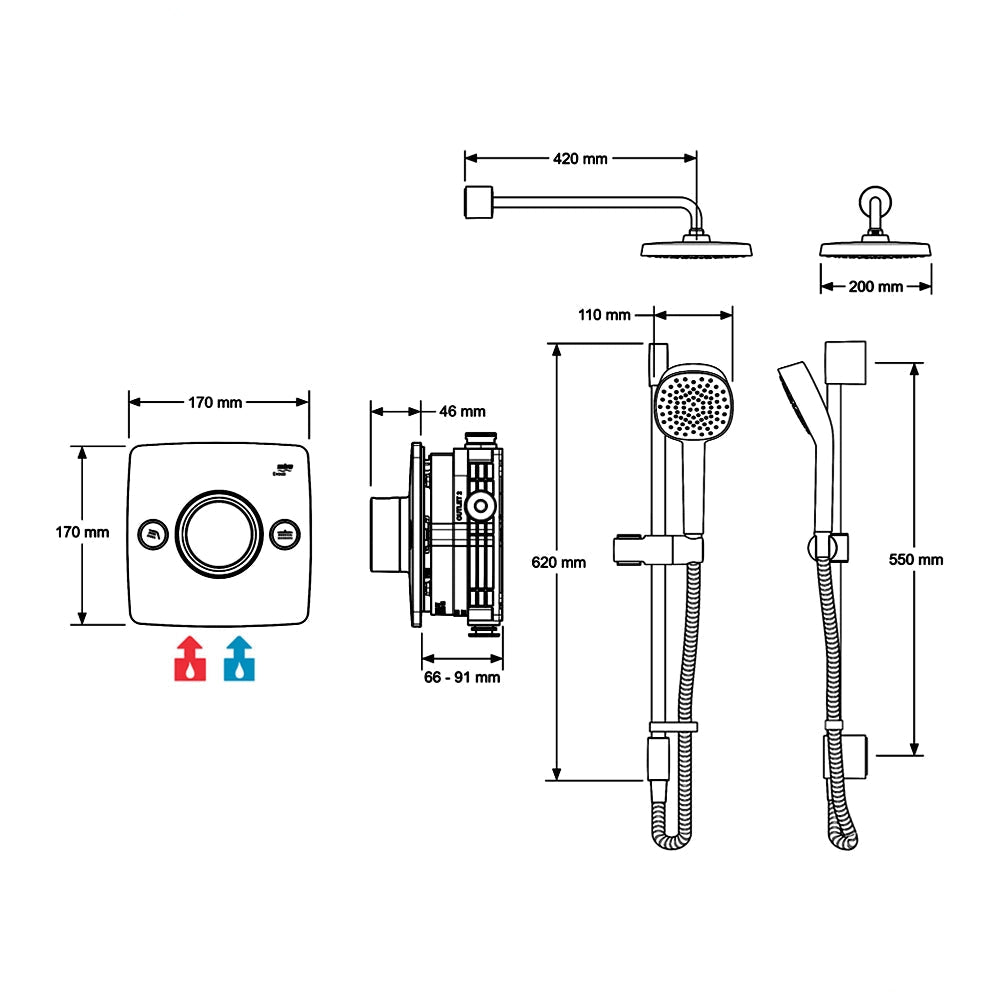

• 1 Spray 110mm (11cm) Shower Head with Rub-Clean Nozzles
• Large 200mm (20cm) Deluge Shower Head with Rub-Clean Nozzles
• 1250mm (125cm) Flexible Shower Hose
• Rail Height: 550mm (55cm)
• Length of Arm: 420mm (42cm)
• Valve Size [mm]: 170 x 46 x 170mm [Width x Depth x Height]
• Valve Size [cm]: 17 x 4.6 x 17cm [Width x Depth x Height]

Installation and Connections

• Integrated Push-Fit Connections Already Included
• Spanner Free Installation
• Mira’s Innovative Installation System Provides a Simple First-Fix Solution
• Protective Cover to Minimise Damage Between First and 2nd Fix
• A Flushing System was Provided to Test Connections Prior to Tiling
• Suitable for the Rear Wall and Noggin Installations
• Works on All Systems, Even at Low Pressure
• Separate Flow and Temperature Controls using Button Actuation
• Maximum Temperature Stop for Increased Safety (with Override for a Hotter Shower)
• Choose your Outlet - Intuitive Push Button Technology Allows you to Select the Handset, Overhead or Both
• Temperature Control Type: Thermostatic
• Flow Actuation: Push-Button
• Water Entry Points: Bottom Only
• Inlet Connections: Direct 15mm (1.5cm) Push-Fit Connections
• Outlet Connections: 15mm (1.5cm) Copper Pipework
• Reversed Inlets Supported: no = Hot Left, Cold Right Only
• Automatic Shutdown: Shutdown within 2 Secs
• Factory Set to Safe Maximum Temperature
• Adjustable Maximum Temperature for On-Site Conditions

Performance

• Flow Rate at 0.5 Bar: 8.24 l/Min (at Handset) and 9.78 l/Min (at Deluge)
• Flow Regulator: 9 l/Min (Supplied with Product - x2)
• Temperature Stability: ± 2°C
• Cold Water Range: 1°C to 25°C
• Hot Water Range: Min 55°C; 60°C - 65°C (Recommended)
• Minimum Maintained Pressure (Gas Water Heater): 1 Bar (10-Metre Head)
• Minimum Maintained Pressure (Gravity System): 0.1 Bar (1-Metre Head)
• Maximum Maintained Pressure: 5.0 Bar (50-Metre Head)
• Maximum Static Pressure: 10.0 Bar (100-Metre Head)
