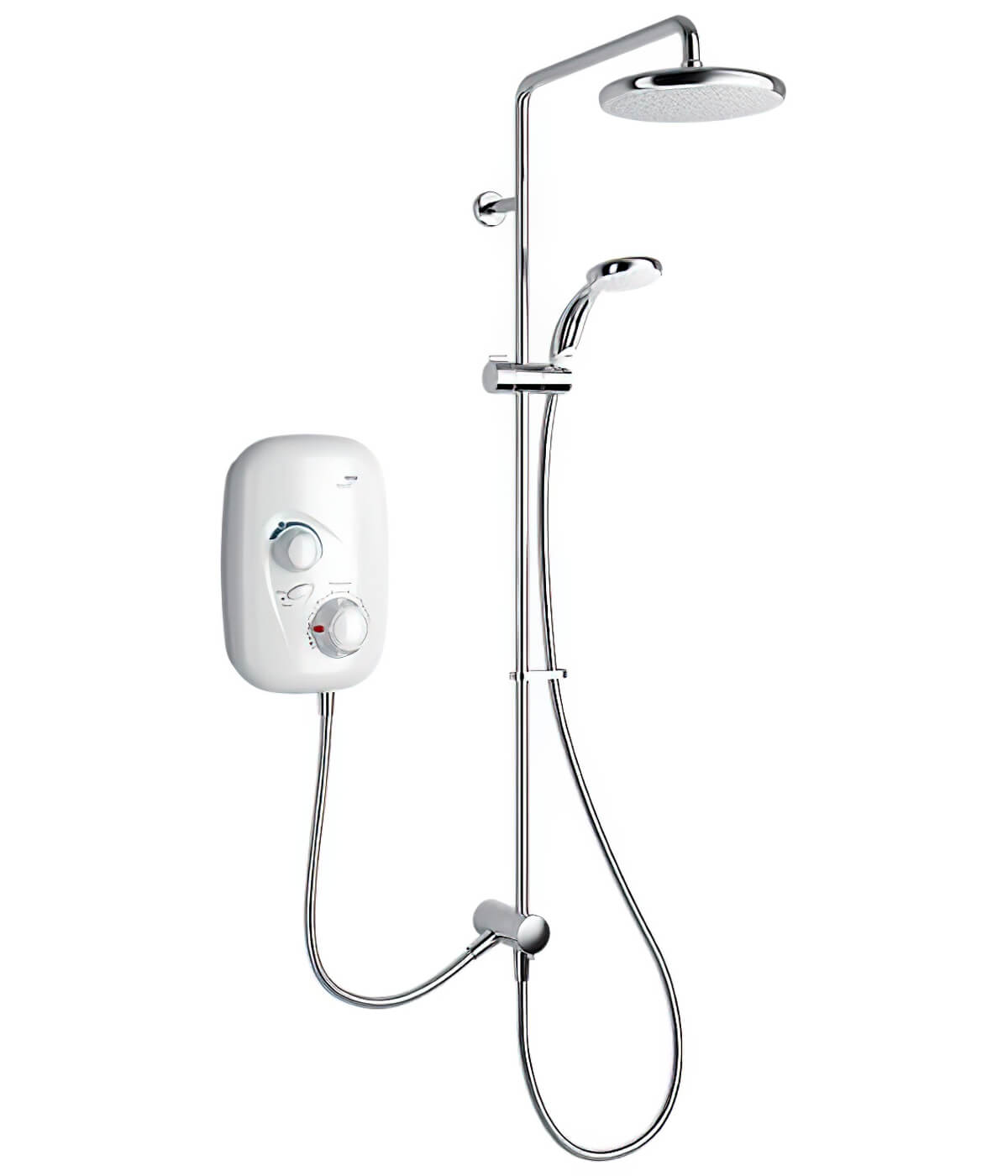

Mira Event XS Dual Outlet Chrome Thermostatic Power Shower

Event XS Dual Outlet Thermostatic Power Shower offers a combination of modern design and efficient performance in a white and chrome finish. Designed to deliver a reliable showering experience, it is suitable for homes with low-pressure water systems and a plentiful supply of hot water. It can replace older Mira Event XS models using the same connections and screw holes.

Product Specifications

• Manufacturing Code: 1.1532.425
• Finish: White and Chrome
• Control Type: Thermostatic
• Dual Outlet – Overhead Deluge and Hand Shower
• Factory Set to Safe Maximum Temperature
• Maximum Temperature Stop
• No Need to Prime
• Accepts Rising, Falling and Rear Supplies
• Removable Filters and Check Valves
• Separate Flow and Temperature Controls with Start/Stop Button
• Temperature Override: Yes

Shower Components

• 200mm Deluge Overhead
• 90mm Single-Mode Hand Shower
• 1250mm Shower Hose

Technical Specifications

• Supply Voltage: 230V ±10%
• Supply Rating: 3 Amp
• Terminal Block: Max 2.5mm²
• Water Entry Points: Left (Rising, Falling, Rear)
• Cable Entry Points: Left (Rising, Falling, Rear)
• Inlet Connections: 15mm Dual Entry Push Fit
• Pipe Centres: 28mm (Hot and Cold)
• Outlet Connection: 1/2" BSP Male
• Minimum Cistern Capacity: 230 Litres
• Cold Water Range: Up to 25°C
• Hot Water Range: 50°C–65°C (Recommended)
• Temperature Stability: ±2°C
• Flow Rate: Up to 14 L/Min (Either Outlet)

Pressure Requirements

• Minimum Maintained Pressure: 0.008 Bar (80mm Head)
• Maximum Maintained Pressure: 0.5 Bar (5m Head)
• Maximum Static Pressure: 1.0 Bar (10m Head)

Key Features

• Automatic Shut Down if Cold Water Fails
• Dual Outlet with Easy Diverter
• CE, BEAB, Kiwa, WRAS and UKCA Approved
• 1-Year Guarantee from Mira Against Manufacturing Defects
