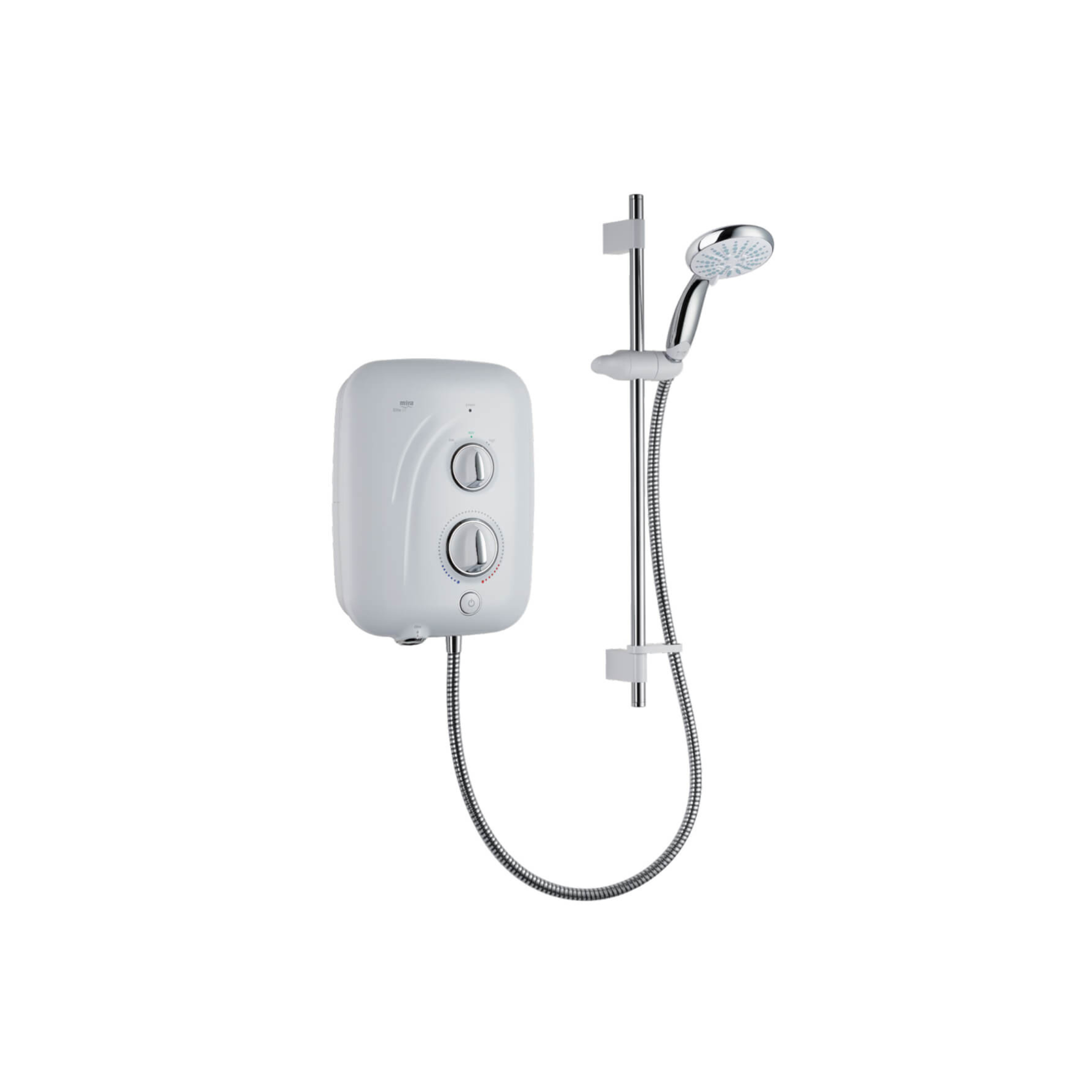

Mira Elite SE Electric Pumped Shower with Slide Rail Kit - White and Chrome

Mira Elite SE Pumped Electric Shower comes in 2 options of 9.8 kW and 10.8 kW. Designed for gravity-fed systems, it comes in White and Chrome finish and has a silent running pumped electric shower. Its slide bar measures 630mm and has a Large four spray shower head for greater coverage. It comes with rub-clean nozzles for ease of cleaning and an adjustable slide bar that fits over holes left by the previous shower kit. An integrated pump boosts your shower on a low-pressure system for quiet and efficient running. Perfect for large households, this unit comes with BEAB and WRAS approval.

Key Features

• Mira Clean-Flo™ - Protect your Shower from debris
• Quiet Mark™ Approved - Awarded to Products Which Make a Huge Difference to Noise in the Home
• BEAB and WRAS Approved Product
• Self-Service Inlet Filter
• Rub Clean Nozzles for Ease of Cleaning
• 2-Year Guarantee from Mira Against Manufacturing Defects

Technical Specifications

• Choice of Power Rating: 9.8KW and 10.8KW
• It Comes in a White and Chrome Finish
• Silent Running Pumped Electric Shower
• Designed for a Gravity-Fed System

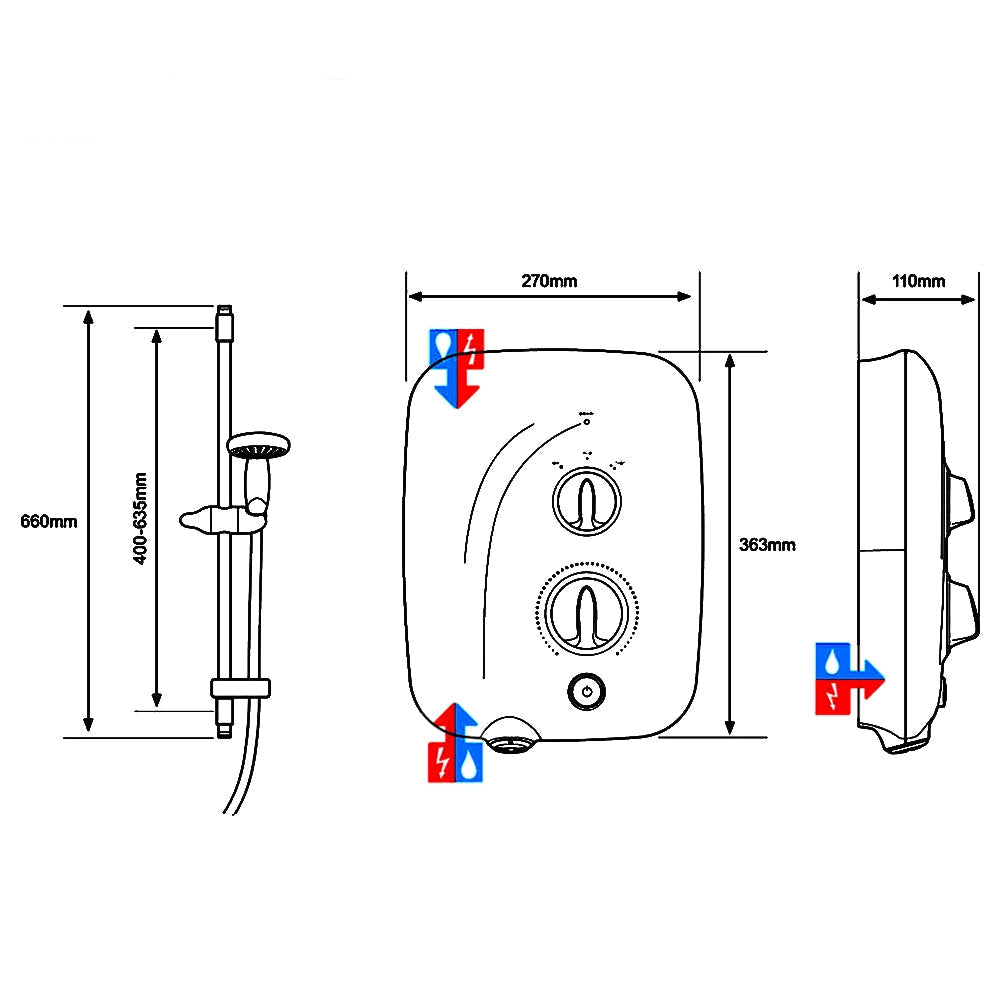

• Height of Slide Bar: 630mm (63cm)
• Fixing Centres: Min. 400mm (40cm) and Max. 635mm (63.5cm)
• Size of Electric Shower Box: 270 x 110 x 363mm [Width x Depth x Height]

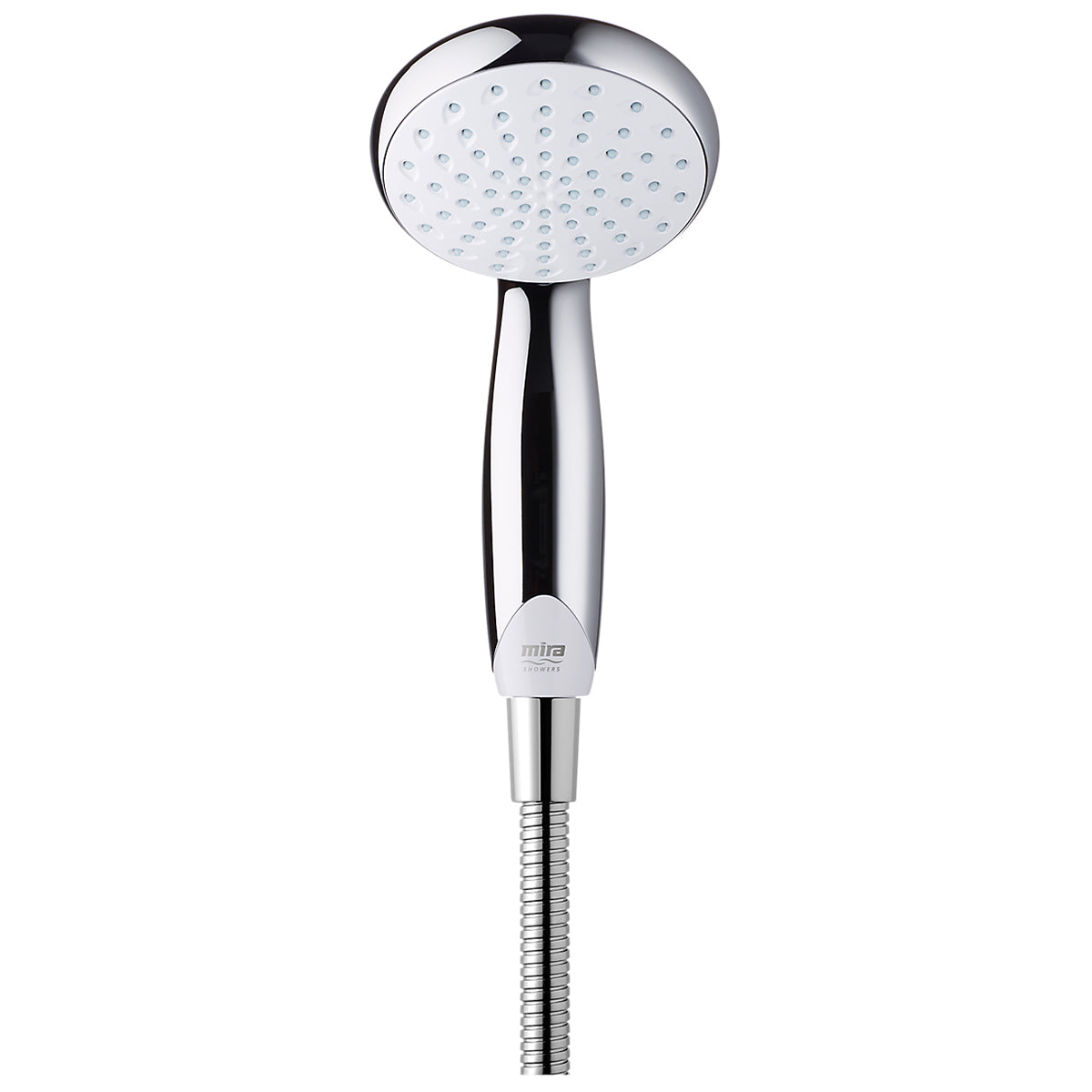

• Large 4-Spray Shower Head for Greater Coverage
• The Adjustable Slide Bar Fits Over the Holes Left by the Previous Shower Kit
• An Integrated Pump Boosts your Shower on a Low-Pressure System
• So Quiet that when the Water is Running, you Won’t Hear the Pump
• Pressure Stabilised Temperature Control
• Supply Voltage: 230V +/- 10%
• Supply Rating: 45 Amp
• Terminal Block: Max. 16mm (1.6cm) Compression

Installation and Connections

• Water Entry Point: Left (Rising, Falling Rear)
• Cable Entry Point: Left (Rising, Falling Rear)
• Cut-Out Removable Case Insert
• Brass Inlet Connector with 15mm (1.5cm) Compression Fitting
• 1/2" BSP Male Outlet Connection

Performance and Safety

• Minimum Maintained Pressure: 0.008 Bar (80mm Head)
• Maximum Maintained Pressure: 1.0 Bar (10m Head)
• Temperature Stability: +/- 6°C
• Energy Efficiency: CLASS A
• Continuously Rated, Meaning you can Run the Shower for as Long as you Need
• Designed for Easy Access and Features Built-In Isolation for Easy Cleaning
• Suitable to use with a Cold Gravity Supply System
• Perfect for Large households
