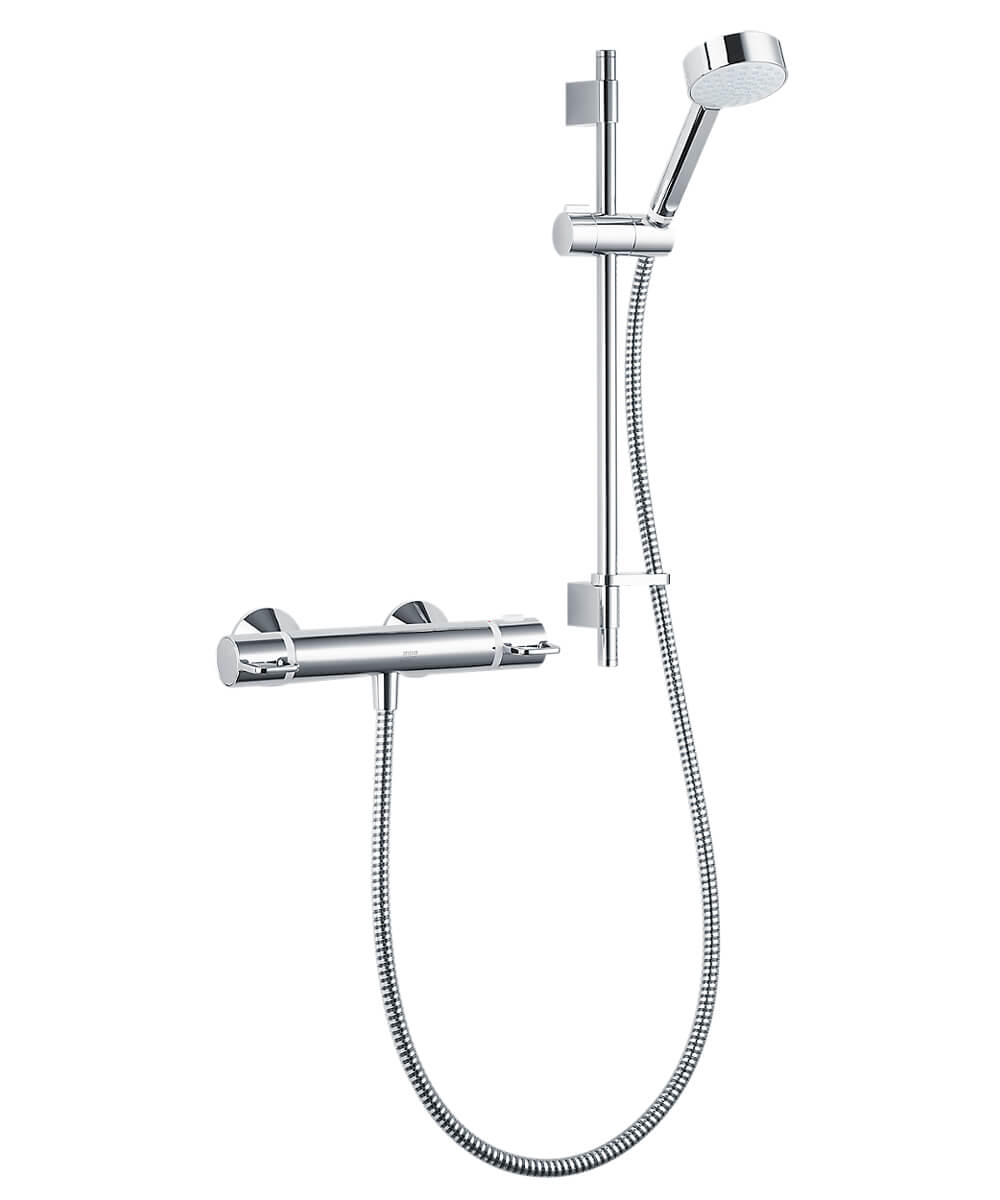

Mira Assist Exposed Thermostatic Chrome Bar Shower Mixer Valve with Slide Rail Shower Kit

Mira Assist Thermostatic Exposed Bar Valve and Slide Rail Kit is designed to provide enhanced safety and reliable temperature control. This sturdy and highly functional shower system helps prevent scalding by maintaining consistent water temperature. Finished in chrome, it combines durability with modern styling.

Approved by WRAS, TMV2, and KIWA UK, this unit ensures safe and efficient performance. Suitable for all pressure systems, it delivers excellent functionality even at low pressure.

Product Specifications

• Manufacturing Code: 1.1900.015
• Finish: Chrome
• Control Type: Dual Control (Separate Temperature and Flow)
• Thermostatic Temperature Stability
• Automatic Shutdown: Within 2 Seconds
• Factory Set Safe Maximum Temperature
• Works on All Systems, Even at Low Pressure
• Flow Control Type: Ceramic
• Reversed Inlets: Not Supported (Hot Left, Cold Right Only)

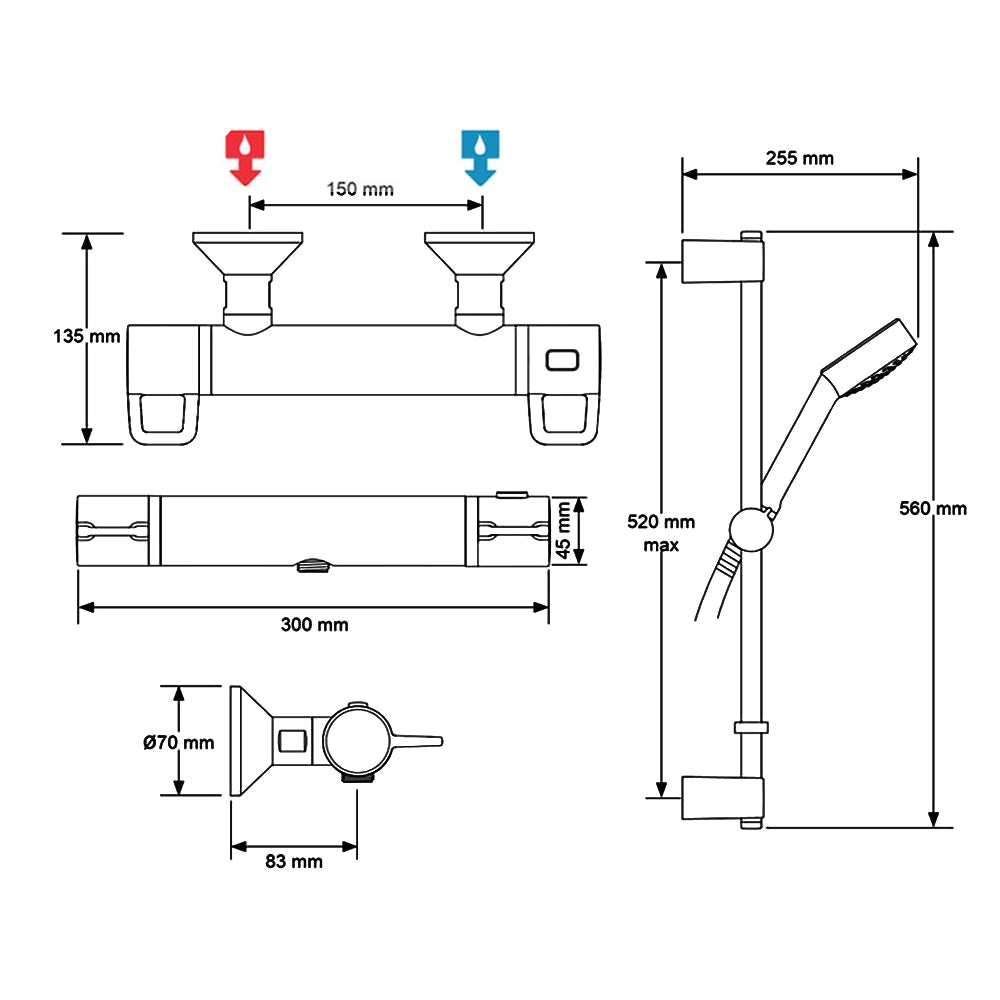

Slider Bar Details

• Size (mm): 255 x 560 (Depth x Height)
• Size (cm): 25.5 x 56 (Depth x Height)
• Fixing Centres: 520mm (Max)
• Adjustable Slide Bar Covers
• Chrome Finish

Shower Handset

• Chrome Finish
• 1 Spray Pattern
• Shower Head Diameter: 90mm
• Rub-Clean Nozzles

Shower Hose

• Flexible Hose
• Length: 1500mm (150cm)

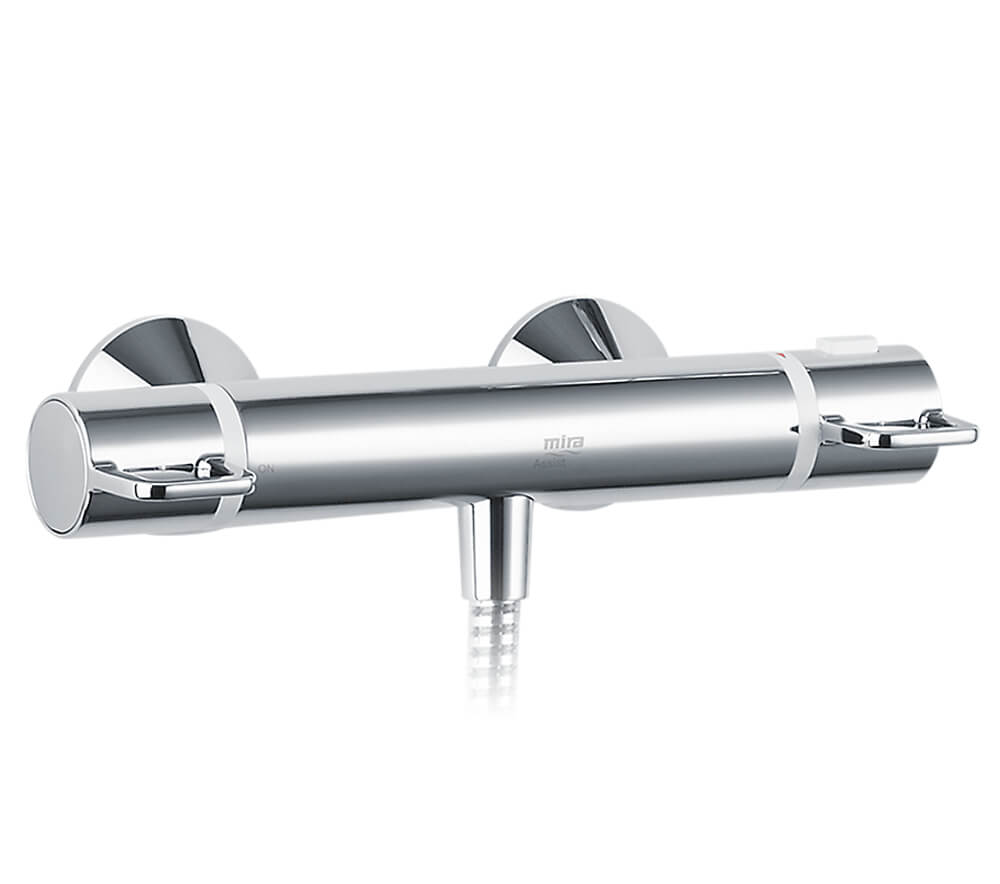

Valve Details

• Exposed Bar Valve
• Size (mm): 300 x 135 (Width x Depth)
• Size (cm): 30 x 13.5 (Width x Depth)
• Separate Flow and Temperature Controls
• Highly Visible Graphics
• Maximum Temperature Stop with Override
• Mira CoolShield™ Protection
• Ergonomic Lever Handles
• Assistive Easy-Grip Controls
• Adjustable Maximum Temperature

Installation Information

• Water Entry Points: Rear Only
• Inlet Connections:
• 15mm Compression Joints
• 3/4" BSP Connection
• Outlet Connection: 1/2" BSP Male
• Fast-Fix Kit Included
• Pipe Spacer Guide Included
• Front Tile Installation System
• Large Long-Life Filters
• Replaceable Cartridge

Water Supply Conditions

• Cold Water Range: 1°C – 25°C
• Hot Water Range: 55°C – 65°C (Recommended)
• Minimum Pressure (Gas Heater): 1 Bar
• Minimum Pressure (Gravity System): 0.1 Bar
• Maximum Maintained Pressure: 5.0 Bar
• Maximum Static Pressure: 10.0 Bar
• Flow Rate (Handset): 9 L/Min at 0.5 Bar
• Flow Regulator: 6 L/Min
• Temperature Stability: ±2°C

Approvals

• WRAS Approved
• TMV2 Approved
• KIWA UK Approved

Key Features

• WRAS, TMV2 and KIWA UK Certified
• Mira CoolShield™ Technology
• Mira Magni-Flo™ Technology (Up to 3x More Flow)
• Separate Temperature and Flow Controls
• Automatic Safety Shutdown
• Suitable for Family Use
• Easy Installation and Maintenance
• 5-Year Guarantee from Mira Against Manufacturing Defects

Package Includes

• Exposed Bar Valve
• Slide Bar
• Hand Shower
• Shower Hose
