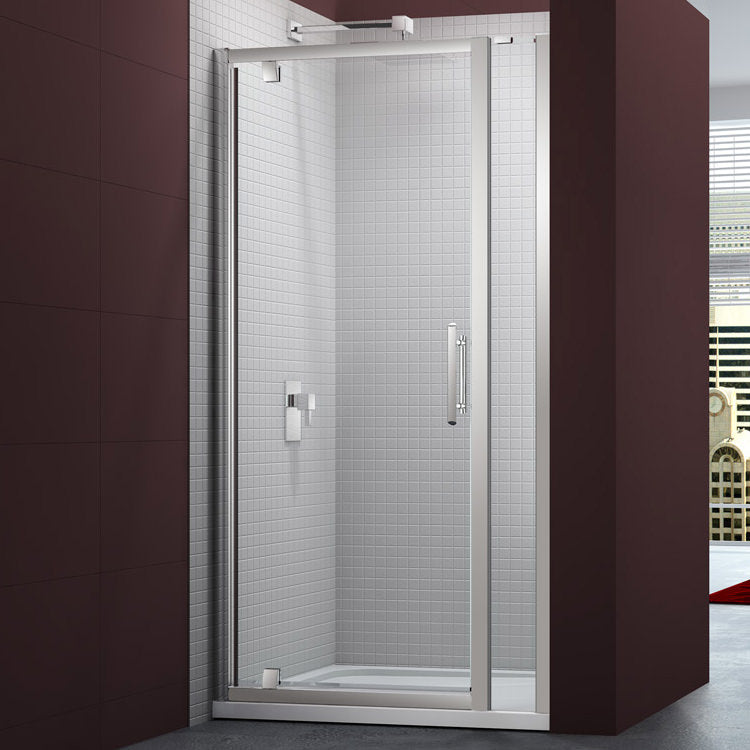

Merlyn 6-Series Pivot Shower Door with Inline Panel - Clear Glass - 1040 x 1900mm

Merlyn 6 Series Pivot Door with Inline Panel features toughened safety clear glass and a chrome handle.

It comes with a reversible design and is compatible with wetroom installation.

Product Details

• Size of Door: 900 x 1900mm (Width x Height)
• Size of Inline Panel: 140 x 1900mm (Width x Height)
• Overall Width: 1040mm
• Size Adjustment (Minimum – Maximum): 965 – 1040mm
• Add 20mm to Size when using with Side Panel
• 6mm Toughened Safety Clear Glass
• Chrome Handle Included
• Manufactured in Accordance with ISO 9002 and EN 14428
• Utilise Toughened Safety Glass to EN 12150
• Power Shower Approved
• Supplied Complete with Full Installation Instructions and Necessary Fixings
• Download the Installation Instruction PDF File from the Additional Info Section
• Side Panel Optional
• Enclosure Wiper Optional
• Tray, Waste and Shower Set Shown in the Image are Not Included

Key Features

• Easy Clean Mershield Stayclear Protected Glass
• Glass Thickness: 8mm Door and 6mm Inline Panel
• Reversible – Can be Fitted for Right or Left-Hand Opening
• Wetroom Compatible
• Lifetime Guarantee from the Manufacturer

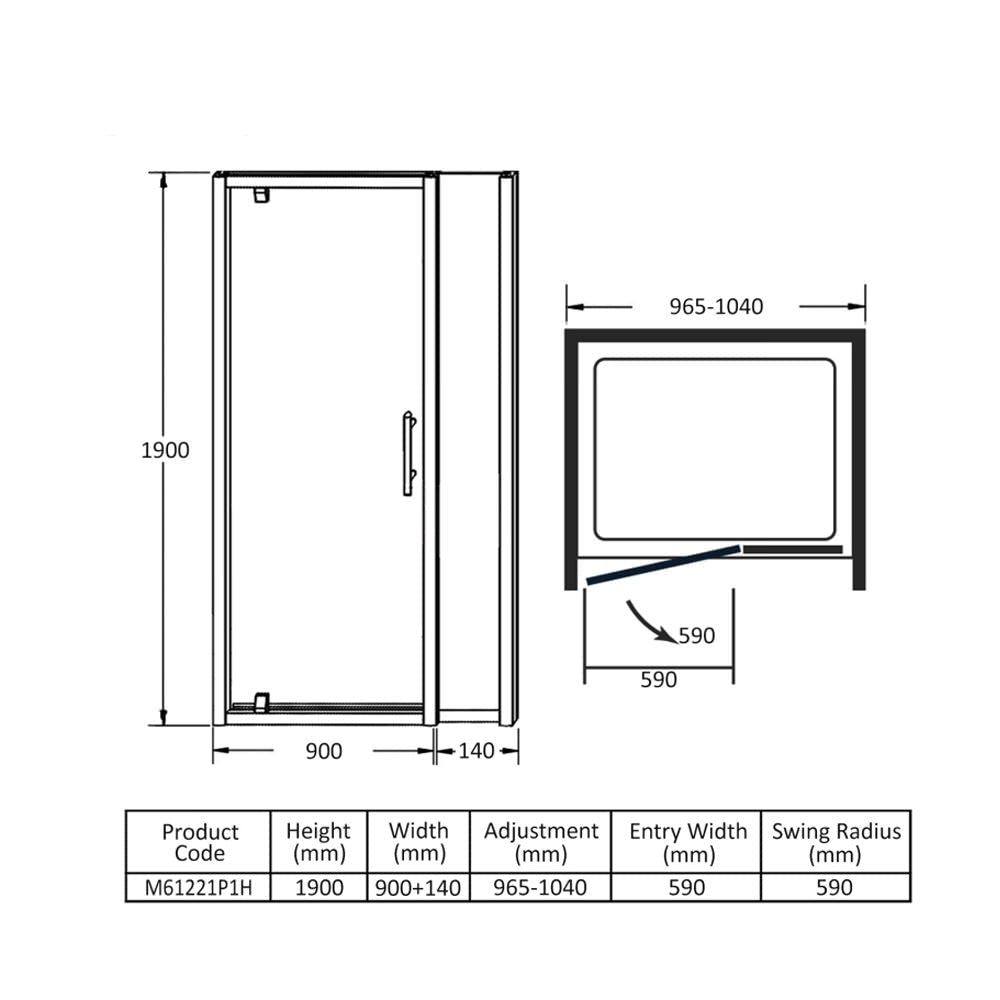

Size Information (mm)

Door

• Width: 900 mm
• Height: 1900 mm

Panel

• Width: 140 mm
• Height: 1900 mm
