Merlyn 10-Series Semi-Frameless Sliding Shower Quadrant 800 x 800mm - Chrome Finish

Merlyn 10 Series Quadrant Enclosure is manufactured from 10mm toughened safety clear glass and treated with Mershield StayClear coating for easy maintenance. The enclosure includes curved 8mm glass panels, smooth roller action and a mirror-finished chrome profile. Adjustable wall profiles allow accurate fitting against out-of-true walls. Tray, waste and accessories are available separately.

Product Specifications

• Size (mm): 800 x 800 x 2000mm [Width x Depth x Height]
• Size (cm): 80 x 80 x 200cm [Width x Depth x Height]
• Glass Thickness (Door): 10mm Toughened Safety Glass
• Curved Panels: 8mm Glass
• Glass Type: Clear Glass
• Glass Coating: Mershield StayClear
• Profile Finish: Mirror-Finished Chrome
• Installation Variation: Left or Right-Hand
• Roller System: Smooth Roller Action
• Handle: Eyelet Handle with Chrome Eyelet Option and Circular Filler Plate Option
• Wall Profiles: Adjustable
• Adjustment: 20mm

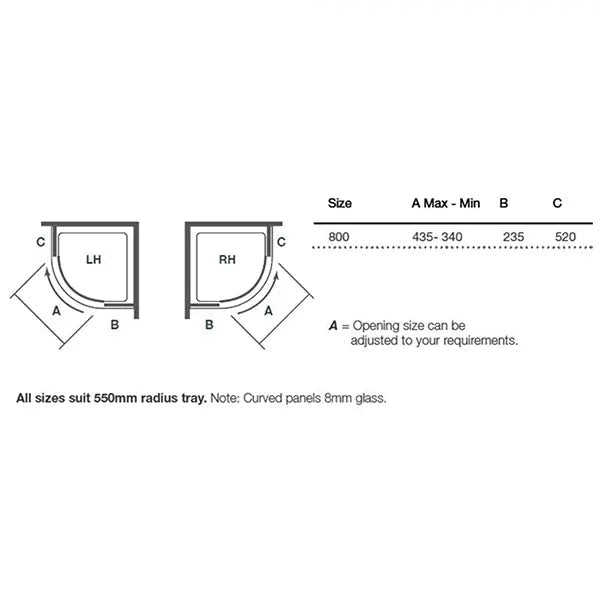

• Adjustment with Tray: 775–795mm [Minimum–Maximum]
• Adjustment Wetroom: 755–775mm [Minimum–Maximum]
• Seals: Translucent
• Top Cover Caps: Included
• Suitable for 550mm Radius
• Wetroom Compatible
• Power Shower Approved
• CE Certified
• Extension Profile: Available Separately
• Tray and Waste: Available Separately
• Panel Kit: Available Separately
• Wiper: Available Separately
• Installation Instructions: Available in Additional Info Section

Key Features

• 10mm Toughened Safety Glass
• Mershield StayClear Protected Glass
• CE Certified Product
• Mirror-Finished Chrome Profile
• Fully Concealed Fixings
• Lifetime Guarantee against All Manufacturing Defects

Info / Size (mm)

• Width: 800mm
• Depth: 800mm
• Height: 2000mm
