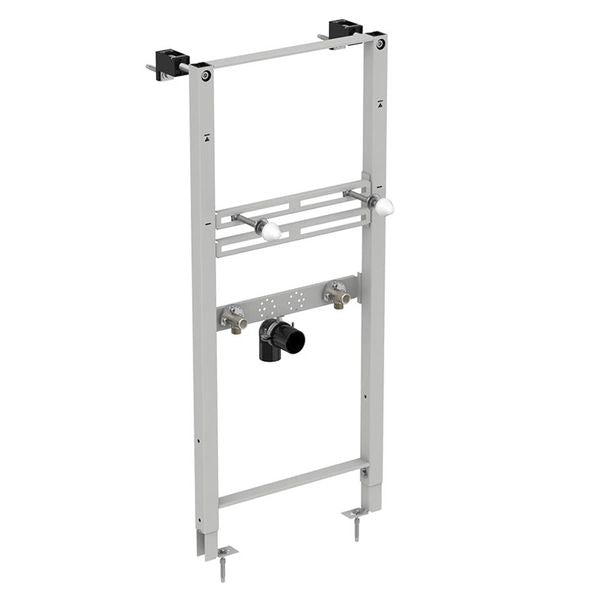

Ideal Standard ProSys 500 x 1150mm Frame For Wall Mounted Washbasin

The Ideal Standard ProSys Frame is designed to provide secure and reliable installation for wall-mounted washbasins. Manufactured from durable steel, this frame is corrosion-resistant and scratch-resistant, ensuring long-term performance and stability.

Tested for a load of up to 150 kg, this robust installation system is suitable for mounting in front of solid walls or between two plasterboard walls according to the installation manual. The height-adjustable design allows flexibility from 0 to 300 mm, making it adaptable to various bathroom layouts.

Produced by Ideal Standard, this frame supports easy and quick installation with the EasyFix system and is available in variants suitable for deck-mounted taps or wall-mounted taps.

Product Details

• Material: Steel
• Installation Type: Wall-Mounted Washbasin Frame

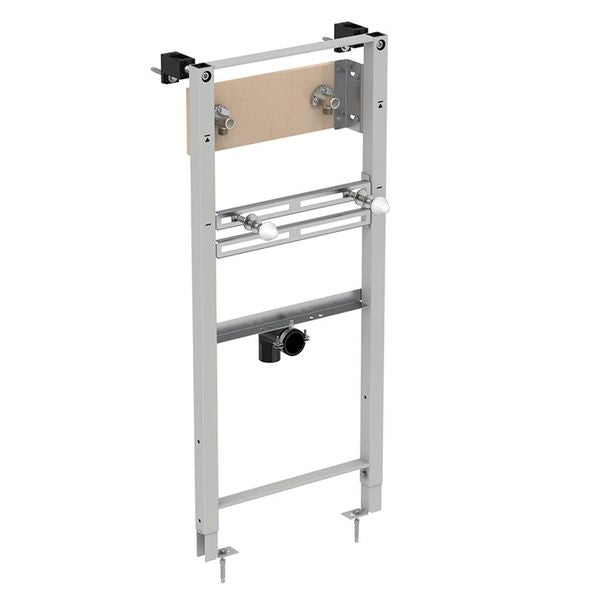

• Variants: For Deck Mounted Taps and For Wall Mounted Taps
• Height Adjustable: 0–300 mm
• Minimum Thickness: 120 mm
• Adjustable Attachment Plates
• Basin and Taps Shown in the Image are Not Included

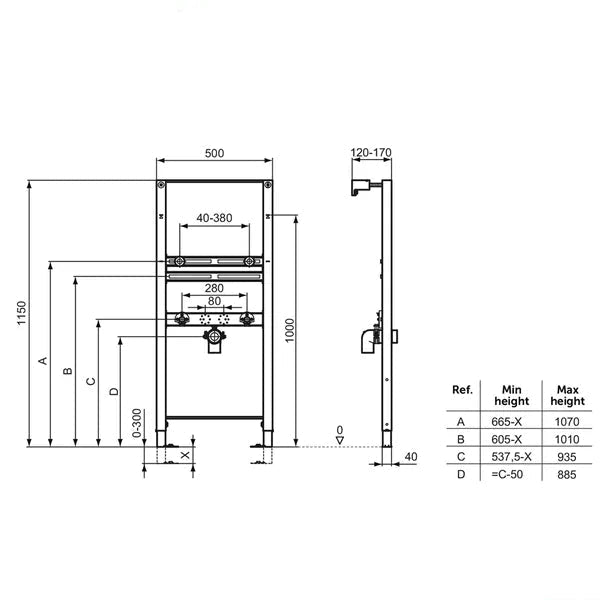

• Refer to Technical Drawing for Complete Size Details

Size Details

• Size (mm): 500 x 120–170 x 1150 (Width x Depth x Height)

Key Features

• Frame Tested for Load up to 150 kg
• Corrosion-Resistant and Scratch-Resistant Frame
• Suitable for Installation in Front of Solid Walls or Between Plasterboard Walls
• Easy and Quick Installation with EasyFix System

Accessories Included

• Basin Fixing Hardware
• Frame Fastening Materials
• Outlet Bend Multi Fit 40–32 / 50–40 mm
• G 1/2 Fittings for Water Connection (2 pcs)
