Hudson Reed Tec Pura Plus Concealed Thermostatic Shower Valve - Rectangular Trim - 3 Control

Make your showering sessions comforting and convenient by fitting your shower space with the Tec Pura Plus Shower Valve. This innovative creation is approved by the TMV2 scheme and WRAS and is made from superior quality material. The sleek minimalist design is a pleasing amalgam of a rectangular backplate, lever, and cross-head handles.

Moulded out of high-quality Brass/ABS, this sturdy brassware is plated in fine chrome and carries an attractive design. It is resistant to calcium build-up, suitable for hard water areas, and works perfectly even at low water pressure. It can be installed in a shower enclosure or along with a shower bath.

Product Details

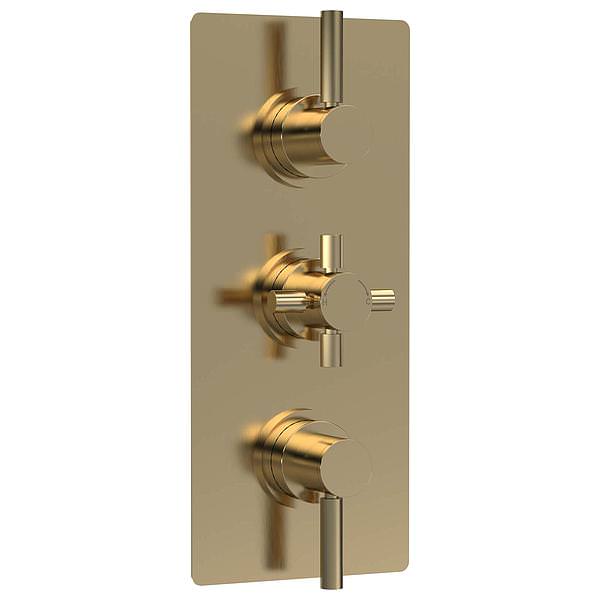

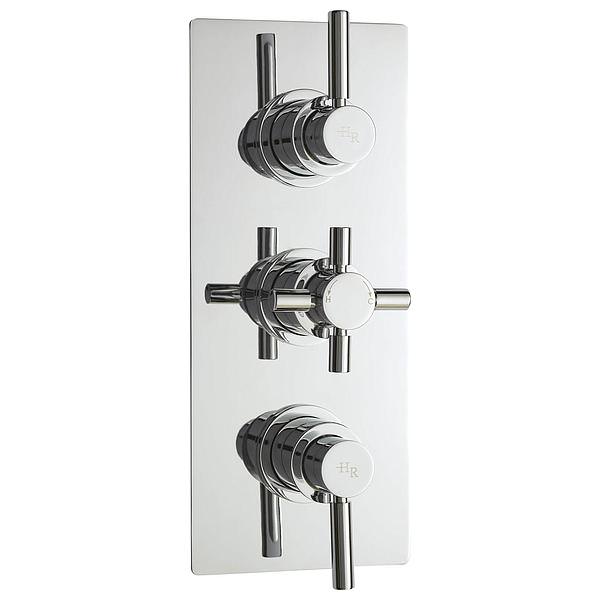

• Choice of Finishes: Chrome, Matt Black, Brushed Brass
• Choice of Variants: Without Diverter or With Diverter
• Manufactured Using Brass and ABS Material
• Minimalist Sleek Design
• Backplate Shape: Rectangular
• Handle Design: Lever and Cross-Head
• Mount Type: Wall/Recessed
• Can Be Installed Vertically or Horizontally

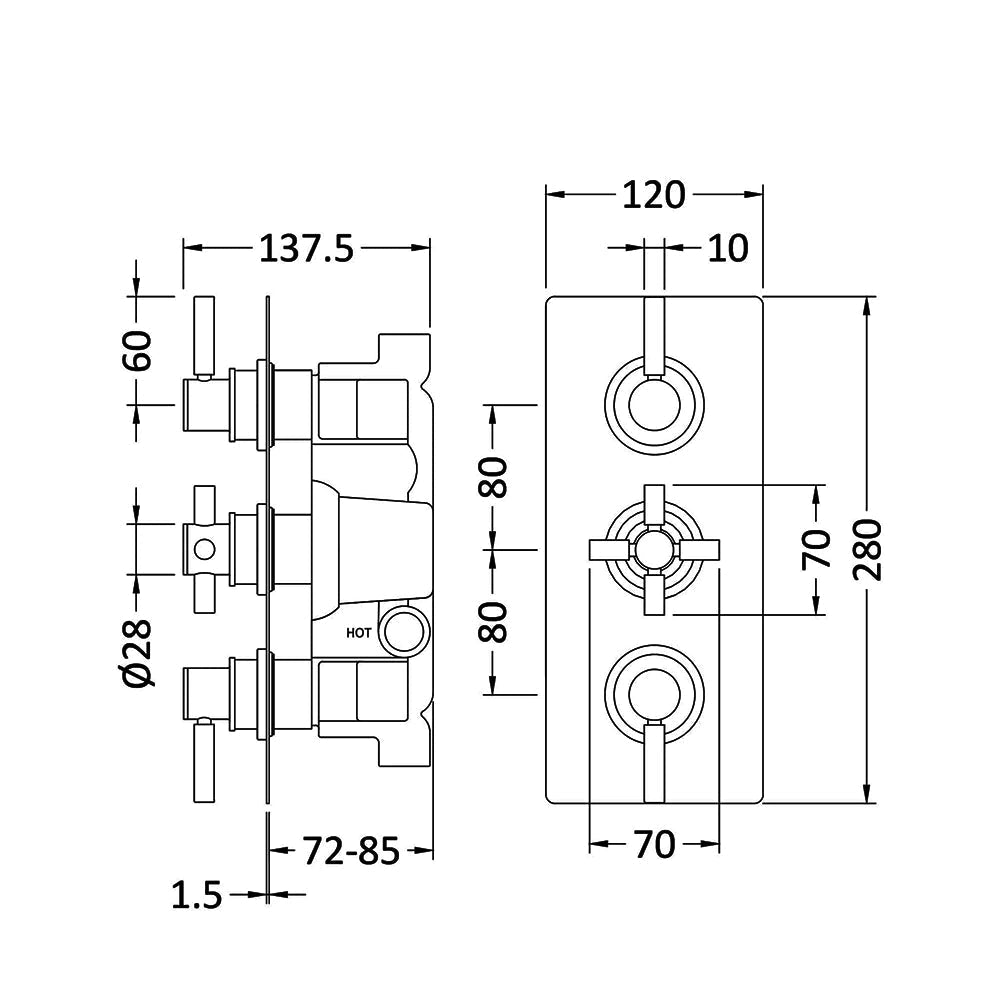

• Refer to the Technical Drawing for Size Details

• Twenty-Year Guarantee from Hudson Reed Against Manufacturing Defects

Backplate Size

• 120 x 138 x 280mm (Width x Depth x Height)
• 12 x 13.8 x 28cm (Width x Depth x Height)

Key Features

• Manufactured Using Brass and ABS Material
• Accurate Flow Control with Excellent Flow Rate Even at Low Pressure
• Valves are Thermostatically Controlled Using a Valquest Patented Cartridge
• Full Thermal Protection to Prevent Scalding in the Event of Hot/Cold Water Shut-Off
• Quarter-Turn Ceramic Disc Cartridge
• Quarter-Turn Valve Operated
• Manufactured Using the Latest Technique of Thermostat
• Thermostatic Control to +/- 2 to 3°C Even if the Water Pressure Fluctuates
• In the Event of Hot or Cold Water Failure, the Valve Will Shut Down
• The Water Supply Provides Full Thermal Protection and Prevents Scalding
• Patented Cartridge Highly Resistant to Calcium Build-Up
• Cartridge Fully Reversible
• Remove the Cartridge, Turn it 180°, and Replace
• Stain and Rust-Resistant
• Suitable for All Plumbing Systems

Details of Valve Only

• WRAS Approval No.: 2204707
• Pipe Size: 15mm (1.5cm) (1/2 Inch BSP)
• Weight: 5.32kg
• Number of Outlets: 2
• Suitable for Low-Pressure Water System
• Requires a Minimum of 0.1 Bar or Above Water Pressure

Details of Valve With Diverter

• Pipe Size: 15mm (1.5cm) and 22mm (2.2cm)
• Weight: 5.77kg
• Number of Outlets: 3
• Suitable for Medium-Pressure Water System
• Requires a Minimum of 0.5 Bar or Above Water Pressure
