Hudson Reed Tec Pura Concealed Thermostatic Shower Valve - Rectangular Trim - 2 Control

Tec Pura brings you the supremely safe Twin Concealed Thermostatic Shower Valve conforming to the necessary standards. The valve design is a mix of a rectangular backplate upon which is placed a lever handle and a crosshead handle that operate the valve efficiently. The minimalist sleek design is protected and finished with a stunning chrome polish. Offering full thermal protection against accidental scalding, it will shut down in the event of water failure.

In fluctuating water pressure, it provides thermostatic control to prevent the temperature from going beyond 2 to 3 degrees of the set reading. Recommended for medium water pressure systems, it works well at low water pressure also and is guaranteed for 20 years by Hudson Reed against manufacturing defects. Suitable for use with shower enclosures and bathtubs.

Product Details

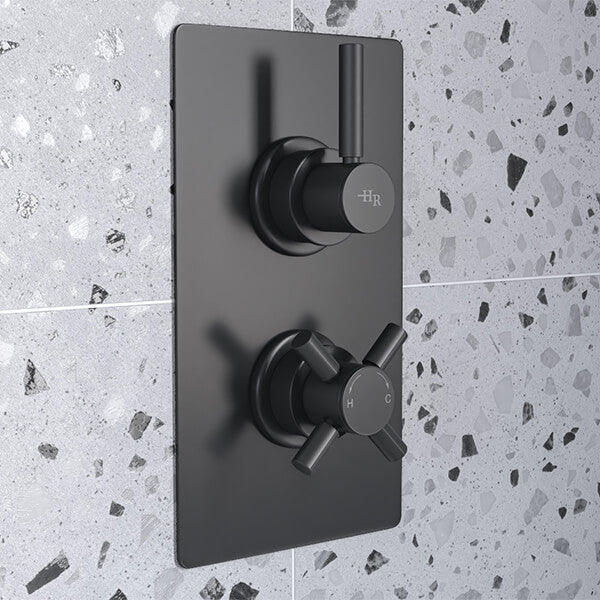

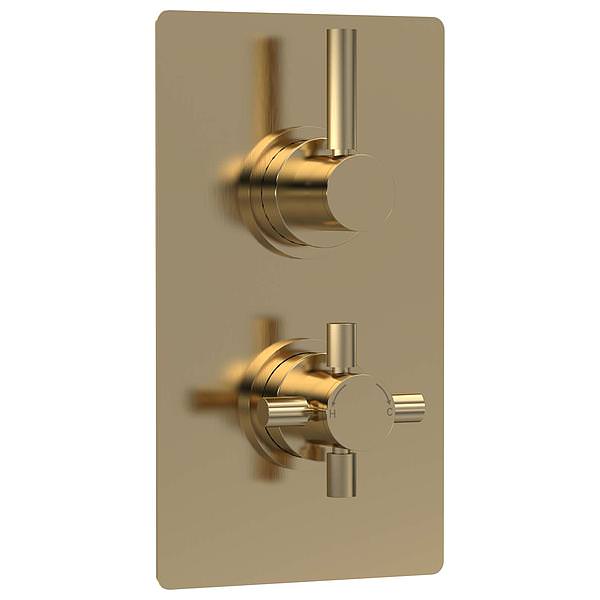

• Choice of Finishes: Chrome, Matt Black, Brushed Brass (Optional)
• Choice of Variants: Without or With Diverter (Optional)
• Manufactured Using Brass and ABS Material
• Backplate Shape: Rectangular
• Handle Design: Lever and Cross-Head
• Mount Type: Wall/Recessed
• Can Be Installed Vertically or Horizontally

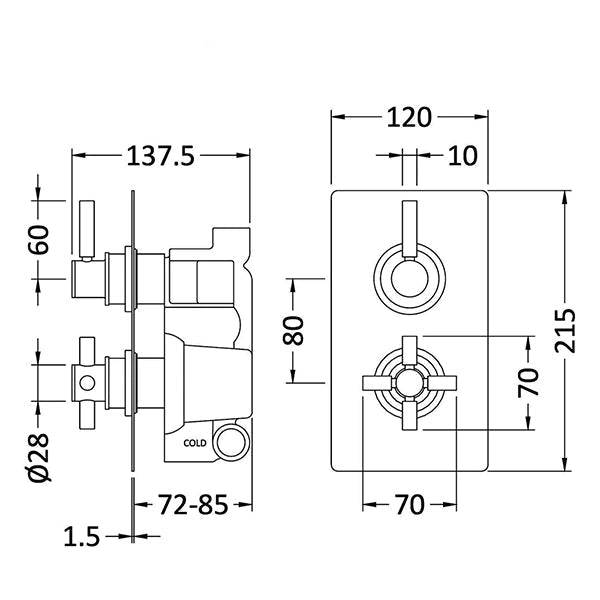

• Refer to the Technical Drawing for Size Details

• Twenty-Year Guarantee from Hudson Reed Against Manufacturing Defects

Backplate Size

• 120 x 138 x 215mm (Width x Depth x Height)
• 12 x 13.8 x 21.5cm (Width x Depth x Height)

Key Features

• Minimalist Sleek Design
• Quarter-Turn Valve Operated
• 1/4-Turn Ceramic Disc Cartridge
• Manufactured Using the Latest Technique of Thermostat
• Patented Cartridge Highly Resistant to Calcium Build-Up – Even in Hard Water Areas
• Stain- and Rust-Resistant
• Valves Thermostatically-Controlled Using a Valquest Patented Cartridge
• Accurate Flow Control with Excellent Flow Rate Even at Low Pressure
• Thermostatic Control to +/- 2 to 3 °C Even if the Water Pressure Fluctuates
• In the Event of Hot or Cold Water Failure, the Valve Will Shut Down the Water Supply, Providing Complete Thermal Protection and Preventing Scalding
• Suitable for Use with All Plumbing Systems: Gravity-Fed, Pumped, Unvented, High Pressure or Fully Modulated Combi-Boilers
• Cartridge is Fully Reversible
• Remove the Cartridge, Turn 180° and Replace

Details of Valve Only

• Pipe Size: 15mm (15cm)
• Weight: 4.14kg
• Number of Outlets: 1
• WRAS Approval No.: 2204707
• Suitable for Low-Pressure Water System
• Requires a Minimum of 0.1 Bar or Above Water Pressure to Operate Smoothly

Details of Valve With Diverter

• Pipe Size: 15mm (1.5cm) and 22mm (2.2cm)
• Weight: 4.71kg
• Number of Outlets: 2
• Suitable for Medium-Pressure Water System
• Requires a Minimum of 0.5 Bar or Above Water Pressure to Operate Smoothly
