Hudson Reed Tec Pura Concealed Thermostatic Shower Valve - Rectangular Trim - 2 Control

Tec Pura Twin Concealed Thermostatic Shower Valve features a minimalist rectangular backplate with lever and crosshead handles for efficient control. Manufactured from brass and ABS material, it is finished in chrome for a sleek and modern appearance.

Designed with thermostatic control, the valve maintains temperature stability within ±2–3°C even during pressure fluctuations. It offers full thermal protection and automatically shuts down in the event of hot or cold water failure to prevent scalding. The patented Valquest cartridge resists calcium build-up and is fully reversible for easy installation.

Product Specifications

• Installation: Wall-Mounted / Recessed
• Backplate Shape: Rectangular
• Handle Design: Lever and Cross-Head
• Cartridge Type: 1/4-Turn Ceramic Disc
• Thermostatic Control Accuracy: ±2–3°C
• Quarter-Turn Operation
• Stain- and Rust-Resistant
• Vertical or Horizontal Installation
• Manufactured Using Brass and ABS

Finish Options

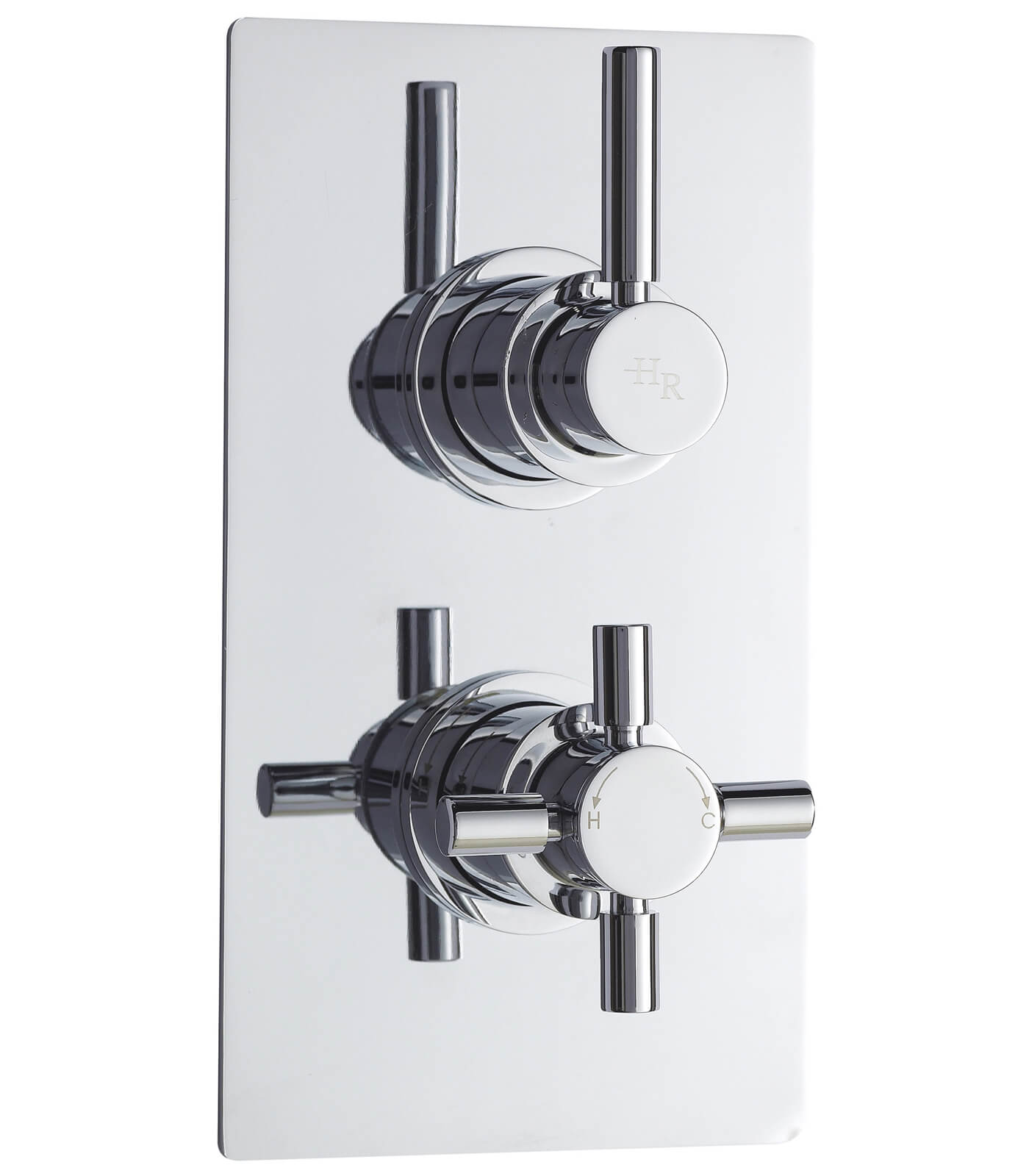

• Chrome

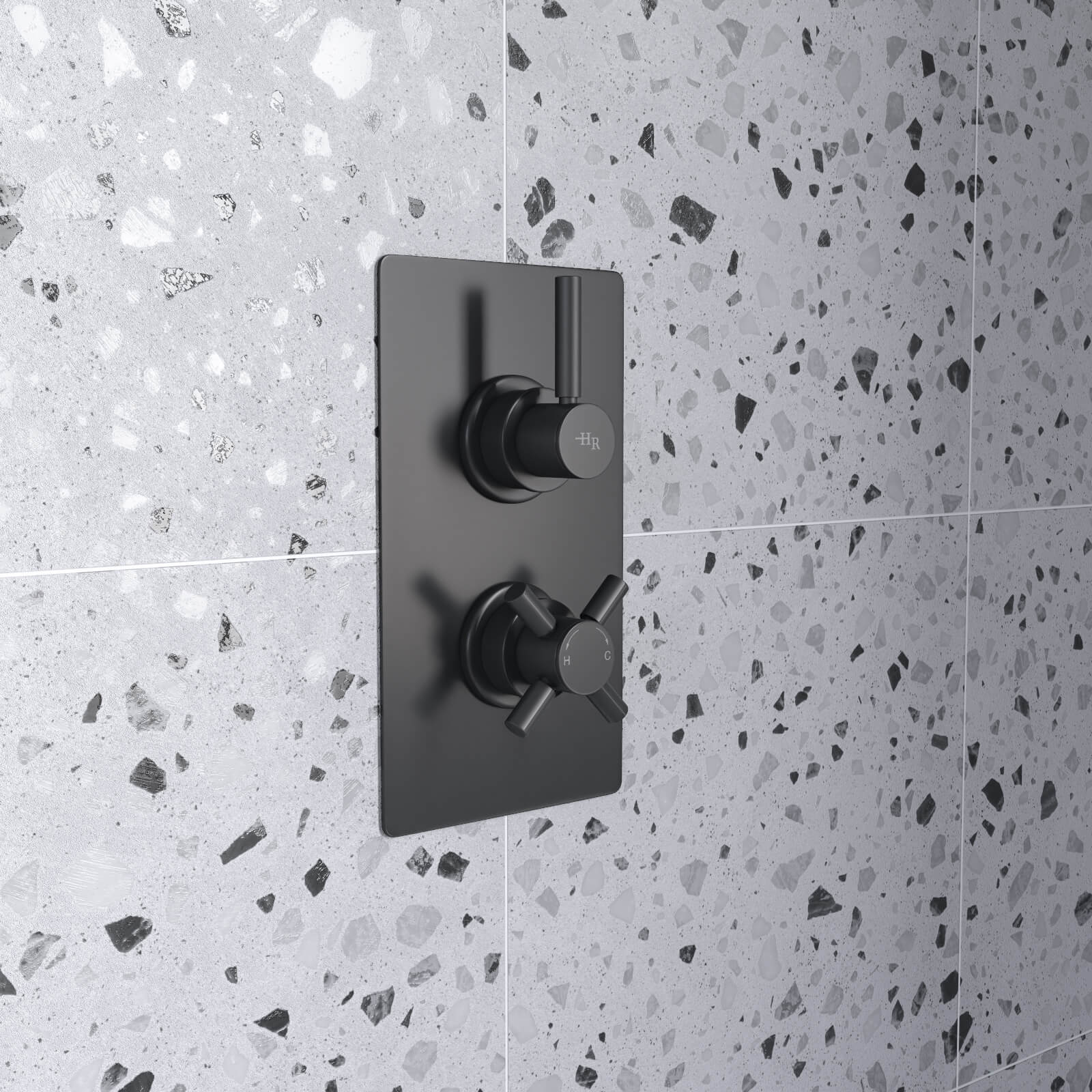

• Matt Black

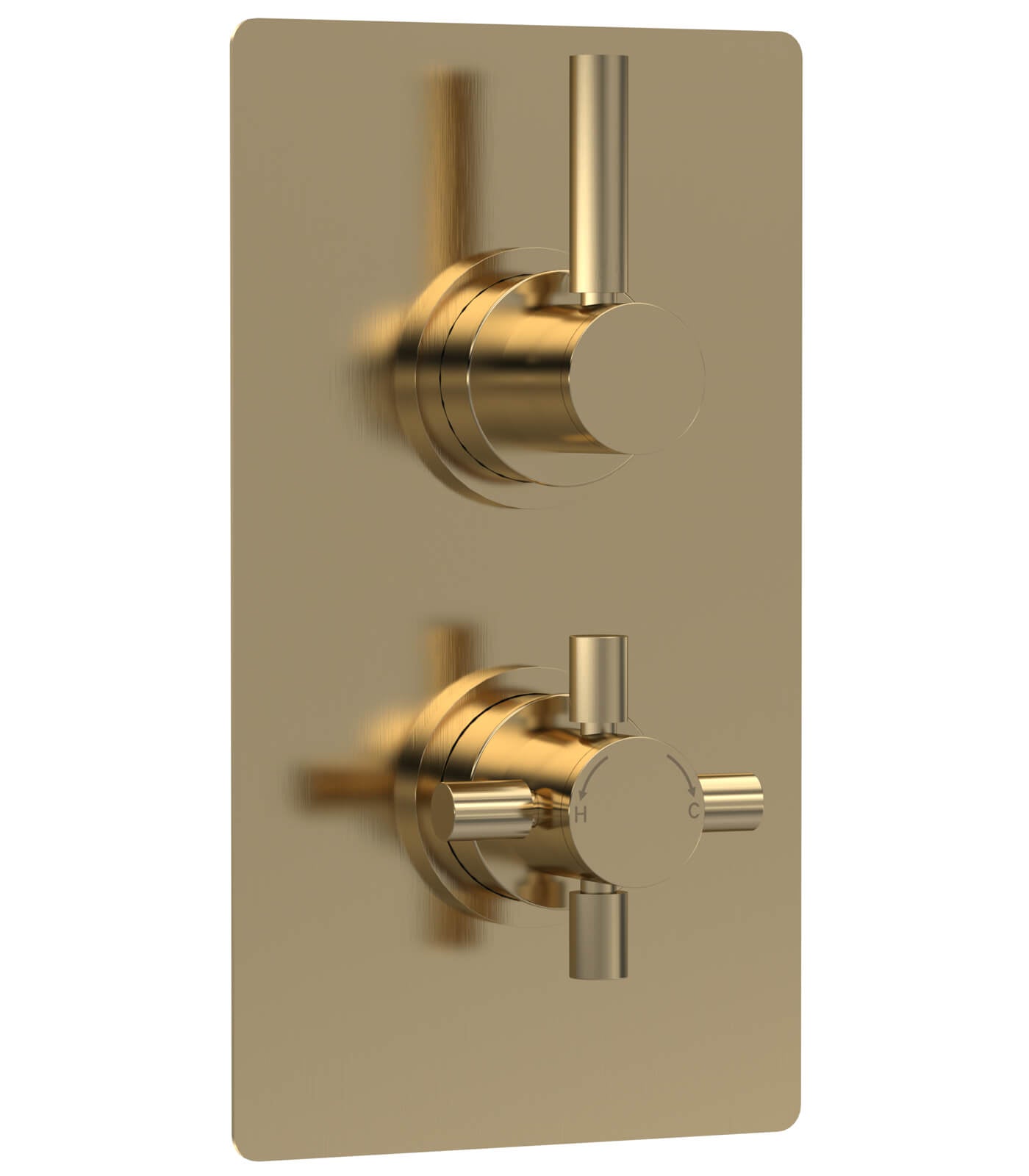

• Brushed Brass

Variant Options

• Valve Only (Without Diverter)
• Valve with Diverter

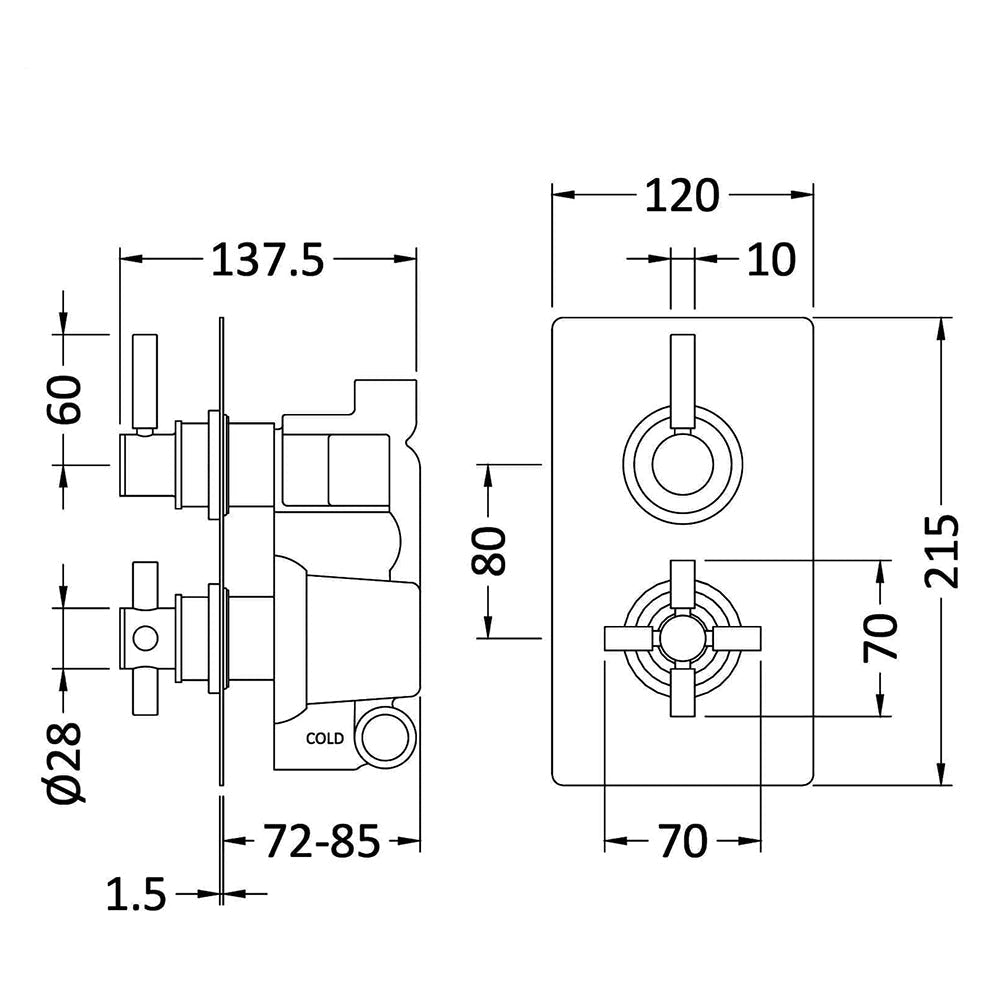

Backplate Dimensions

• Size (mm): 120 x 138 x 215 (Width x Depth x Height)
• Size (cm): 12 x 13.8 x 21.5 (Width x Depth x Height)

System Compatibility

• Gravity-Fed
• Pumped
• Unvented
• High Pressure
• Fully Modulated Combi-Boilers

Safety & Performance

• Valquest Patented Cartridge
• Highly Resistant to Calcium Build-Up
• Accurate Flow Control
• Excellent Flow Rates at Low Pressure
• Automatic Shutdown on Water Failure
• Full Thermal Protection Against Scalding
• Fully Reversible Cartridge (180° Rotation)

Variant Technical Details

Valve Only (Without Diverter)

• Pipe Size: 15mm
• Weight: 4.14kg
• Number of Outlets: 1
• WRAS Approval No.: 2204707
• Suitable for Low-Pressure Systems
• Minimum Operating Pressure: 0.1 Bar

Valve with Diverter

• Pipe Size: 15mm and 22mm
• Weight: 4.71kg
• Number of Outlets: 2
• Suitable for Medium-Pressure Systems
• Minimum Operating Pressure: 0.5 Bar

Key Features

• Minimalist Sleek Design
• Thermostatically Controlled
• Quarter-Turn Ceramic Disc Cartridge
• Excellent Performance at Low Pressure
• Multi-System Compatibility
• Easy Installation and Maintenance
• 20-Year Guarantee from Hudson Reed Against Manufacturing Defects
