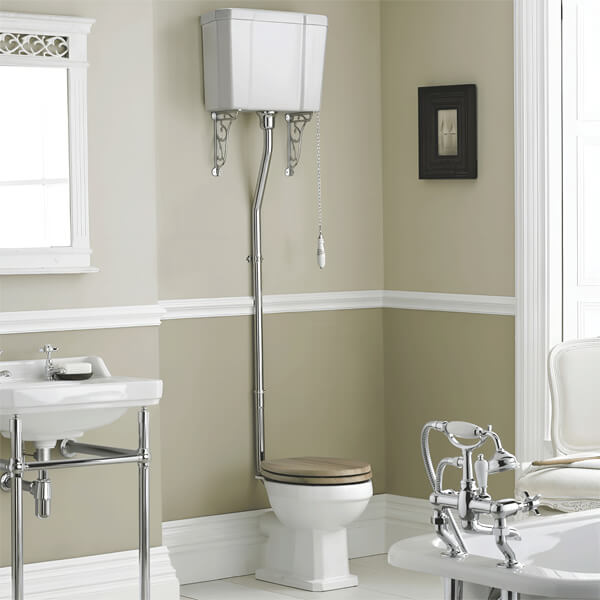

Hudson Reed Richmond High Level WC Pan with Cistern and Flush Pipe Kit - Open Back - 465mm Wide

Create a one-of-a-kind bathroom space with the Hudson Reed Richmond High-Level WC Pan's help with Cistern and Flush Pipe Kit.

This unique kit comes with a WC pan, cistern and a flush pipe kit, as well as a ceramic pull chain lever that brings some Edwardian atmospheric vibes to your bathroom.

The pan is realised out of vitreous china for durable, long-term use. It features a short projection designed to save as much space as possible and comes with a 6-litre full flush. Complete the look in your bathroom by installing this toilet with a toilet roll holder.

Manufactured by Hudson Reed.

Product Specifications

• Design: Open-back toilet design – easy to install
• Material: Manufactured from high-quality vitreous china
• Flush Volume: 6 Litres (Full Flush)
• Pan Trap Style: P-Trap
• Projection: Short projection to save space
• Usage: Suitable for commercial use
• Height Options: Standard or Comfort Height (Optional)
• Guarantee: 5-year guarantee from the manufacturer against manufacturing defects
• Technical Drawing: Refer for size details
• Note: The toilet seat and cover shown in the image are not included and are sold separately

Included Components

• WC Pan
• Cistern
• Flush Pipe Kit
• Pair of Brackets
• Ceramic Pull Chain Lever

Overall Dimensions (mm)

Standard Height

• 465 x 625 x 2140 (Length x Width x Depth)

Comfort Height

• 465 x 625 x 2196 (Length x Width x Depth)

WC Pan Dimensions (mm)

Standard Height Pan

• 360 x 495 x 410 (Width x Depth x Height)

Comfort Height Pan

• 370 x 515 x 466 (Width x Depth x Height)

Cistern Dimensions

• Size (mm): 474 x 180 x 370 (Width x Depth x Height)
• Size (cm): 47.4 x 18 x 37 (Width x Depth x Height)
• Feature: Ceramic pull chain lever

Flush Pipe Kit Details

• Size (mm): 80 x 202 x 1680 (Width x Depth x Height)
• Size (cm): 8 x 20.2 x 168 (Width x Depth x Height)
• Finish: Chrome
• Pipe Size: Ø35mm (3.5cm)
• Material: Brass
• Connection Size: 1½ inch

Product Dimensions (mm)

• Width: 465 mm
• Projection: 625 mm
• Height: 2140 mm

Key Features

• Pair of brackets included
• Open-back toilet design for easy installation
• Includes WC pan, cistern and flush pipe kit
• Manufactured from high-quality vitreous china
• Available in standard or comfort height (optional)
• Brings an early Edwardian sensibility to your bathroom
