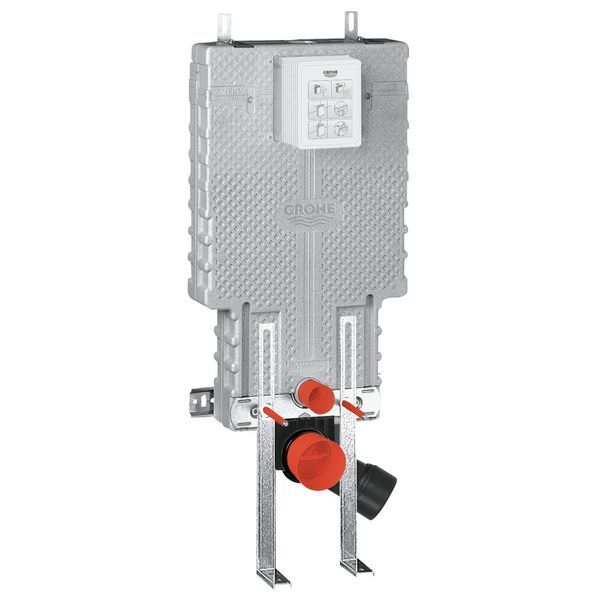

Grohe Uniset For WC Flushing Cistern - Adjustable Depth - 470 x 1110mm

The Grohe Uniset for WC Flushing Cistern is capable of vertical or horizontal use and comes with support feet for completely secure installation.

Created with small maintenance access and rail adapters for modular fixing, this product comes with a fixing device just for ceramic, so it won't budge once it's fully installed in the bathroom.

Featuring low noise operation and insulated against condensation on the outside, this unit comes with an inlet and outlet connecting set with the water supply that comes from the left, right, back or top.

Manufactured by Grohe.

Product Specifications

• Manufacturing Code: 38642001
• Installation Type: Vertical or horizontal use
• Fixing: Wall rail with fixing accessories for single or rail installation
• WC Fixing Bolts: 2 bolts (Distance: 180/230mm)
• Fixing Device: For ceramic
• Outlet Bend: Ø90mm
• Reducer: Ø90/110mm
• Depth: Adjustable
• Flushing Cistern: GD 2, 6–9l
• Adjustment Ex-Factory: 6l and 3l
• Water Supply: Left / Right / Back / Top
• Connection: 1/2-inch water supply connection with integrated angle valve and push-fit flexible hose union
• Insulation: Insulated against condensation
• Support Feet: Included

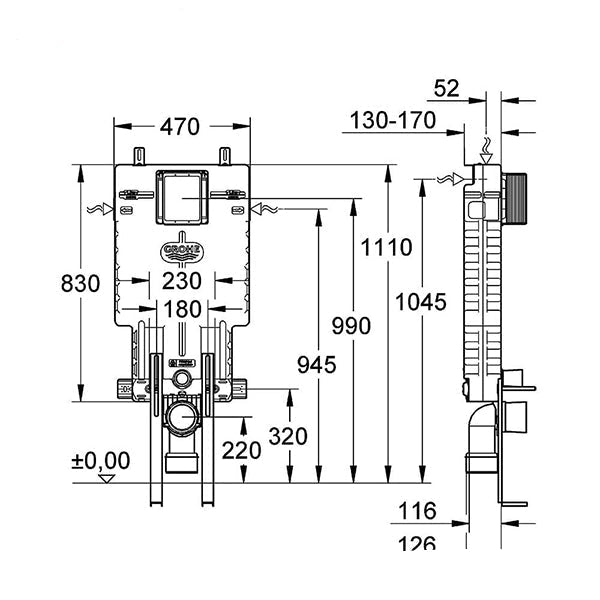

Dimensions

• Size (mm): 470 x 1110 (Width x Height)
• Size (cm): 47 x 111 (Width x Height)

Flushing System

• Pneumatic discharge valve offering 3 modes of operation:
• Dual flush
• Start/Stop
• Single flush

Key Features

• Small maintenance access
• Sound-insulating EPS module for masonry-in
• Rail adaptors for modular fixing
• Low noise (Group I according to German noise specification)
• 5-year warranty against any manufacturing defects
