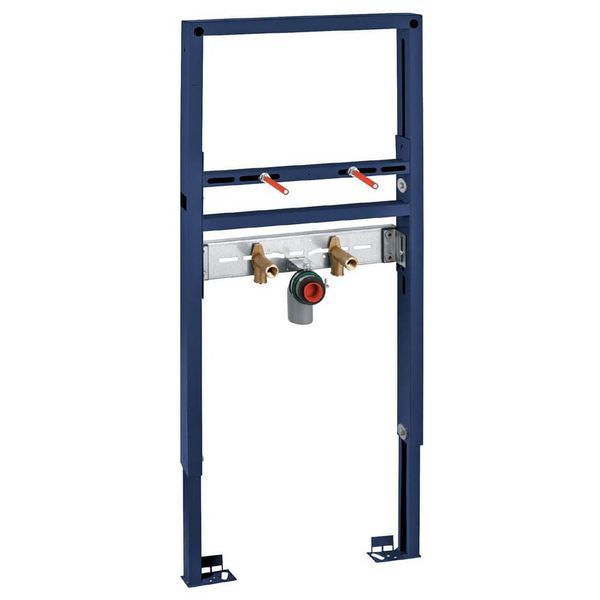

Grohe Rapid SL Installation System For Wash Basin

The Grohe Rapid SL Installation System is designed to provide secure and long-lasting support for wall-hung washbasins. Manufactured by Grohe, this high-quality frame delivers excellent performance and durability.

Constructed from powder-coated steel, this self-supporting frame is completely pre-assembled with fixed connections and is suitable for dry-cladding installations. Designed for single-hole installation, it can be fitted to on-the-wall or studded wall structures and supports both single and rail mounting systems.

With height-adjustable fixings and noise-protected connections, this installation system ensures comfort, flexibility, and ease of use. Backed by a 5-year manufacturer’s warranty, it offers reliability and peace of mind.

Product Details

• Manufacturing Code: 39052000
• Suitable for: Washbasin
• Installation Type: On-the-Wall or Studded Walls
• Installation Style: Single or Rail Installation
• Frame Type: Self-Supporting, Powder-Coated Steel
• Assembly: Completely Pre-Assembled with Fixed Connections
• Adjustable Height: 985–1130 mm
• Without Accessories for On-the-Wall Installation

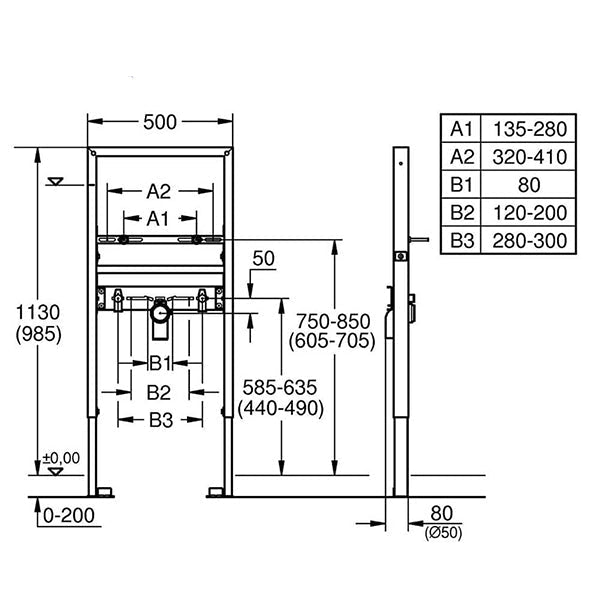

• Refer to the Technical Drawing for Size Details

Technical Specifications

• Washbasin Fixing Bolts: M10 with Fixing Device for Ceramic
• Variable Distance of Fixing Bolts
• HT-Outlet Bend: Ø50 mm
• Seal: Ø32 mm
• Noise-Protected Connections: 2 × 1/2 Inch
• Fixings and Connecting Traverse: Height Adjustable

Size Details

• Size (mm): 500 x 80 (Width x Depth)
• Size (cm): 50 x 8 (Width x Depth)

Frame Size (mm)

• Width: 500 mm
• Height: 1130 mm

Key Features

• TÜV-Approved
• Quick Adjustment with Locking System
• Suitable for Single-Hole Installation
• Powder-Coated Steel Frame for Dry-Cladding
• Completely Pre-Assembled with Fixed Connections
• 5-Year Warranty Against Manufacturing Defects
