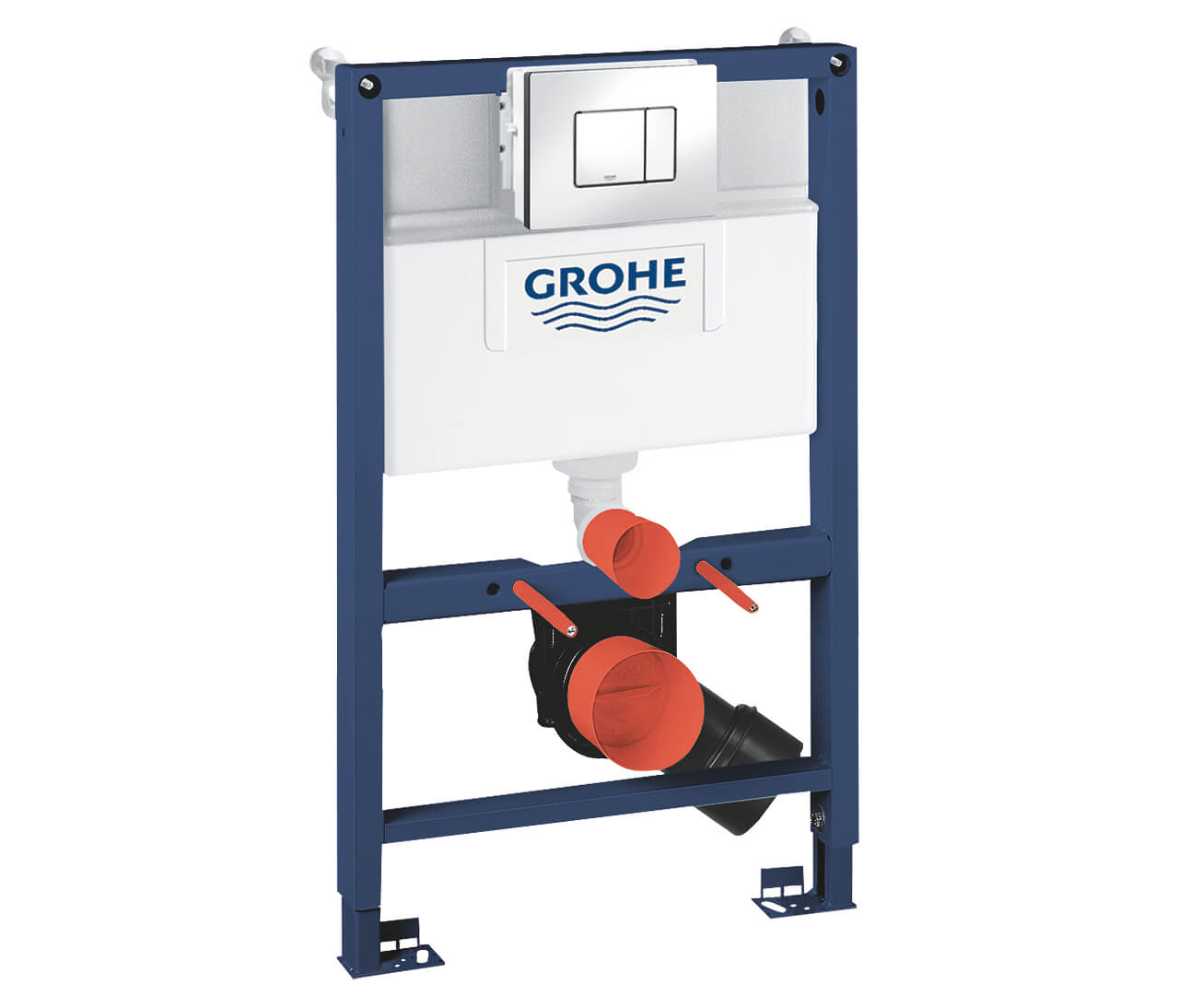

Grohe Rapid SL 4-in-1 Wall Hung WC Frame Set with Cistern and Flush Plate - 500 x 820mm

This simple yet efficient Rapid SL 4 in 1 Bracket Set for WC is brought to you by Grohe. The StarLight finish set is supplied with a powder-coated steel frame for the self-supporting, bracket for dry-cladding, fixing material and fixing device for ceramic.

The self-supporting minimalist element comes with a stand for dry-cladding and is supplied entirely pre-assembled. Suitable for wall installations or studded walls, it also comes with concealed cistern with a non-interruptible single flush with low noise. The chrome finish wall plate with dual flush actuation from ABS can be used for many years.

Product Information

• The Manufacturing Code of this Product is 38885000

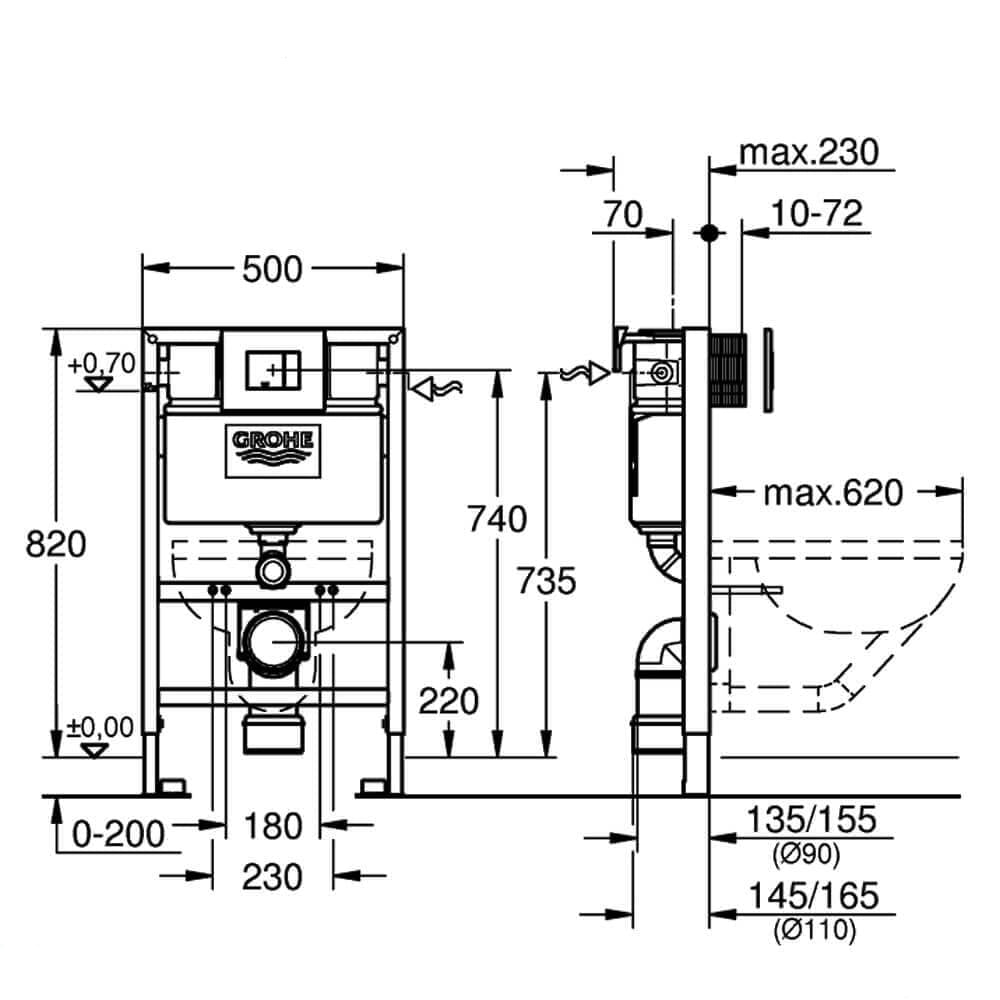

• Refer to the Technical Drawing for Size Details


Features Of Rapid SL Element For WC

Features Of WC Frame

• Powder-Coated Steel Frame, Self-Supporting
• TUV-Approved Bracket
• 0.82m Installation Height
• For On-the-Wall Installations or Studded Walls
• 2 WC-Fixing Bolts
• Fixing Device for Ceramic
• Distance of Fixing Bolts: 180 / 230 mm
• PP Outlet Bend Ø90 mm
• Depth Adjustable
• Reducer Ø90 / 110 mm
• Inlet and Outlet Connecting Set

Features Of Cistern

• Flushing Cistern 6/3 Litre Containing the Following Features
• Water Supply from Left / Right or Back
• Insulated Against Condensation
• 1/2-Inch Water Supply Connection Including Integrated Angle Valve and Push Fit, Flexible Hose Union

Features Of Skate Cosmopolitan Chrome Flush Plate

• For Dual Flush or Start and Stop Actuation
• For Pneumatic Drop Valve AV1
• For Vertical and Horizontal Installation
• GROHE Long-Life Shine is a Durable, Sparkling sheen
• GROHE Water Saving - Less Water, Perfect Flow
• In Combination with Rapid SL 1.13m with GD 2 Cistern

Features Of GROHE Fresh Retro-Fit Set

• For GROHE Flushing Cistern GD 2 with Pneumatic Discharge Valve and Regular Inspection Shaft
• Not Suitable for Flush Plates with Wood, Glass, Metal Surfaces, or New Small Flush Plates
• Fixing Frame with Opening Function
• Suitable for Chlorine-Free Tablets Only
• Ideal For All 156 mm x 197 mm GROHE Wall Plates

Features Of Front Wall Brackets

• For Against-the-Wall Installations
• For Fixing the Elements at the Brick Wall or in Front of the Studded Wall
• The Adjustment from 130 mm to 230 mm

Additional Size Information (mm)

Frame

• Width: 500 mm
• Height: 820 mm

Key Features

• Pack Includes:
• Rapid SL Element for WC - 38526000
• Skate Cosmopolitan Chrome Flush Plate - 38732000
• GROHE Fresh Retro-Fit Set - 38796000
• Front Wall Brackets - 3855800M
• 5-Year Warranty from the Manufacturer
