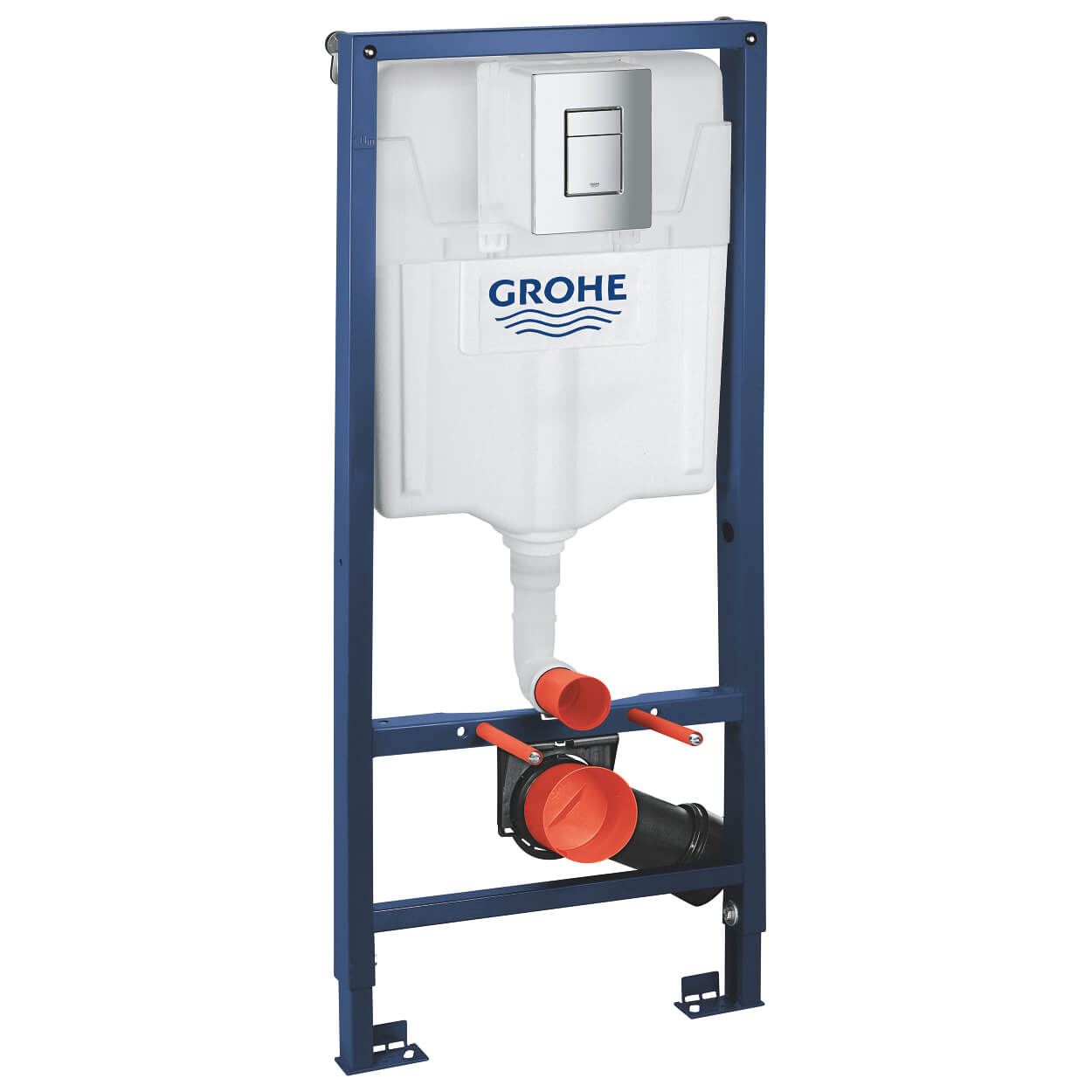

Grohe Rapid SL 3-in-1 WC Frame Set with Skate Cosmopolitan Flush Plate and Cistern

Grohe's latest 3 In 1 Pack for WC has set new standards of efficiency. Part of the brand's Rapid SL range, it is backed by a 5 years warranty against all manufacturing defects.

The pack includes a flushing cistern that has been insulated against condensation and can be connected to the water supply from left, right or back. Suitable for single or series installation, the pack includes a wall plate with dual flush actuation, and a self-supporting powder-coated steel frame is also part of the set.

Suitable to use with rimless, and wall-hung toilets. Just right for modern settings, it offers an attractive package of beauty and utility. An excellent value-adding acquisition, it can be used in most bathroom decors.

Product Information

• Manufacturing Code of this Product: 38772001
• Features Of Rapid SL Frame with Dual Flush Cistern - 38528001

Key Features

• Pack Includes:
• Rapid SL Frame with Dual Flush Cistern: 38528001
• Skate Air Dual Flush Button Flush Plate - 38732000
• Pair Of Wall Brackets: 3855800M
• 5-Year Warranty from the Manufacturer Against any Manufacturing Defects

Features Of Frame

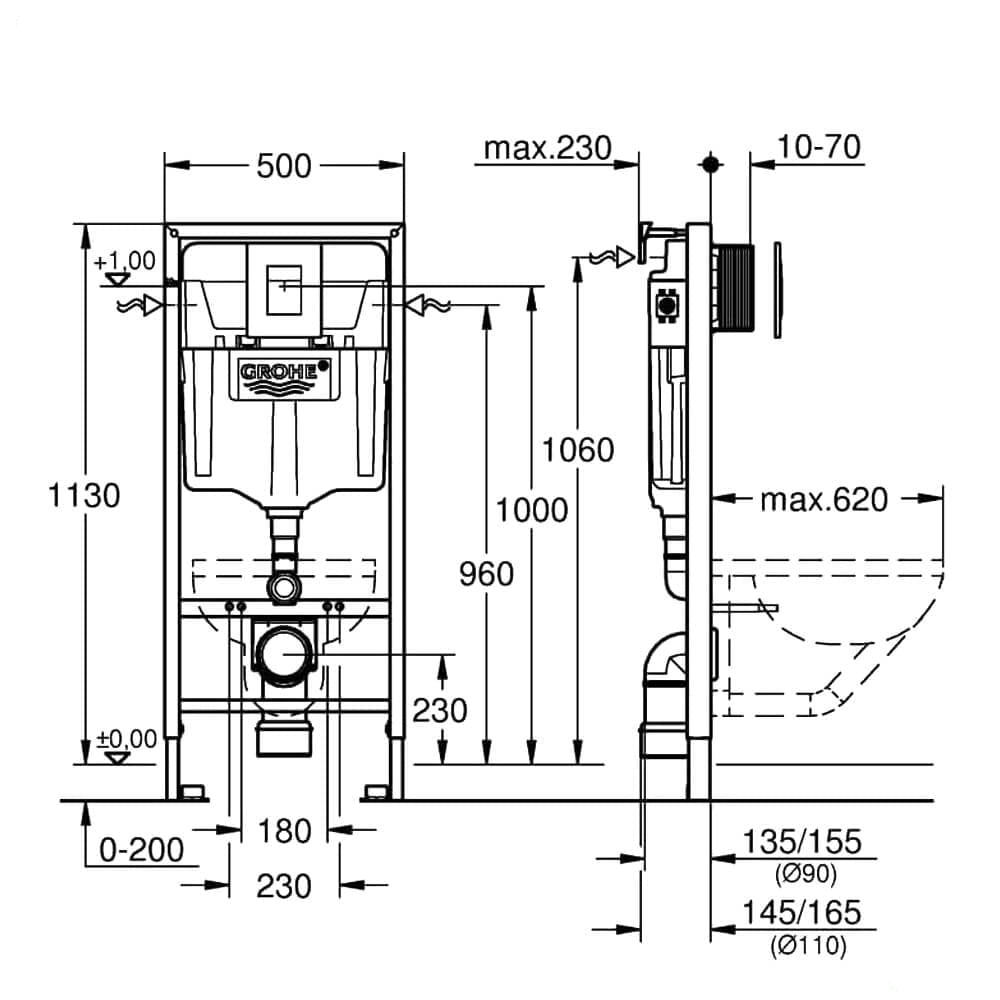

• Size (mm): 500 x 230 x 1130 (Width x Depth x Height)
• Size (cm): 50 x 23 x 113 (Width x Depth x Height)
• Suitable for on-the-Wall Installations or Studded Walls
• Powder-Coated Steel Frame
• Self-Supporting for Dry-Cladding
• Completely Pre-Assembled
• Supplied with Fixed Connections
• Features Quick Adjustment, Lockable
• Includes Fixing Material
• TUV Approved
• Supplied 2x WC Fixing Bolts, Fixing Device for Ceramic
• Distance of Fixing Bolts: 180 mm / 230 mm
• PP Outlet Bend: Ø90 mm
• Depth Adjustable Reducer Diameter: Ø90 / 100 mm
• Inlet and Outlet Connecting Set

Features Of Dual Flush Cistern

• 6/3 Litre Flush Mechanism
• Pneumatic Discharge Valve Offering 3 Modes of Operation: Dual Flush or Start/Stop or Single Flush
• Front or Top Actuation
• Water Supply from Left/Right or Back
• Low Noise (Group I, According to German Noise Specification)
• Insulated Against Condensation
• 1/2 inch Water Supply Connection, Including Integrated Angle Valve and Push-Fit Flexible Hose Union
• Shortable Inspection Shaft incl. Protection During the Construction Phase

Features Of Skate Air Dual Flush Button Flush Plate - 38732000

• Size (mm): 156 x 197 (Width x Height)
• Size (cm): 156 x 197 (Width x Height)
• Suitable for Dual Flush or Start & Stop Actuation
• Ideal for Pneumatic Drop Valve AV1
• Suitable for Vertical and Horizontal Installation
• GROHE LongLife Chrome Finish
• GROHE EcoJoy - Less Water, Perfect Flow

Features Of Wall Brackets - 3855800M

• Suitable for On-the-Wall Installations
• Ideal for fixing the Elements on the Brick-Wall or in Front of the Studded Wall
• Steady Vertical Adjustment from 130 mm to 230 mm
• Cladding for Single or Series Installation
• Supplied in Pairs
