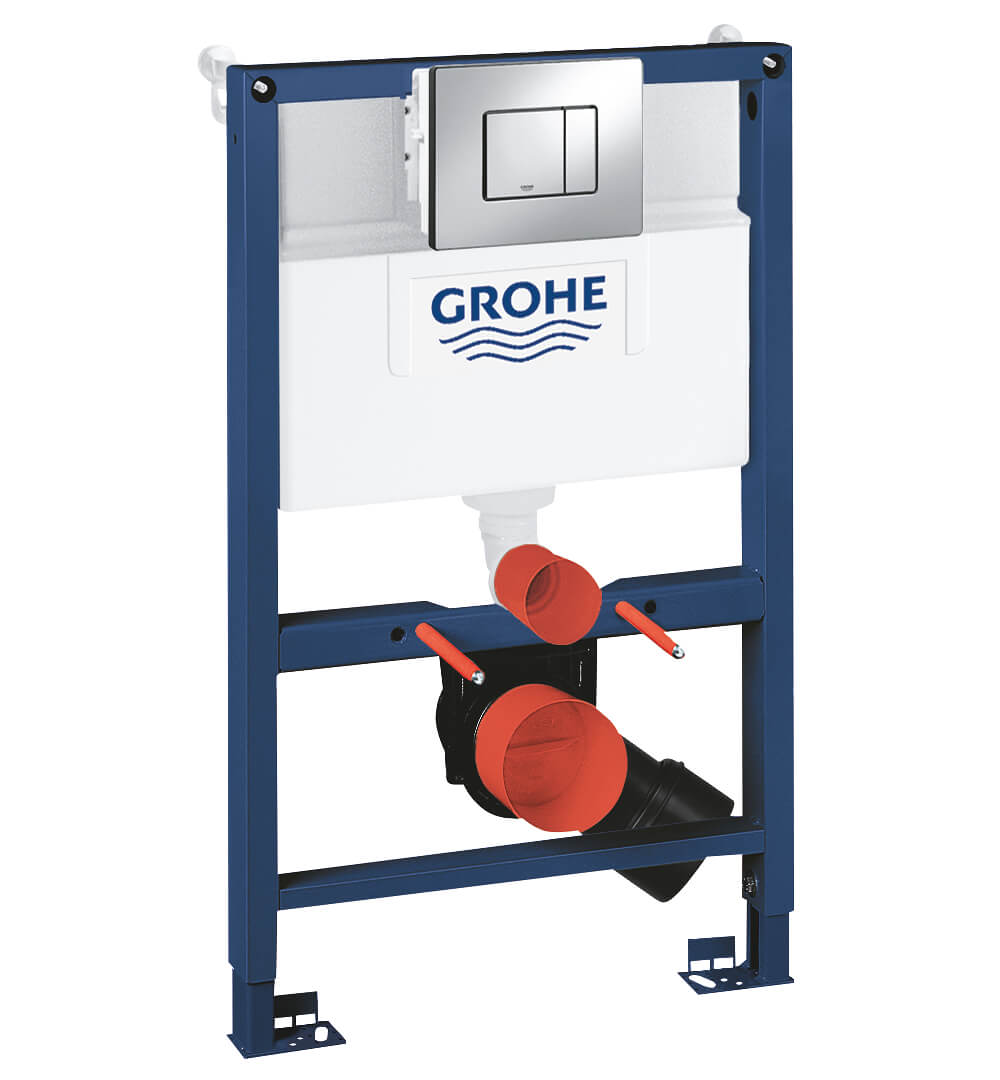

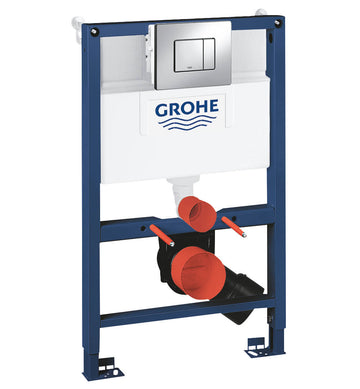

Grohe Rapid SL 3-in-1 WC Frame Set with Cistern and Skate Cosmopolitan Flush Plate - 500 x 820mm

This 3-In-1 Set For WC With Flushing Cistern - the latest offering from Grohe's Rapid SL range - bespeaks quality. The main attraction of this Rapid SL is a super-efficient cistern, which has been insulated against condensation, and it is also compatible with a high and low-pressure system.

Low on noise, it can be supplied water from left, right or back. The ABS finish pack includes a chrome-plated wall plate with dual flush actuation. Further, a completely pre-assembled powder-coated steel frame is suitable for dry-cladding. Lend support to a range of compatible WCs by using this sturdy product.

Product Information

• Manufacturing Code Of this Pack: 38773000
• Features Of Frame with Dual Flush Cistern - 38526000

Features Of Frame

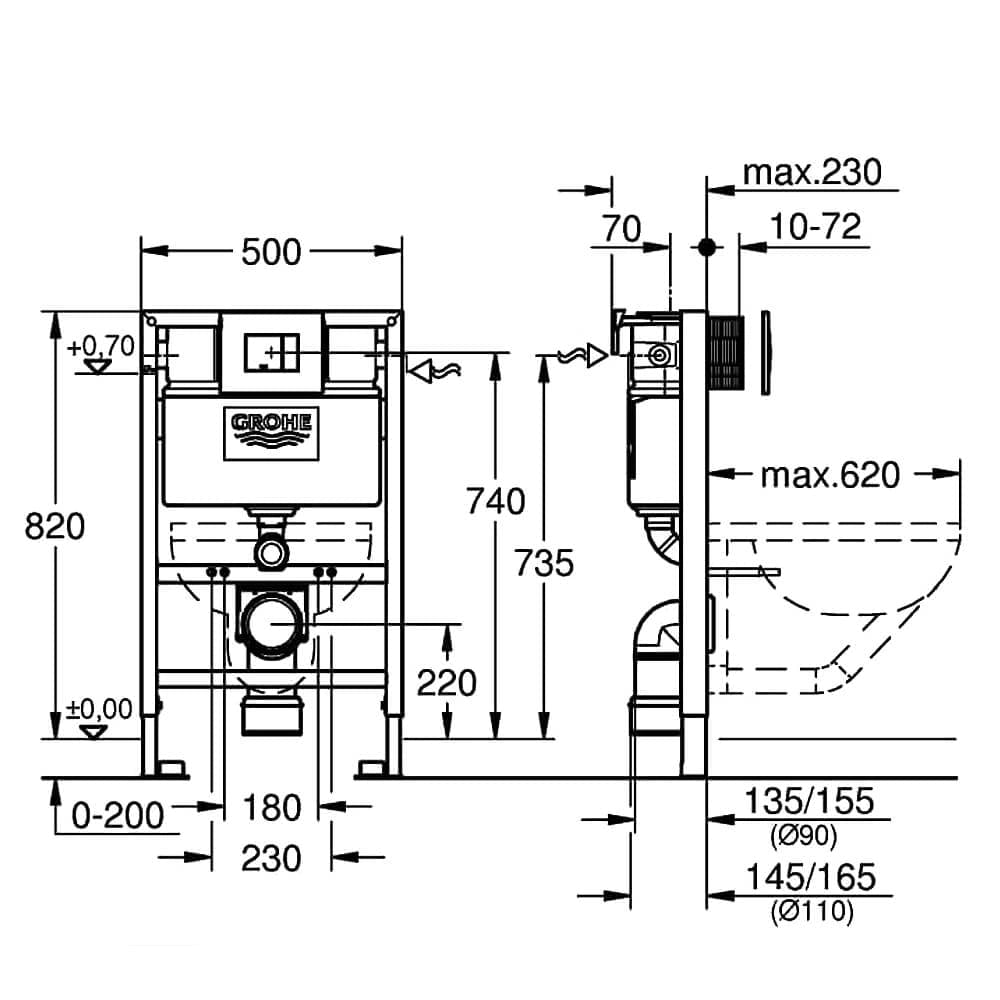

• Size Of Frame (mm): 500 x 820 (Width x Height)
• Size Of Frame (cm): 50 x 82 (Width x Height)
• Suitable for On-the-Wall Installations or studded Walls
• Powder Coated Steel Frame
• Self-Supporting for Dry-cladding
• Supplied with Fixed Connections
• Features Quick Adjustment, lockable
• Includes Fixing Material
• TUV Approved
• Supplied 2x WC Fixing Bolts, Fixing device for Ceramic
• Distance of Fixing Bolts: 180 mm / 230 mm
• PP Outlet Bend Ø90mm, reducer Ø90mm/110mm
• Depth Adjustable
• Inlet and Outlet Connecting Set

Features Of Dual Flush Cistern

• 6/3 Litre Flush Mechanism
• Pneumatic Discharge Valve Offering 3 Modes of Operation: Dual Flush or Start/Stop or Single Flush
• Front or Top Actuation
• Water Supply from Left/Right or Back
• Low Noise (Group I, According to German Noise Specification)
• Insulated Against Condensation
• 1/2 inch Water Supply Connection, Including Integrated Angle Valve and Push-Fit Flexible Hose Union
• Shortable Inspection Shaft incl. Protection During the Construction Phase

Features Of Skate Cosmopolitan Dual Flush Button Flush Plate - 38732000

• Size of Flush Plate (mm): 156 x 197 (Width x Height)
• Size of Flush Plate (cm): 156 x 197 (Width x Height)
• Suitable for Dual Flush or Start & Stop Actuation
• Ideal for Pneumatic Drop Valve AV1
• Suitable for Vertical and Horizontal Installation
• GROHE LongLife Chrome Finish
• GROHE EcoJoy - Less Water, Perfect Flow

Features Of Wall Brackets - 3855800M

• Suitable for On-the-Wall Installations
• Ideal for fixing the Elements on the brick-Wall or in Front of the studded Wall
• Steady Vertical Adjustment from 130 mm to 230 mm
• Cladding for Single or Series Installation
• Supplied in Pairs

Key Features

• Pack Includes:
• Rapid SL Frame with Dual Flush Cistern: 38526000
• Skate Cosmopolitan Dual Flush Button Flush Plate - 38732000
• Pair Of Wall Brackets: 3855800M
• 5-Year Warranty from the Manufacturer Against any Faulty Quality
