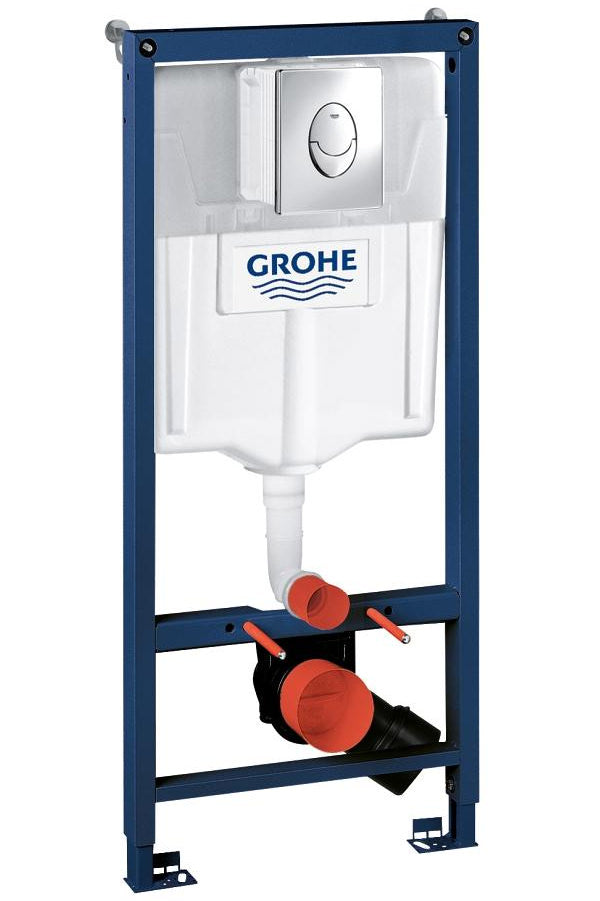

Grohe Rapid SL 3-in-1 Toilet Frame Set with Cistern and Shake Air Flush Plate - 500 x 1130mm

This 3-In-1 Frame Set for WC from Grohe's Rapid range will undoubtedly be one of your best investments. The product, radiant in tarnish-resistant chrome finish, enjoys five years warranty.

It features a self-supporting powder-coated steel frame that is suitable for both single and series installation. There is also a highly efficient cistern that can be connected to water supply from left, right or back. Yet another highlight of the pack is a wall plate that boasts dual flush actuation.

Product Information

• Manufacturing Code of this Product: 38721001
• Features of Rapid SL Frame with Dual Flush Cistern - 38528001

Features of Frame

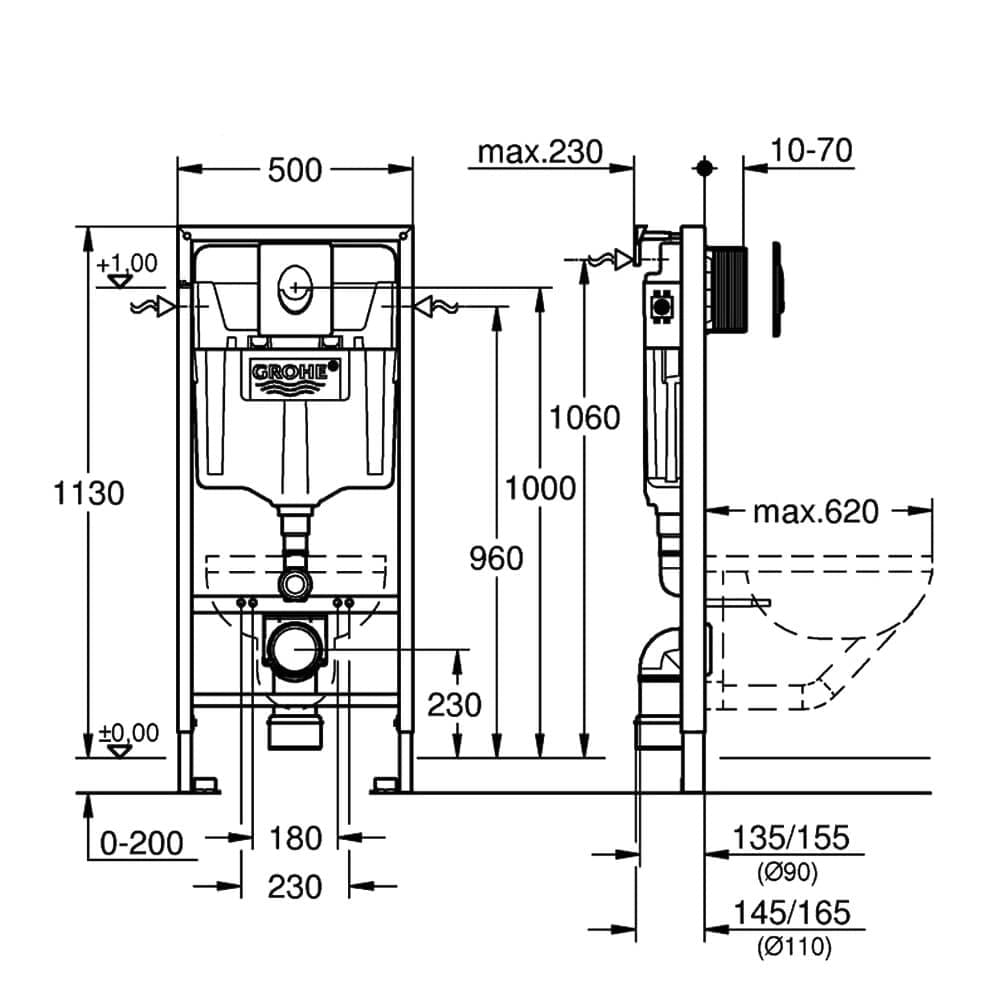

• Size (mm): 500 x 230 x 1130 (Width x Depth x Height)
• Size (cm): 50 x 23 x 113 (Width x Depth x Height)
• Suitable for on-the-Wall Installations or Studded Walls
• Powder-Coated Steel Frame
• Self-Supporting for Dry-Cladding
• Completely Pre-Assembled
• Supplied with Fixed Connections
• Features Quick Adjustment, Lockable
• Includes Fixing Material
• TUV Approved
• Supplied 2x WC Fixing Bolts, Fixing Device for Ceramic
• Distance of Fixing Bolts: 180 mm / 230 mm
• PP Outlet Bend: Ø90 mm
• Depth Adjustable Reducer Diameter: Ø90 / 100 mm
• Inlet and Outlet Connecting Set

Features of Dual Flush Cistern

• 6/3 Litre Flush Mechanism
• Pneumatic Discharge Valve Offering 3 Modes of Operation: Dual Flush or Start/Stop or Single Flush
• Front or Top Actuation
• Water Supply from Left / Right or Back
• Low Noise (Group I, According to German Noise Specification)
• Insulated Against Condensation
• 1/2 inch Water Supply Connection, Including Integrated Angle Valve and Push-Fit Flexible Hose Union
• Shortable Inspection Shaft incl. Protection During the Construction Phase

Features of Skate Air Dual Flush Button Flush Plate - 38505000

• Size (mm): 156 x 197 (Width x Height)
• Size (cm): 156 x 197 (Width x Height)
• Suitable for Dual Flush or Start & Stop Actuation
• Ideal for Pneumatic Drop Valve AV1
• Suitable for Vertical and Horizontal Installation
• GROHE LongLife Chrome Finish
• GROHE EcoJoy - Less Water, Perfect Flow

Features of Wall Brackets - 3855800M

• Suitable for On-the-Wall Installations
• Ideal for fixing the Elements on the brick-Wall or in Front of the studded Wall
• Steady Vertical Adjustment from 130 mm to 230 mm
• Cladding for Single or Series Installation
• Supplied in Pairs

Additional Size Information (mm)

Frame

• Width: 500 mm
• Height: 1130 mm

Key Features

• Pack Includes:
• Rapid SL Frame with Dual Flush Cistern: 38528001
• Skate Air Dual Flush Button Flush Plate - 38505000
• Pair Of Wall Brackets: 3855800M
• 5-Year Warranty from the Manufacturer Against any Manufacturing Defects
