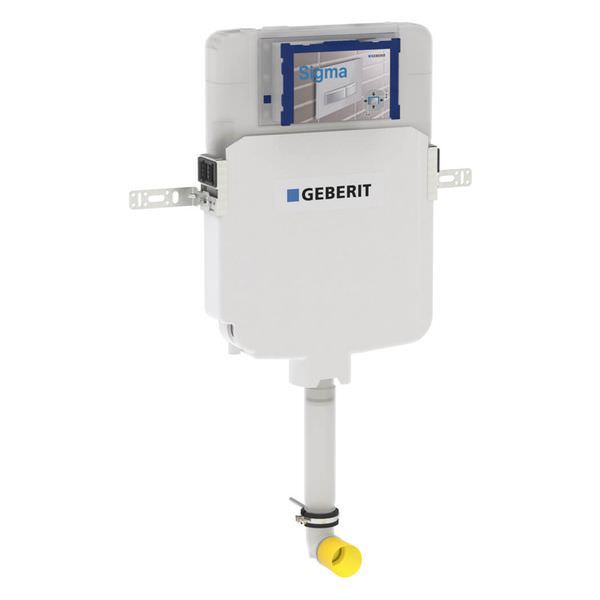

Geberit Sigma White Dual Flush Concealed Cistern UP720 - 3 and 5.8 Litres - 410 x 80 x 625mm

With its innovative system solutions in the fields of sanitary and piping systems, Geberit continuously sets new trends. These branded products are noted for high quality, longevity and easy installation.

This awe-inspiring cistern and fitting are made for the modern bathroom design, utilising wall hung technology or floor-standing WC. Geberit cisterns are ideal to fit snugly in any washroom and provide an economical flush solution, which is not only advantageous for the environment but cost-saving too.Making the bathroom space ever so hygienic and functional, this smart accessory has been manufactured by unmatched expertise and craftsmanship that ultimately form a complete bathroom solution. Suitable to use with floating toilets.

Manufactured by Geberit.

Product Specifications

• Manufacturing Code: 109.792.00.1
• Material: Plastic
• Finish: White
• Flush Type: Dual flush concealed cistern with front actuation
• Water Supply Connection: Top left
• Flush Volume (Factory Setting): 5.8 and 3 l
• Flush Volume Small Adjustment Range: 3–4 l
• Flow Pressure: 0.1–10 Bar
• Maximum Operating Water Temperature: 25°C
• Flush Bend: Fitted
• Insulation: Fully insulated against condensation
• Optional: Reinforced braided hose for Sigma 8cm concealed cistern

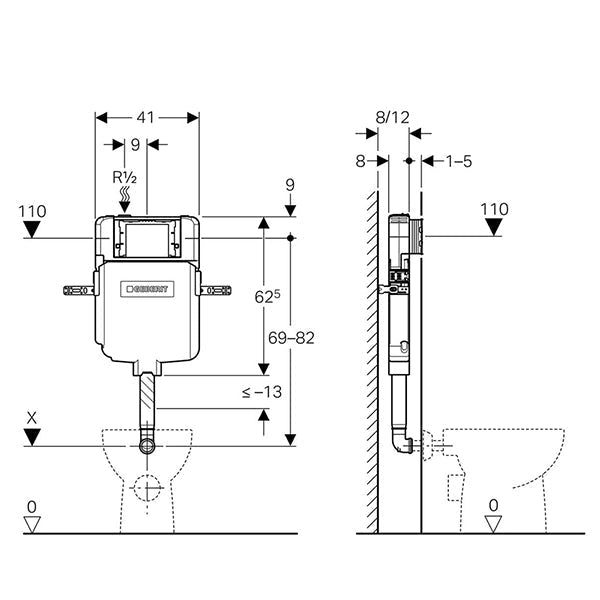

Dimensions

• Width: 410mm (41cm)
• Height (mm): Min 690 – Max 820
• Height (cm): Min 69 – Max 82

Info / Size (mm)

• Width: 410 mm

Key Features

• Material: Plastic
• Dual flush concealed cistern with front actuation
• Cistern fulfils standard requirements in accordance with EN-14055, Class-II
• Water supply connection on the top left
• Immediate post-flush possible with factory setting
• Tool-free installation and maintenance work on the concealed cistern
• Protection cover box for service opening protects against moisture and dirt

Application Purposes

• For floorstanding WCs
• For masonry walls
• For drywall construction
• For installation in part- or room-height pre-wall installations

Scope of Delivery

• Water supply connection Rp 1/2" – R 1/2", compatible with MF with integrated angle stop valve and hand-wheel
• Protection box for service opening
• Flush bend 90°
• Protection plug
• 2x fixing brackets
• Fastening for flush bend
• Cup for flush volume reduction 4.5 / 3 l
• Fastening material

Please Note:
Must be used with pans designed for low volume flush. Flush valve features settings to enable either a 6 l and 3 l flush or a 4.5 l and 3 l flush. The cistern can be operated with used water (rainwater) provided it is passed through a filter system first.
