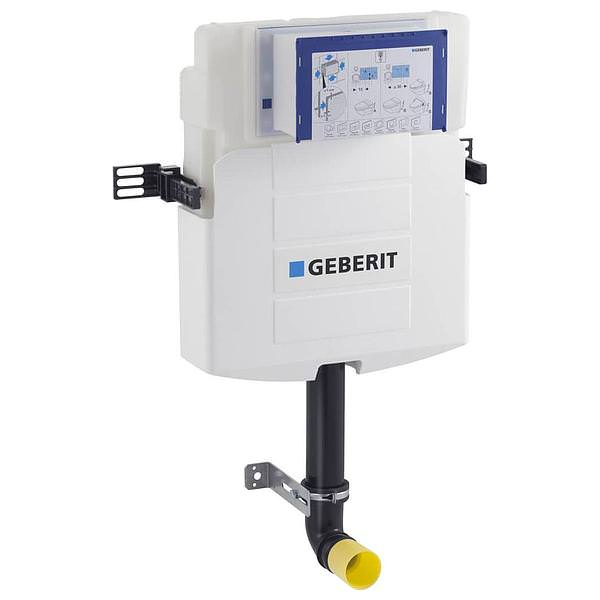

Geberit Sigma Dual Flush Concealed Cistern UP320 - 3 & 5.8 Litres - 570 x 1080mm

Geberit presents a convenient and enchantingly alluring Dual Flush WC Cistern. This white finished concealed cistern can be a splendid addition in bathrooms that prefer to save water.

The product is the answer to meet the demands and aspirations of the homeowners who would like to keep their bathrooms spic and span to heighten the style quotient of the space.This product is plastic with a flush bend and conveniently maintains a white finish. Smart features and outstanding reliability make this cistern the best value for money. Available at marginal cost from QS Supplies, this concealed cistern can be all yours instantly. Suitable to use with floating toilets.

Manufactured by Geberit.

Product Specifications

• Manufacturing Code: 109.309.00.5
• Finish: White
• Material: Plastic
• Width: 570mm (57cm)
• Height (mm): Min 635 – Max 720
• Height (cm): Min 63.5 – Max 72
• Depth: 160 mm
• Flush Type: Dual Flush
• Flush Volume (Factory Setting): 5.8 and 3 l
• Flush Volume Small Adjustment Range: 3–4 l
• Flow Pressure: 0.1–10 Bar
• Maximum Operating Water Temperature: 25°C
• Flush Bend: Fitted

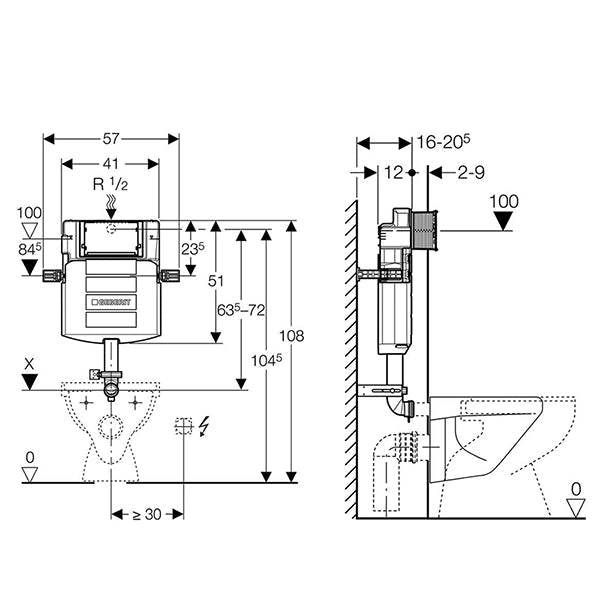

Dimensions (Info / Size – mm)

• Width: 570 mm
• Depth: 160 mm
• Height: 635 mm

Key Features

• Comes with flush bend fitted
• Cistern fulfils standard requirements in accordance with EN-14055, Class-II
• Immediate post-flush possible with factory setting
• Tool-free installation and maintenance work on the concealed cistern
• Protection cover box for service opening protects against moisture and dirt
• Protection box for service opening can be cut to length
• Comes in a white finish

Application Purposes

• For floor-standing WCs
• For drywall construction
• For installation in room-height installation walls
• For installation in part- or room-height pre-wall installations

Scope of Delivery

• Water supply connection Rp 1/2" – R 1/2", compatible with MF, with integrated angle stop valve and hand-wheel
• Flush bend 90°
• Protection plug
• 2x slotted flat irons
• 2x fixing brackets
• Fastening for flush bend
• Flush bend extension Ø45mm (4.5cm)
• Protection box for service opening
• Cup for flush volume reduction 4.0 / 2.6 l
• Fastening material
