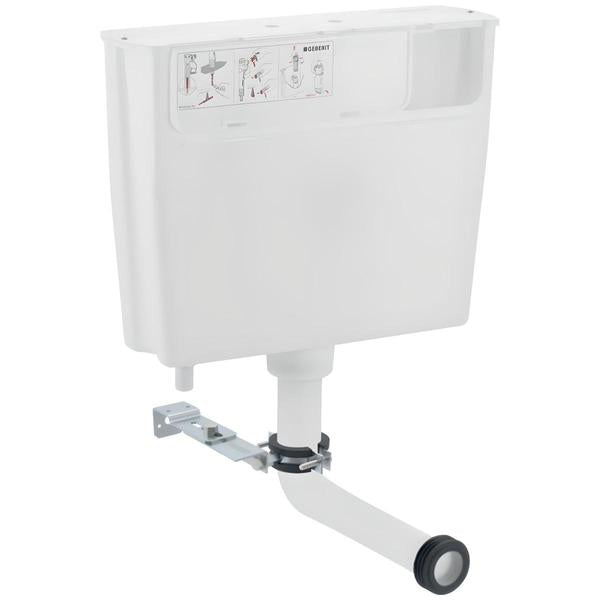

Geberit Pneumatic Actuation Furniture Cistern 5.8 Litres - Low Height - 464 x 132 x 355mm

The Geberit Low-Height Furniture Cistern with Pneumatic Actuation is suitable for use with single flush 6-litre units and is designed for installation within a set-up of modern bathroom furniture and floor-standing WCs.

Offering a water supply connection on the bottom left and a factory set flush volume of 5.8 litres, this product is compatible with all pneumatic actuators and comes with a 90-degree flush bend, and the fastening material required for both the bend and the original unit as well.

Manufactured by Geberit.

Product Specifications

• Manufacturing Code: 109.721.00.2
• Flush Type: Single flush (6 litres)
• Flush Volume (Factory Setting): 5.8 l
• Water Supply Connection: Bottom left
• Flow Pressure: 0.1–10 Bar
• Maximum Operating Water Temperature: 25°C
• Compatibility: All pneumatic actuators
• Compatible Flush Button: Optional

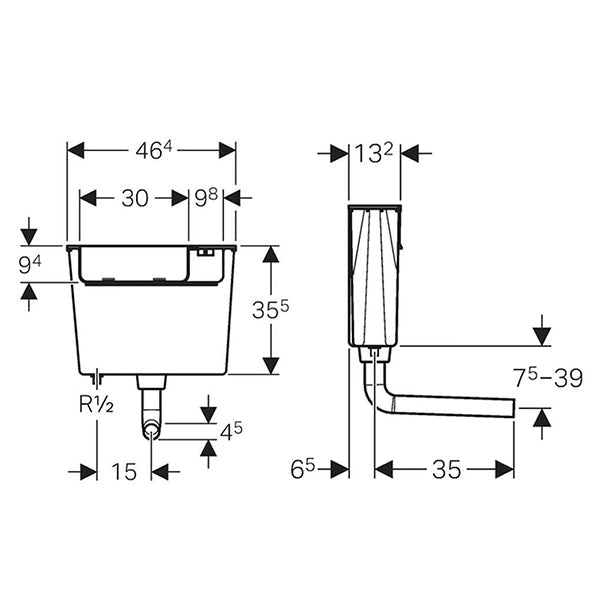

Dimensions

• Size (mm): 464 x 355 (Width x Height)
• Size (cm): 46.4 x 35.5 (Width x Height)

Info / Size (mm)

• Width: 464 mm
• Depth: 132 mm
• Height: 355 mm

Application Purpose

• For installation in bathroom furniture
• For floorstanding WCs

Scope of Delivery

• Flush bend 90°
• Fastening for flush bend
• Fastening material

Key Features

• Comes with pneumatic flush actuation
• Cistern fulfils standard requirements in accordance with EN-14055, Class-II
• Water supply connection on the bottom left
• Suitable for single flush (6 litres) only
