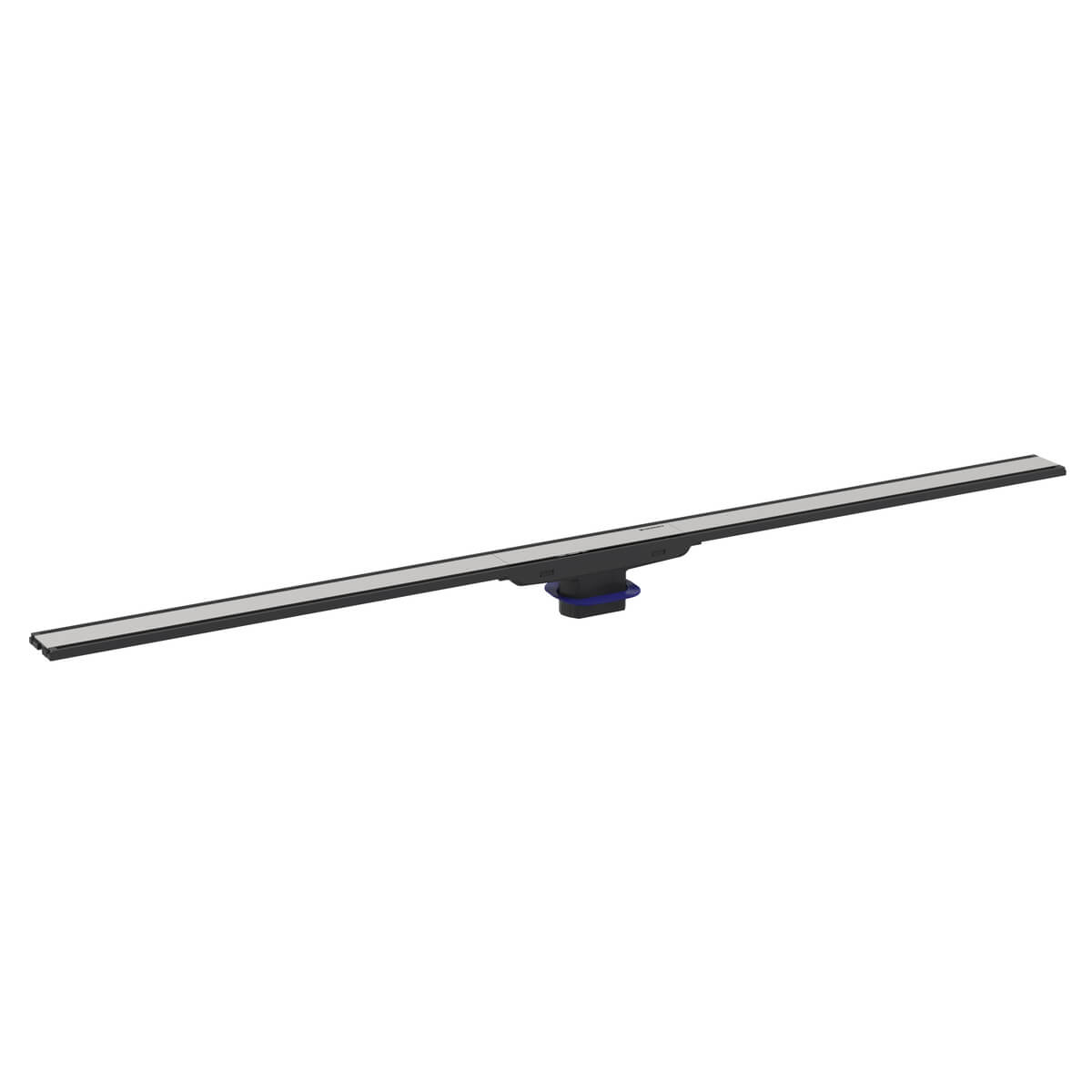

Geberit CleanLine60 Shower Channel

The Geberit CleanLine60 Shower Channel is available in two possible size lengths to choose from and can easily be cut to any length required for installation. Crafted from strong and durable stainless-steel material, this unit can be aligned in height, inclination and offset.

Quality monitored in accordance with EN 1253-3; this model is both easy to clean and allows fast and efficient drainage within floor-even shower set-ups. Designed with an inlet connection piece with a compensation ring as well as 2 pluggable end pieces, this unit also comes with a suction cup and a comb insert.

Key Features

• Easy to Clean
• Surface: Stainless Steel Brushed
• Quality monitoring in accordance with EN-1253-3
• 1-Year Guarantee from Geberit against Manufacturing Defects
• Choice of Lengths: 900mm and 1300mm (Optional)
• Choice of Finishes: Polished Metal And Brushed Metal, Dark Metal And Brushed Metal, Thin Flooring Customisation (Optional)
• The Shower Channel can be Cut to Length
• Tile Structure Floor 8-35mm (0.8 - 3.5cm)
• Tile Structure Floor 4-30mm (0.4 - 3cm) for thin flooring customisation
• The Shower Channel can be aligned in Height, inclination and Offset
• Water Drainage Above the composite Seal
• Installation Set for Shower Channel (Optional)
• Shower Channel tile Bearing (Optional)
• Cover Shower Channel (Optional)

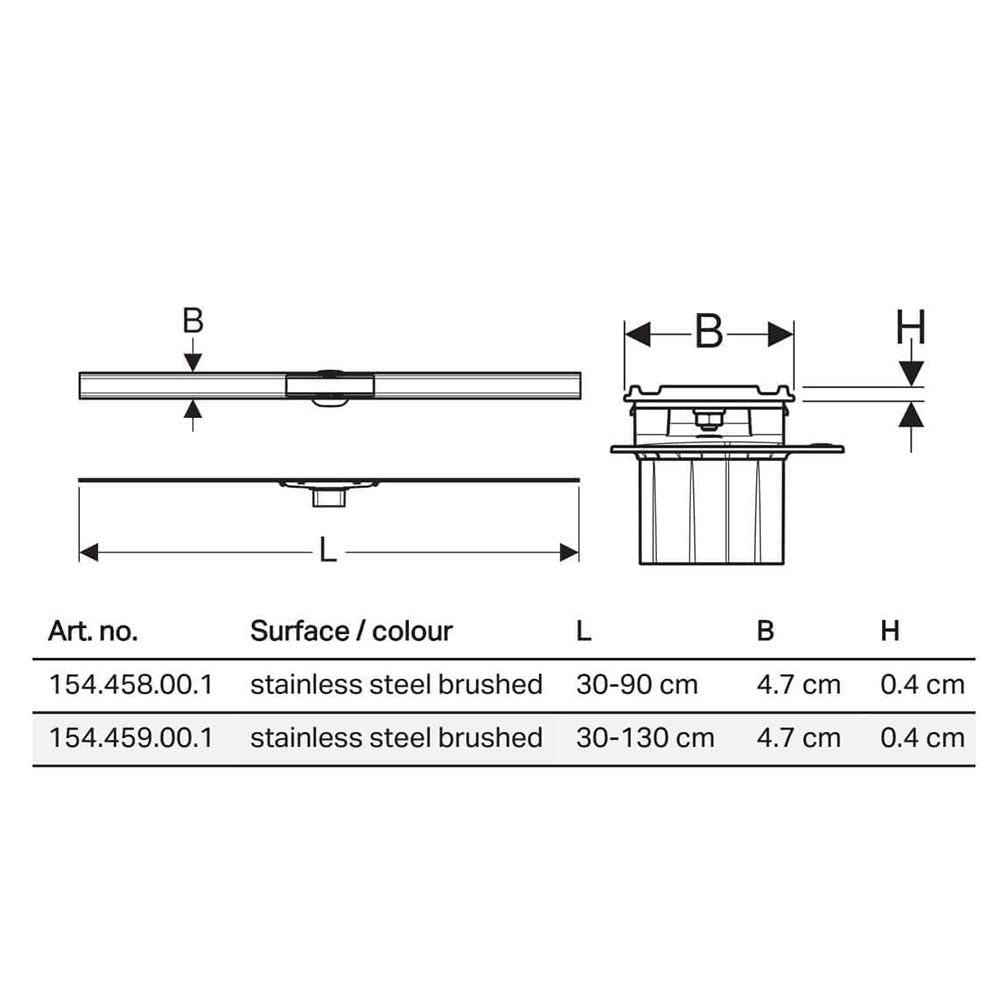

• Refer Technical Drawing for More Technical specification
• Download the Installation and Maintenance Manual PDF from the Additional Info & Download Section

Application Purposes

• For Drainage of Floor-Even Showers
• For Installation in the Room or On the Wall
• For Installation in thin-bed mortar
• For composite seals

Scope Of Delivery

• Comb Insert
• Inlet Connection piece with compensation ring
• Two End Pieces, pluggable
• Suction cup

Product Dimensions (mm)

• Width: 900 mm
• Depth: 43 mm
• Height: 8 mm
