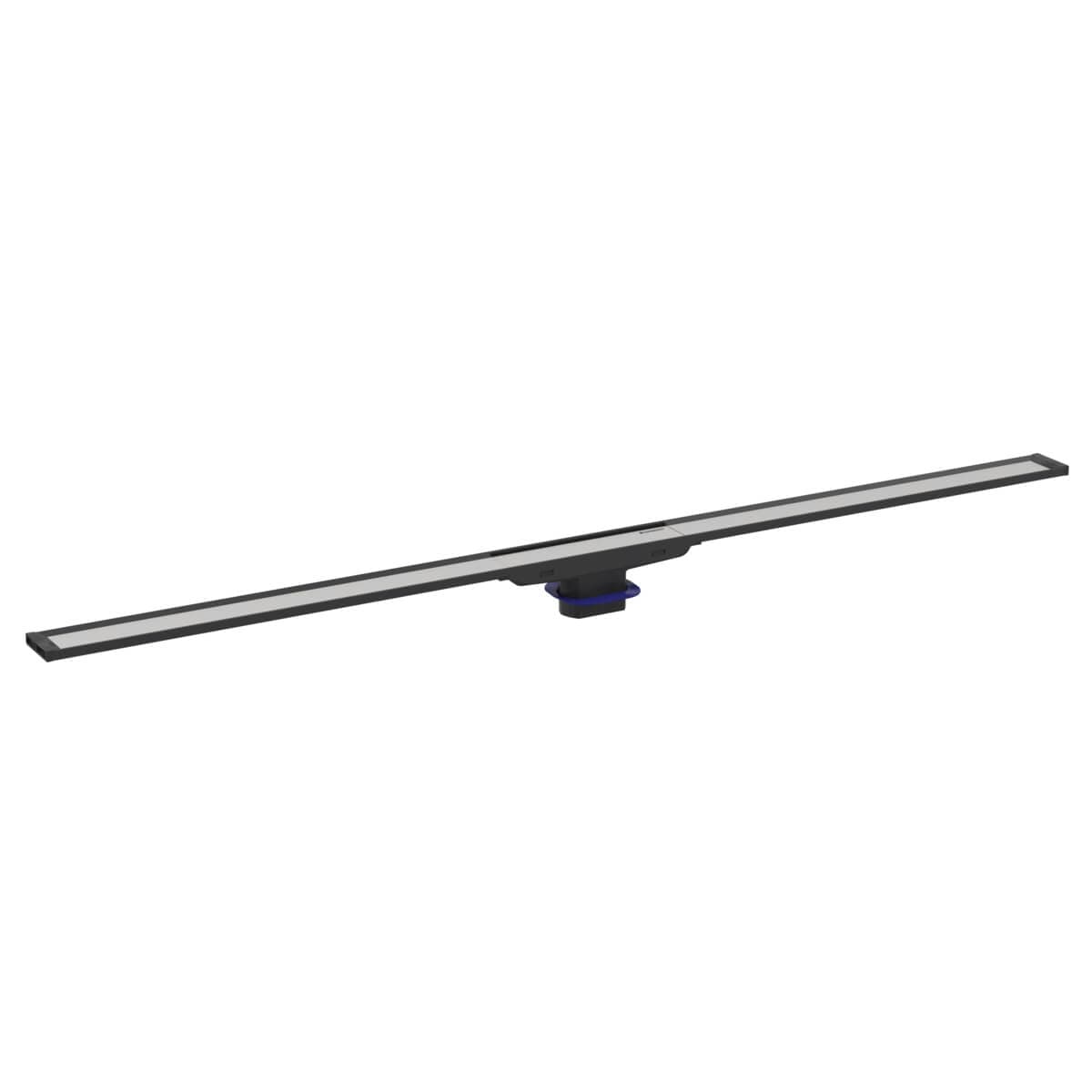

Geberit CleanLine20 Shower Channel

The Geberit CleanLine20 Shower Channel is available in two sizes and lengths and can easily be cut to length to fit the area required for installation. Easy to clean and crafted from strong and smooth stainless-steel material, this unit can be aligned for inclusion in several different ways: via height, inclination, and offset.

It can be used as a comb insert, inlet connection piece with a compensation ring, 2 pluggable end pieces, and a suction cup, and is created for installation in the room or on the wall, in a thin-bed mortar floor-even showers for effective drainage. This brand new shower channel complements well with a square or rectangular shower tray.

Key Features

• Easy-To-Clean
• Material: Stainless Steel
• Surface: Stainless Steel Brushed
• Quality Monitoring in Accordance with EN-1253-3
• Choice of Finishes: Dark Metal and Brush Metal and Polished Metal and Brush Metal
• Choice of Length: 900mm and 1300mm
• The Shower Channel can be Cut to Length
• Tile Structure Floor 8-35mm (0.8 - 3.5cm)
• The Shower Channel can be Aligned in Height, Inclination and Offset
• Water Drainage Above the Composite Seal
• Installation Set for Shower Channel (Optional)
• Shower Channel Tile Bearing (Optional)
• Cover Shower Channel (Optional)

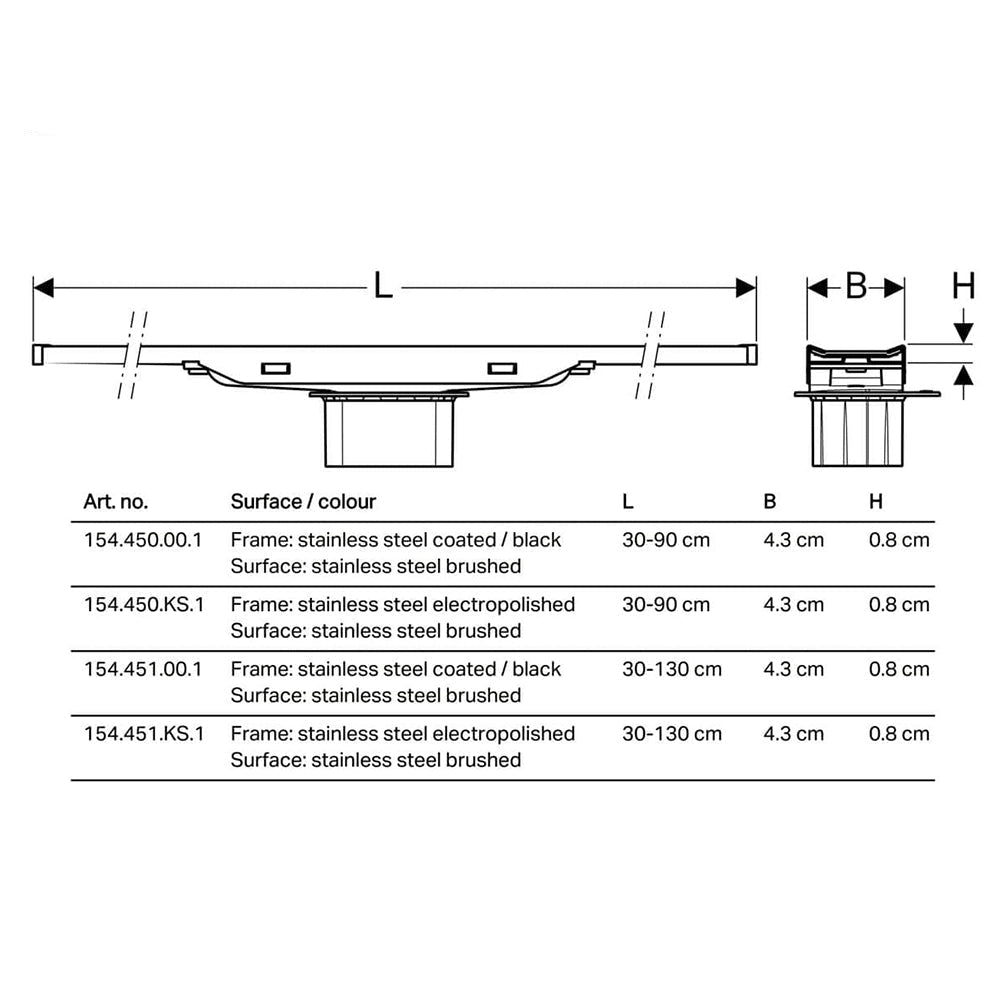

• Refer to the Technical Drawing for Size Details
• Download Installation and Maintenance Manual PDF Files from the Additional Info Section

Product Dimensions

• Size (mm): 43 x 8 (Depth x Height)
• Size (cm): 4.3 x 0.8 (Depth x Height)

Application Purposes

• For Drainage of Floor-Even Showers
• For Installation in the Room or On the Wall
• For Installation in thin-bed Mortar
• For Composite Seals

Scope of Delivery

• Comb Insert
• Inlet Connection Piece with Compensation Ring
• 2 End Pieces, Pluggable
• Suction Cup

Additional Size Information (mm)

• Width: 900 mm
• Depth: 43 mm
• Height: 8 mm
