Geberit Alpha Concealed Cistern with Flush Plate and Selnova Back To Wall Rimless Toilet

The Geberit Alpha Concealed Cistern 5.8/3 Litres with Dual Flush Plate and Selnova Back-to-Wall Rimless Toilet with Soft-Close Seat is a complete 3-in-1 toilet system designed for modern bathrooms.

It includes a concealed cistern, rimless back-to-wall WC pan, soft-close seat, and Alpha01 dual flush plate for efficient water usage and seamless installation.

Manufacturing Details

• Manufacturing Code: 118.363.21.2
• Product Type: 3-In-1 Floor-Standing Toilet Pack

Technical Specifications

• Flow Pressure: 0.1–10 Bar
• Maximum Water Temperature: 25°C
• Factory Flush Volume: 5.8 / 3 Litres
• Large Flush Adjustment Range: 4 / 4.5 / 6 / 7.5 Litres
• Small Flush Adjustment Range: 2–4 Litres
• Standard: EN 14055, Class II

Application Purposes

• For Masonry Walls
• For Part or Room-Height Prewall Installations
• For Room-Height Installation Walls

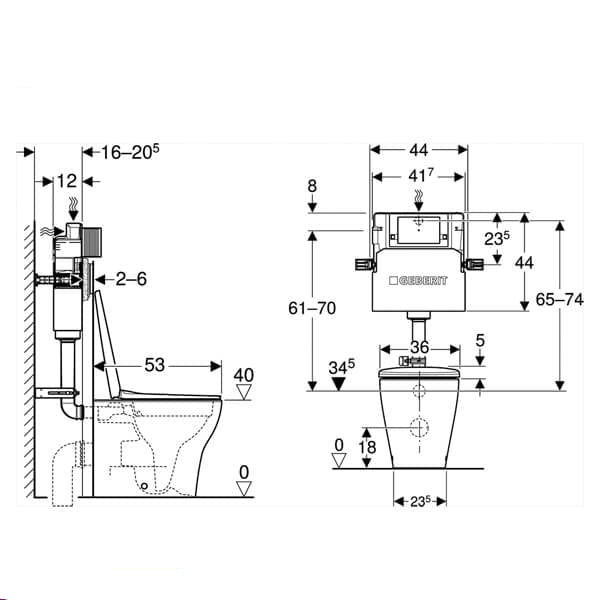

Alpha Concealed Cistern Details

• Installation Height: 109cm
• Depth: Adjustable
• Insulation: Fully Insulated Against Condensation (12cm)
• Actuation: Front Actuation, Dual Flush
• Post-Flush: Immediate Post-Flush Possible
• Flush Bend: Fitted
• Water Supply Connection: Rear or Top Centre

• Service Opening Protection Box:

  • Cut to Length

  • Protects Against Moisture and Dirt

Selnova Back-to-Wall Toilet Details

• Seat Size

• • Width: 355mm (35.5cm)

  • Height: 400mm (40cm)

• Projection: 530mm (53cm)
• Finish: White
• WC Type: Shrouded Washdown
• Flush Technology: Rimfree (Rimless)
• Installation Type: Floor-Standing Back-to-Wall
• Flush Standard: EN 997
• Full Flush Volume: 6 / 5 / 4 Litres
• Flush Volume: 4 Litres
• Outlet Type: Horizontal / Vertical
• Fixing: Hidden Fastening
• Material: Vitreous China

Selnova Soft-Close Seat Details

• Size:

• • Width: 360mm (36cm)

  • Depth: 450mm (45cm)

  • Height: 50mm (5cm)

• Finish: Gloss White
• Mechanism: Soft-Closing & Quick-Release
• WC Lid: Overlapping
• Fixing: Fastening from Above
• Hinge Material: Stainless Steel
• Seat Material: Duroplast

Alpha01 Dual Flush Plate Details

• Finish: Gloss Chrome
• Size:

• • Width: 213mm (21.3cm)

  • Height: 142mm (14.2cm)

• Thickness: 16mm (1.6cm)
• Flush Type: Dual Flush
• Material: Plastic
• Buttons: Round Shape
• Actuation Force: Max. 20 N

Scope of Delivery

• Flush Bend 90°
• Protection Plug
• 2 × Distance Bolts
• 2 × Fixing Brackets
• Fastening Material
• Fastening for Flush Bend
• Flush Bend Extension Ø45mm
• Alpha01 Dual Flush Plate (Round Buttons)
• Polystyrene Protection Box for Service Opening
• Water Supply Connection Unit R 1/2"
• Integrated Angle Stop Valve
• Adapter Ring

Included Set

• Geberit Alpha Concealed Cistern
• Selnova Rimless Back-to-Wall WC Pan
• Soft-Close Duroplast Seat
• Alpha01 Dual Flush Plate
• Complete Installation Accessories
