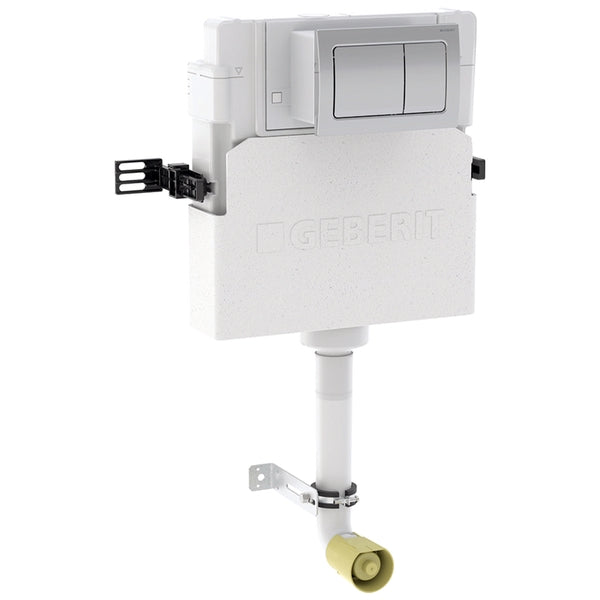

Geberit Alpha Concealed Cistern with Dual Flush Plate - 3 and 5.8 Litres - 440 x 395mm

The Geberit Alpha 12cm Concealed Cistern offers a modern and practical solution for contemporary bathrooms. It is suitable for use with both floor-standing and wall-hung WCs and features a dual flush control plate.

Manufactured from durable plastic, this cistern comes in a white finish with a gloss chrome flush plate, available in round or square options. It is fully insulated against condensation and designed to support water-saving dual flush operation.

Key Features

✔ Cistern with flush plate
✔ Suitable for dual flush with top or front actuation
✔ Water supply connection on left or rear left
✔ Complies with EN 14055, Class II standards
✔ Choice of flush plate: Square or Round buttons
✔ White cistern finish
✔ Gloss chrome flush plate

Technical Specifications

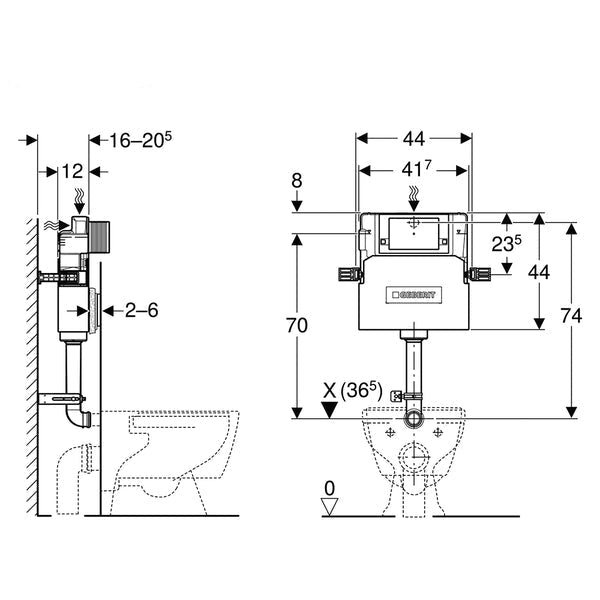

• Size (mm): 440 x 120 x 395 [Width x Depth x Height]
• Size (cm): 44 x 12 x 39.5 [Width x Depth x Height]
• Material: Plastic
• Flow Pressure: 0.1–10 Bar
• Maximum Water Temperature: 25°C
• Flush Volume (Factory Setting): 5.8L / 3L
• Small Flush Adjustment Range: 3–4L
• Installation Height: 82cm

Installation & Compatibility

• Welded flush bend
• Adjustable depth
• Suitable for floor-standing and wall-hung WCs
• Can be used in masonry walls
• Suitable for part-height prewall installations
• Fully insulated against condensation
• Immediate post-flush possible (factory setting)

Protection & Maintenance

• Protection box for service opening
• Protects against moisture and dirt
• Can be cut to length

Scope of Delivery

• Protection Plug
• 2 × Fixing Brackets
• Fastening Material
• Flush Bend Extension: Ø45mm
• Alpha01 Flush Plate (Square or Round Button)
• Protection Box for Service Opening
• Geberit Pull Disc for Type 212 Flush Valve (Omega 82cm)
• Water Supply Connection R 1/2"
• Integrated Angle Stop Valve and Hand Wheel
• Compatible with MasterFix and MeplaFix
