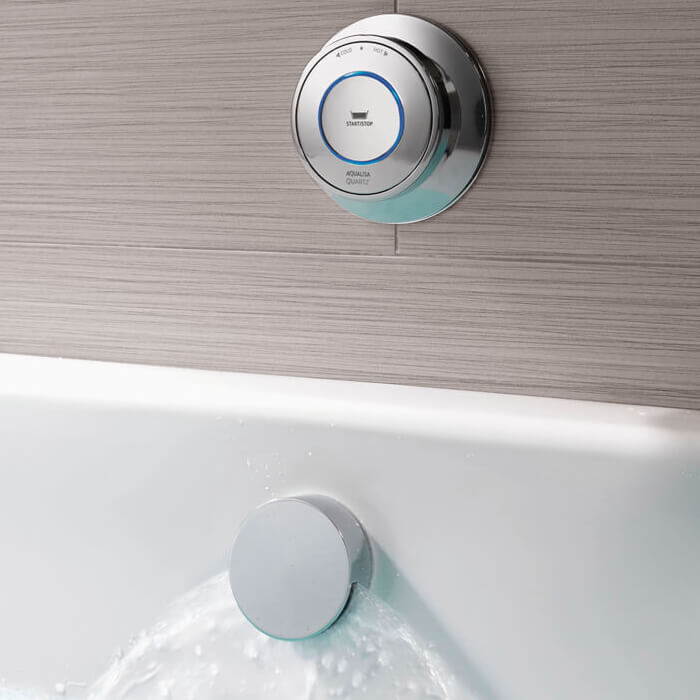

Aqualisa Quartz Classic Smart Digital Bath Filler With Overflow

Aqualisa introduces the Quartz Classic Smart Digital Bath Filler with Overflow, designed to suit both modern and traditional bathrooms. Manufactured from high-grade materials, this unit delivers reliable and long-lasting performance. It is suitable for use with combination boilers and high-pressure water systems and is backed by manufacturer guarantees.

Product Specifications

• Single Outlet Concealed Digital Bath Valve
• Thermostatically Controlled Showering with Push-Button One-Start Control
• LED Display for Temperature Indication
• Optional Eco Mode (Up to 33% Water Saving)
• Choice of Variants: HP (Combi), Gravity Pump
• WiFi, Mobile App, Google Home, and Amazon Alexa Enabled
• Multiple Showers Controlled from One App
• Compatible with Wired Remote Control

Guarantee

• 5-Year Guarantee for Valve
• 2-Year Guarantee for Kit

Controller Details

• Controller Size (mm): 120 x 40 x 120 (Width x Depth x Height)
• Controller Size (cm): 12 x 4 x 12 (Width x Depth x Height)

Technical Specifications

• Inlet and Outlet Connections: 15mm (Push-Fit)
• Water Supply Temperature: 5°C Min / 65°C Max
• Electrical Requirement: 240V
• Cable and Water Entry Point: Rear

High-Pressure Combi System

• Suitable for High-Pressure Water Systems
• Minimum Pressure: 1 Bar
• Maximum Pressure: 7 Bar
• Flow Rate: 8–16 LPM

Gravity Pumped System

• Integral Pump Included
• Suitable for Low-Pressure Water Systems
• Minimum Pressure: 0.1 Bar
• Maximum Pressure: 1 Bar
• Flow Rate: 10–16 LPM
