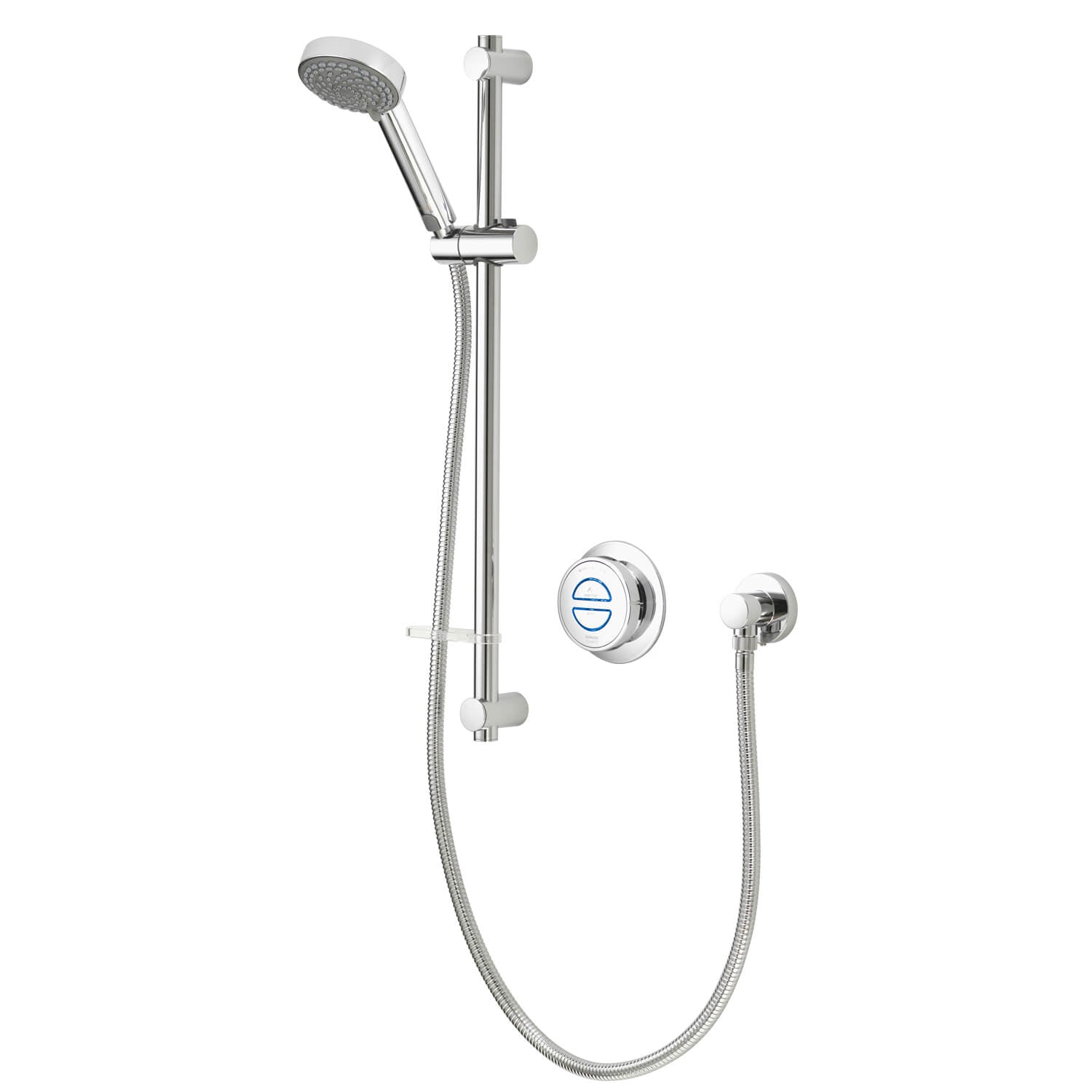

Aqualisa Quartz Classic Smart Concealed Shower With Slide Rail Kit

Quartz Classic Smart Concealed Shower with Slide Rail Kit is designed for a modern showering experience. Supplied with a 105mm Harmony handset featuring four spray patterns, it delivers versatile performance. The shower is thermostatically controlled with a push-button one-start control and is available for High-Pressure Combi or Gravity Pumped systems.

The rail kit is manufactured from high-quality material and includes a Boost button for enhanced performance. It features an LED display to indicate when the selected temperature is reached and is enabled with WiFi, Mobile App, Google Home, and Amazon Alexa compatibility for remote control.

Key Features

• Guarantee: 5-Year for Valve and 2-Year for Kit
• Thermostatically Controlled with Push-Button One-Start
• LED Temperature Display
• Optional Eco Mode (Up to 33% Water Saving)
• Choice of Variants: HP (Combi), Gravity Pump
• Boost Button for Powerful Performance
• WiFi, Mobile App, Google Home, and Amazon Alexa Enabled
• Multiple Showers Controlled from One App
• Timer Function (In-App)
• Online Water Management Dashboard

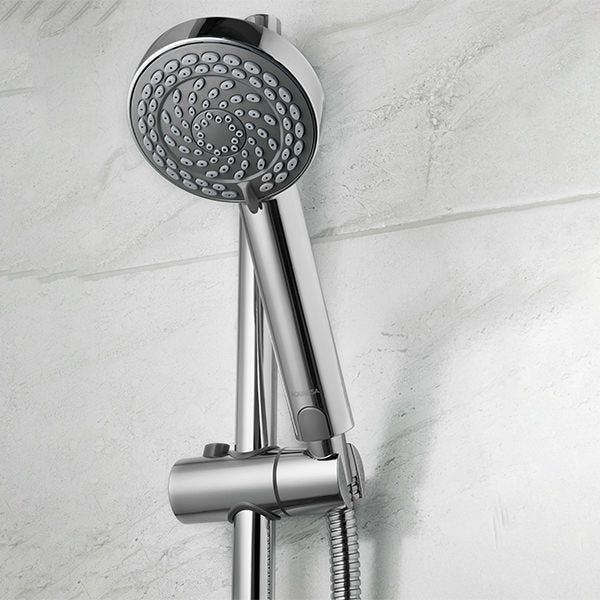

• Supplied with 105mm Harmony Handset (4 Spray Patterns: Inner, Middle, Outer, Eco)
• Eco Setting on Shower Head (Up to 25% Water Saving)
• Compatible with Wired Remote Control
• 1500mm Metal Hose Included

Technical Specifications

• Rail Size: 700 x 25mm (Height x Width)
• Controller Unit Size (mm): 120 x 40 x 120 (Width x Depth x Height)
• Inlet and Outlet Connections: 15mm Compression
• Water Supply Temperature: 5°C Min / 65°C Max
• Electrical Requirement: 240V
• Cable and Water Entry Point: Rear

High-Pressure Combi System

• Suitable for High-Pressure Water Systems
• Minimum Pressure: 1 Bar
• Maximum Pressure: 7 Bar
• Flow Rate: 8–16 LPM

Gravity Pumped System

• Integral Pump Included
• Suitable for Low-Pressure Water Systems
• Minimum Pressure: 0.1 Bar
• Maximum Pressure: 1 Bar
• Flow Rate: 10–16 LPM
